Inngangur
Thank you for choosing the Technics EAH-AZ60M2 Wireless in-Ear Noise-Cancelling Headphones. This manual provides essential information for the proper setup, operation, and maintenance of your new headphones. Please read this manual thoroughly before use to ensure optimal performance and longevity of the product.
Image: The Technics EAH-AZ60M2 wireless in-ear headphones, shown alongside their compact black charging case.
Hvað er í kassanum
Upon opening the packaging, please verify that all the following components are included:
- Technics EAH-AZ60M2 Wireless In-Ear Noise-Cancelling Headphones (Left and Right earbuds)
- Hleðslutaska
- USB-C hleðslusnúra
- Multiple sizes of Earpieces (7 pairs)
- Notendahandbók (þetta skjal)

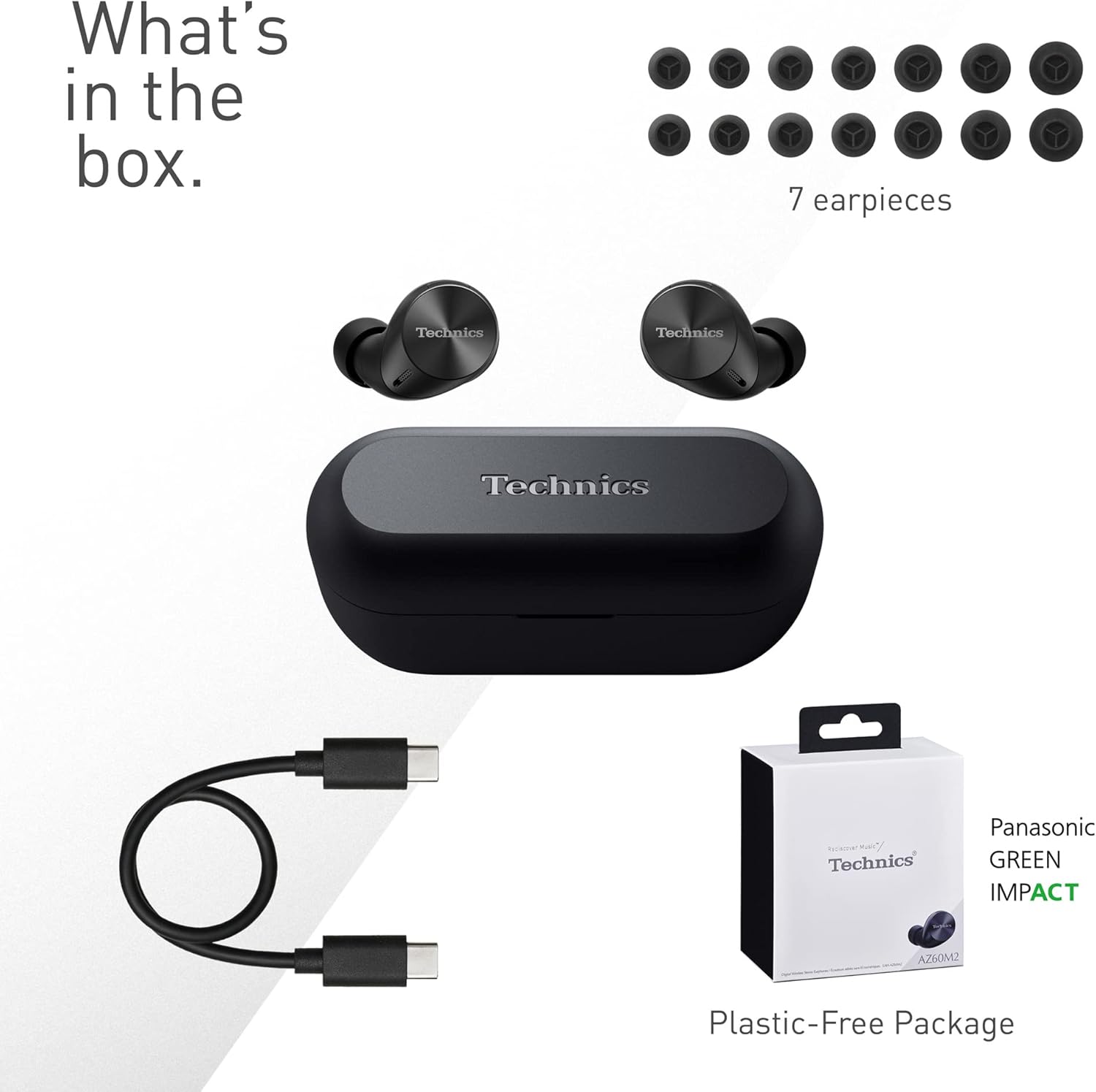

Image: A visual representation of the items included in the product packaging: the two earbuds, the charging case, a USB-C charging cable, and a selection of seven different earpiece sizes.
Uppsetning
Upphafleg hleðsla
Áður en heyrnartólin eru notuð í fyrsta skipti skal hlaða þau að fullu og hleðsluhulstrið.
- Settu báðar heyrnartólin í hleðslutöskuna.
- Tengdu USB-C hleðslusnúruna við hleðslutengið á hulstrinu og við USB-aflgjafa.
- The indicator lights on the case will show charging status. A full charge typically takes approximately 2.5 hours for the case and earbuds.
Pörun við tæki
The EAH-AZ60M2 headphones use Bluetooth for wireless connection.
- Opnaðu hleðsluhulstrið með eyrnatólunum inni í því. Eyrnatólin fara sjálfkrafa í pörunarstillingu.
- Virkjaðu Bluetooth í tækinu þínu (snjallsíma, spjaldtölvu, tölvu) og leitaðu að tiltækum tækjum.
- Select "EAH-AZ60M2" from the list of found devices.
- Once connected, a confirmation sound will play from the headphones.
Technics Audio Connect app
For enhanced control and customization, download the "Technics Audio Connect" app from your device's app store (Google Play for Android 6.0+ or App Store for iOS 12+). The app allows you to:
- Athugaðu rafhlöðustig.
- Select EQ sound modes.
- Stilltu hávaðadeyfingarstig.
- Customize touch sensor functions.
- Framkvæma uppfærslur á vélbúnaði.
Notkunarleiðbeiningar
Að vera með heyrnartólin
Select the earpieces that provide the most comfortable and secure fit for optimal sound quality and noise cancellation. The app can assist in finding the best fit. Insert the earbuds gently into your ears and rotate them slightly to ensure a snug seal.
Image: A person wearing the Technics EAH-AZ60M2 headphones, illustrating their comfortable, low-profile design. The image also displays the wide range of eartip sizes available for a customized fit.
Snertistýringar
The headphones feature touch-sensitive panels on each earbud for controlling playback, calls, and noise modes. Functions can be customized via the Technics Audio Connect App.
| Aðgerð | Vinstri heyrnartól | Hægri heyrnartól |
|---|---|---|
| Einn smellur | Spila / gera hlé, svara símtali | Spila / gera hlé, svara símtali |
| Bankaðu tvisvar | Sleppa braut áfram | Hljóðstyrkur upp |
| Þrífaldur tappa | Slepptu laginu afturábak | Hljóðstyrkur niður |
| Langpressa | Toggle Noise Cancelling/Ambient Mode | Raddaðstoðarmaður |
Hávaðastýringarstillingar
The EAH-AZ60M2 features Dual Hybrid Active Noise Cancelling for immersive listening and Ambient Sound Modes for situational awareness.
- Active Noise Cancelling (ANC): Minnkar utanaðkomandi hávaða fyrir einbeittan hlustunarhraða.
- Natural Ambient Mode: Allows you to hear surrounding sounds naturally.
- Attention Mode: Focuses on human voices, making it easier to hear announcements or conversations without removing the headphones.
Toggle between these modes by long-pressing the left earbud's touch sensor, or adjust settings precisely using the Technics Audio Connect App.
Image: A close-up of a single Technics EAH-AZ60M2 earbud, highlighting its key audio features including Hi-Res Audio Wireless support, LDAC compatibility, 8mm drivers, and Noise Cancelling capabilities.
Fjölpunktatenging
The headphones support multipoint connection, allowing simultaneous pairing with up to three devices (e.g., a smartphone, tablet, and PC). This enables seamless switching between audio sources without re-pairing.
- To switch audio, simply play content on the desired device. The headphones will automatically connect to the active audio source.
- Note: LDAC playback is not possible when connected to three devices simultaneously.
Image: A person sitting at a desk, demonstrating the smart 3-device switching feature of the Technics EAH-AZ60M2 headphones, with connection lines illustrating simultaneous pairing to a smartphone, tablet, and laptop.
Making and Receiving Calls (JustMyVoice Technology)
The EAH-AZ60M2 incorporates JustMyVoice Technology, utilizing 8 separate microphones and advanced wind noise reduction to isolate and amplify your speech while minimizing background noise during calls.
- Svara símtali: Ýttu einu sinni á annan hvorn eyrnatólinn.
- Ljúka símtali: Ýttu einu sinni á annan hvorn eyrnatólinn meðan á símtali stendur.
- Hafna símtali: Ýttu lengi á annan hvorn eyrnatólinn.
- Single Earphone Use: You can use one earbud independently while the other is charging or stored.
Image: A person outdoors, demonstrating the JustMyVoice Technology feature of the Technics EAH-AZ60M2 headphones, with visual cues indicating sound pickup and voice isolation.
Hleðsla og endingartími rafhlöðu
The EAH-AZ60M2 headphones offer extended listening times with the included charging case.
- Rafhlöðuending heyrnartóla: Up to 7 hours of playback with Active Noise Cancelling (ANC) enabled.
- Heildarspilun með hulstri: Up to 24 hours of total playback time with multiple charges from the case.
- Hraðhleðsla: A 15-minute quick charge provides approximately 70 minutes of playback.
Qi þráðlaus hleðsla
The charging case supports Qi wireless charging. Simply place the case on a compatible Qi wireless charger (sold separately) to charge.
Image: An illustration depicting the battery life of the Technics EAH-AZ60M2 headphones, showing 7 hours of listening time for the earbuds and an additional 24 hours of backup with the charging case.
Viðhald
Þrif
- Regularly clean the earbuds, especially the earpieces and mesh grilles, with a soft, dry, lint-free cloth.
- Remove earpieces and clean them with mild soap and water if necessary, ensuring they are completely dry before reattaching.
- Hreinsið hleðslutengurnar bæði á eyrnatólunum og inni í hulstrinu með þurrum bómullarpinna.
- Notið ekki slípiefni, alkóhól eða leysiefni.
Vatnsþol
The EAH-AZ60M2 earbuds are IPX4 water resistant, meaning they are protected against splashing water from any direction. This makes them suitable for light rain or intensive workouts.
- Hleðslutaska er ekki vatnsheld.
- Ekki setja eyrnatólin í vatn.
- Ensure earbuds are dry before placing them back into the charging case.
Geymsla
Þegar heyrnartólin eru ekki í notkun skal geyma þau í hleðslutöskunni til að vernda þau og halda þeim hlaðnum. Geymið á köldum, þurrum stað fjarri beinu sólarljósi og miklum hita.
Úrræðaleit
| Vandamál | Möguleg orsök | Lausn |
|---|---|---|
| Ekkert hljóð úr heyrnartólum. | Headphones not paired or connected. Low battery. Volume too low. | Ensure headphones are paired and connected to your device. Charge headphones. Increase volume on both headphones and device. |
| Cannot pair headphones. | Headphones not in pairing mode. Device Bluetooth off. Interference. | Ensure earbuds are in the case and lid is open to enter pairing mode. Turn device Bluetooth off and on. Move closer to device. Forget device and re-pair. |
| Hávaðadeyfing virkar ekki. | Poor earbud fit. ANC mode not active. | Try different earpiece sizes for a better seal. Ensure ANC is enabled via touch control or app. |
| Gæði símtala eru léleg. | Environmental noise. Single earbud use. | Ensure both earbuds are used for optimal call quality. Move to a quieter environment. |
| Heyrnartól hlaðast ekki. | Poor contact. Faulty cable/charger. | Ensure earbuds are correctly seated in the case. Clean charging contacts. Try a different USB-C cable or power source. |
For further assistance, refer to the Technics Audio Connect App or visit the official Technics support websíða.
Tæknilýsing
| Eiginleiki | Smáatriði |
|---|---|
| Nafn líkans | EAH-AZ60M2 |
| Tegundarnúmer vöru | EAH-AZ60M2EK |
| Vörumerki | Tækni |
| Litur | Svartur |
| Tengitækni | Þráðlaust (Bluetooth) |
| Form Factor | In-Ear |
| Hávaðastýring | Active Noise Cancellation (Dual Hybrid) |
| Stærð bílstjóra | 8 mm |
| Hljóðnemar | 8 (for JustMyVoice Technology) |
| Fjölpunktatenging | Allt að 3 tæki |
| Vatnsþol | IPX4 (aðeins heyrnartól) |
| Rafhlöðuending eyrnatóla (ANC kveikt) | Allt að 7 klst |
| Total Battery Life with Case | Allt að 24 klst |
| Hleðsluhylki Rafhlaða | 24 Hours average life |
| Hleðsla | USB-C, Qi þráðlaus hleðsla |
| Þyngd hlutar (heyrnartól) | 7 grömm (u.þ.b. 0.247 únsur) |
| Þyngd tösku | 28 grömm |
| Vörumál | 1.1 x 0.91 x 1.02 tommur (heyrnartól) |
Ábyrgð og stuðningur
For information regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your product or visit the official Technics websíða.
For technical support, product registration, or frequently asked questions, please visit the Technics support page or contact their customer service.
- Tæknilegir starfsmenn Websíða: www.technics.com
- Technics Audio Connect app: Fáanlegt í Google Play Store og Apple App Store.
