Notendahandbók fyrir HIKMICRO Falcon FQ35 hitamyndavélina

1. Inngangur

The HIKMICRO Falcon FQ35 Thermal Imaging Camera is a portable night vision device designed for various outdoor activities, including surveillance, security, and recreation. It features a high-resolution infrared sensor and an advanced OLED display, making it a top-tier option for thermal observation.

Figure 1: HIKMICRO Falcon FQ35 Thermal Imaging Camera

2. Vörueiginleikar

2.1. Precision and Image Clarity

• Equipped with a 640 x 512 pixel infrared detector for high image resolution.
• Features a 1024 x 768 pixel OLED screen for clear and precise images, even in low light or complete darkness.
• Capable of detecting temperatures ranging from -20°C to 550°C, suitable for diverse applications.

2.2. Portability and Ease of Use

• Compact and lightweight design ensures easy transport.
• Rechargeable battery provides up to 5 hours of continuous use.
• Intuitive and user-friendly interface for immediate operation.
• Observation and hotspot functions are ready-to-use.

2.3. High Thermal Sensitivity

• Integrated highly sensitive thermal detector for precise temperature detection.
• Image enhancement function ensures clear images even in challenging conditions like high humidity or smoke.

Mynd 2: Hlið view showing HIKMICRO branding

3. Uppsetning

3.1. Upptaka og frumskoðun

Carefully unpack all components from the box. Verify that all items listed in the packing list are present and undamaged. This typically includes the thermal camera, USB cable, power adapter, and user manual.

3.2. Hleðsla rafhlöðunnar

Before first use, fully charge the device. Connect the USB cable to the camera's charging port and the other end to the power adapter. Plug the adapter into a power outlet. The charging indicator light will show the charging status (e.g., red for charging, green for fully charged). A full charge can take several hours.

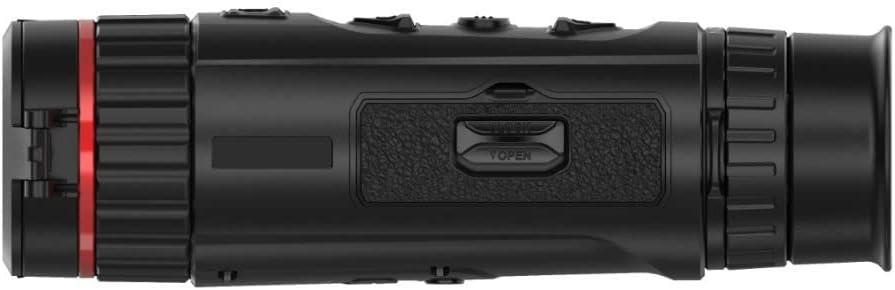

Mynd 3: Hlið view showing the battery compartment/port area

3.3. Kveikja / slökkva á

To power on the device, press and hold the power button (usually marked with a power symbol) for a few seconds until the screen illuminates. To power off, press and hold the power button again until the device shuts down.

3.4. Upphafleg stilling

Upon first power-on, you may be prompted to set up basic parameters such as language, date, and time. Follow the on-screen instructions to complete these settings.

4. Notkunarleiðbeiningar

4.1. Basic Viewing og fókus

Hold the camera to your eye and adjust the eyepiece for comfortable viewing. Rotate the focus ring on the objective lens until the image appears sharp and clear. This manual focus ensures optimal image quality for different distances.

4.2. Valmyndaleiðsögn og stillingar

The device features several buttons on the top panel for navigation and control. Typically, there is a menu button to access settings, arrow buttons for navigation, and an OK/confirm button. Explore the menu to adjust settings such as brightness, contrast, color palettes (e.g., White Hot, Black Hot, Red Hot, Fusion), and digital zoom levels.

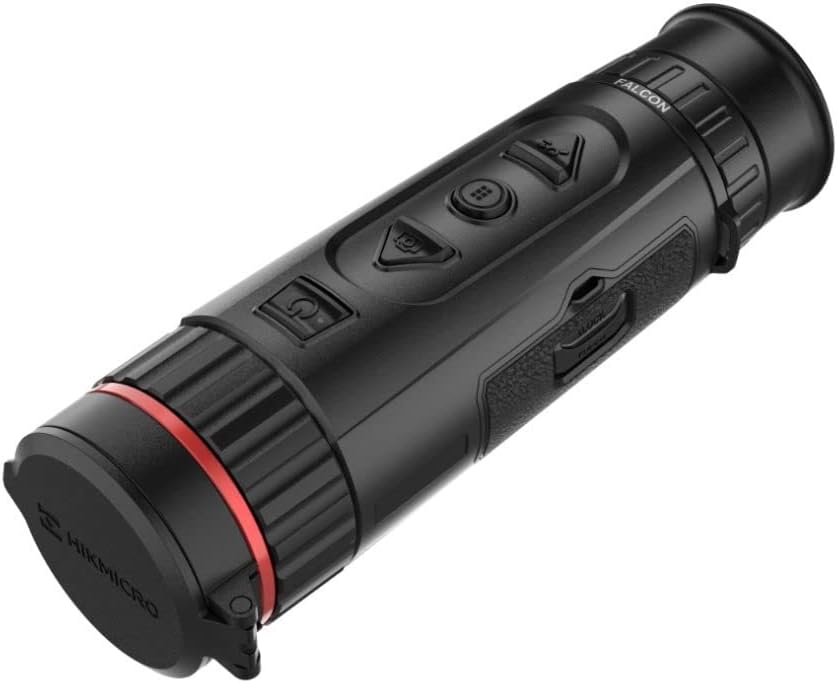

Mynd 4: Efst view showing the control buttons

4.3. Image and Video Recording

Most thermal cameras have dedicated buttons for capturing still images and recording videos. Press the photo button to take a snapshot. Press the video button once to start recording and again to stop. Recorded media is typically stored on internal memory or a removable SD card (if applicable).

4.4. Hotspot Tracking

The FQ35 features an automatic hotspot tracking function that identifies and highlights the hottest point in the field of view. This is particularly useful for quickly locating objects with higher temperatures.

4.5. Connectivity (Smartphone)

The camera can connect to a smartphone via Wi-Fi for live view, remote control, and media transfer. Download the official HIKMICRO app from your device's app store and follow the in-app instructions to establish a connection.

5. Viðhald

5.1. Þrif tækisins

• Linsa: Use a soft, lint-free cloth specifically designed for optical lenses. Gently wipe the lens surface. Avoid using abrasive materials or harsh chemicals.
• Líkami: Þurrkið myndavélarhúsið með mjúkum klútamp cloth. Do not use solvents, alcohol, or corrosive cleaners.

5.2. Umhirða rafhlöðu

• Hlaðið rafhlöðuna reglulega, jafnvel þótt tækið sé ekki í mikilli notkun, til að viðhalda heilbrigði rafhlöðunnar.
• Forðastu að tæma rafhlöðuna alveg oft.
• Do not expose the battery to extreme temperatures (hot or cold) for prolonged periods.

5.3. Geymsla

When not in use, store the thermal camera in its protective case in a cool, dry place, away from direct sunlight and excessive humidity. Ensure the lens cap is on to protect the objective lens.

Mynd 5: Framan view with lens cap open

6. Bilanagreining

This section addresses common issues you might encounter with your HIKMICRO Falcon FQ35.

7. Tæknilýsing

Below are the key technical specifications for the HIKMICRO Falcon FQ35 Thermal Imaging Camera.

8. Ábyrgð og stuðningur

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official HIKMICRO webGeymið kaupkvittunina sem sönnun fyrir kaup vegna ábyrgðarkröfu.

Opinber HIKMICRO Websíða: www.hikmicrotech.com
