1. Inngangur
This manual provides detailed instructions for the installation, operation, and maintenance of the SUPPLYZ W11195669 Refrigerator Ice Door Assembly. This component is designed as a direct replacement for specific Whirlpool refrigerator models, ensuring proper function of your appliance's ice dispenser system. Please read this manual thoroughly before proceeding with installation or use.
2. Öryggisupplýsingar
- Aftengdu rafmagn: Always unplug the refrigerator from the power outlet before attempting any installation, repair, or maintenance to prevent electric shock.
- Notið hlífðarbúnað: Notið hanska til að vernda hendur fyrir beittum brúnum og öryggisgleraugu til að vernda augun.
- Fagleg aðstoð: Ef þú ert óviss um eitthvert skref skaltu ráðfæra þig við hæfan tæknimann.
- Upprunalegir hlutar: Use only genuine replacement parts or approved equivalents to ensure proper fit and function.
3. Samhæfni
The SUPPLYZ W11195669 Ice Door Assembly is a direct replacement for Whirlpool part numbers W10616140, 3023321, PS8768838, W10397481, and W10563936.
This part is compatible with various Whirlpool refrigerator models, including but not limited to:
- ASD2275BRB00, ASD2275BRB01, ASD2275BRS00, ASD2275BRS01, ASD2275BRW00, ASD2275BRW01
- ASD2575BRB00, ASD2575BRB01, ASD2575BRS00, ASD2575BRS01, ASD2575BRW00, ASD2575BRW01
- ASI2575FRB00, ASI2575FRS00, ASI2575FRW00
- MSF22D4XAB00, MSF22D4XAB01, MSF22D4XAM00, MSF22D4XAM01, MSF22D4XAW00, MSF22D4XAW01
- MSF25D4XAB00, MSF25D4XAM00, MSF25D4XAW00
- 7WRS22FDBF02, 7WRS22FDBW00, 7WRS22FDBW02
- WRS322FDAB00, WRS322FDAB01, WRS322FDAB02, WRS322FDAB03, WRS322FDAB04
- WRS322FDAD00, WRS322FDAD01
- WRS322FDAM00, WRS322FDAM01, WRS322FDAM02, WRS322FDAM03, WRS322FDAM04
- WRS322FDAT00, WRS322FDAT01, WRS322FDAT02, WRS322FDAT03, WRS322FDAT04
- WRS322FDAW00, WRS322FDAW01, WRS322FDAW02, WRS322FDAW03, WRS322FDAW04
- WRS325FDAB01, WRS325FDAB02, WRS325FDAB04
- WRS325FDAM01, WRS325FDAM02, WRS325FDAM04
- WRS325FDAT02, WRS325FDAT04
- WRS325FDAW01, WRS325FDAW02, WRS325FDAW04
- WRS331FDDB00, WRS331FDDB01
- WRS331FDDM00, WRS331FDDM01
- WRS331FDDW00, WRS331FDDW01
- WRS335FDDB00, WRS335FDDB01
- WRS335FDDM00, WRS335FDDM01
- WRS335FDDW00, WRS335FDDW01
Always verify your appliance's model number to ensure compatibility before purchasing and installing this part. The model number is typically located on a label inside the refrigerator compartment.
4. Innihald pakka
Pakkinn þinn ætti að innihalda eftirfarandi hlut:
- 1 x SUPPLYZ W11195669 Refrigerator Ice Door Assembly

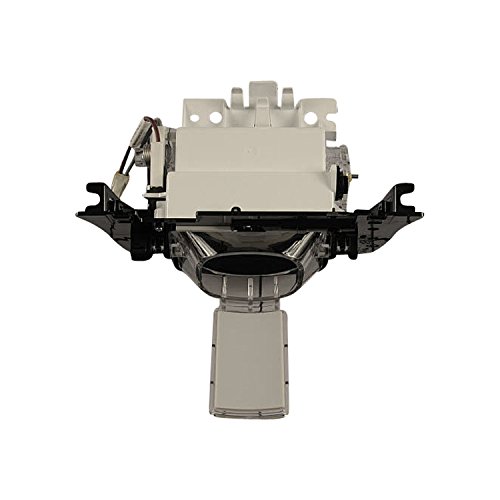

Image: The SUPPLYZ W11195669 Refrigerator Ice Door Assembly, showing its main components and design.
5. Uppsetningarleiðbeiningar
Follow these steps carefully to replace the ice door assembly. It is recommended to have a helper for certain steps.
- Undirbúið ísskápinn:
- Unplug the refrigerator from the electrical outlet to ensure safety.
- Empty the ice bin and remove it from the freezer compartment.
- Access the Ice Door Assembly:
- Locate the ice dispenser chute inside the freezer door. The ice door assembly is typically located at the bottom of this chute.
- Depending on your specific model, you may need to remove a trim piece or a few screws to access the assembly. Refer to your refrigerator's specific service manual if needed.
- Remove the Old Ice Door:
- Carefully disconnect any wiring harnesses attached to the old ice door assembly. Note the orientation of the wires for reinstallation.
- Unscrew or unclip the old ice door assembly from its mounting points. It may be held in place by clips, tabs, or screws.
- Gently pull the old assembly out of the freezer door.
- Install the New Ice Door:
- Align the new SUPPLYZ W11195669 ice door assembly with the opening in the freezer door.
- Secure the new assembly using the screws or clips that held the old one in place. Ensure it is seated firmly and correctly.
- Reconnect any wiring harnesses to the new assembly. Make sure connections are secure and correctly oriented.
- Setja saman aftur og prófa:
- Replace any trim pieces or covers that were removed.
- Reinsert the ice bin into the freezer compartment.
- Stingdu ísskápnum aftur í rafmagnsinnstunguna.
- Test the ice dispenser function to ensure the new ice door opens and closes properly and that ice dispenses without obstruction.
6. Rekstur
The ice door assembly functions automatically as part of your refrigerator's ice dispensing system. When the dispenser lever is pressed, the ice door opens to allow ice to pass through the chute into your glass or container. Upon release of the lever, the door closes to maintain the freezer's temperature and prevent warm air from entering.
- Ice Dispensing: Press the dispenser lever firmly with your glass. The ice door will open, and ice will be dispensed.
- Lokun hurðar: Release the dispenser lever. The ice door should close completely and seal the chute.
7. Viðhald
Regular maintenance helps ensure the longevity and proper function of your ice door assembly.
- Þrif: Periodically inspect the ice chute and door for any ice buildup or debris. Clean with a damp cloth and mild detergent if necessary. Ensure the area is dry before re-engaging power.
- Skoðun: Check the ice door for any signs of wear, cracks, or damage. Ensure the door's seal is intact and free of tears to prevent air leaks.
- Forðastu afl: Do not force the ice door open or closed manually, as this can damage the mechanism.
8. Bilanagreining
| Vandamál | Möguleg orsök | Lausn |
|---|---|---|
| Ice door does not open. | Power issue, dispenser lever malfunction, motor failure. |
|
| Ice door does not close completely. | Ice buildup, debris in chute, damaged seal, faulty spring/mechanism. |
|
| Water leaks from dispenser. | Damaged ice door seal, cracked ice chute. |
|
For issues not covered here, or if troubleshooting steps do not resolve the problem, contact a qualified appliance repair professional.
9. Tæknilýsing
- Hlutanúmer: SUPPLYZ SZ-W11195669
- Kemur í stað hlutanúmera: W11195669, W10616140, 3023321, PS8768838, W10397481, W10563936
- Framleiðandi: SUPPLYZ
- Samhæfni: Direct replacement for various Whirlpool refrigerator models.
10. Ábyrgð og stuðningur
For warranty information or technical support regarding your SUPPLYZ W11195669 Refrigerator Ice Door Assembly, please refer to the documentation provided with your purchase or contact SUPPLYZ customer service directly. Keep your proof of purchase for warranty claims.
