Notendahandbók fyrir XREAL HC snúru

Inngangur

This manual provides essential information for the proper use, setup, and maintenance of your XREAL H-C Cable. This high-speed HDMI to USB-C cable is designed to connect various devices, including gaming consoles and PCs, to compatible AR glasses like the XREAL Beam and Air AR glasses, supporting 4K/60Hz video transmission.

Öryggisupplýsingar

Please read and follow these safety guidelines to ensure safe operation and prolong the life of your cable:

Do not expose the cable to extreme temperatures, direct sunlight, or high humidity.
Avoid bending or twisting the cable excessively, especially near the connectors, as this can damage internal wires.
Keep the cable away from water and other liquids. If it gets wet, disconnect it immediately and allow it to dry completely before reuse.
Do not attempt to disassemble or modify the cable. This will void the warranty and may cause damage.
Geymið þar sem börn og gæludýr ná ekki til.
Notið aðeins með samhæfum tækjum eins og tilgreint er í þessari handbók.

Innihald pakka

Pakkinn inniheldur eftirfarandi hlut:

1 x XREAL H-C Cable (HDMI to USB-C)

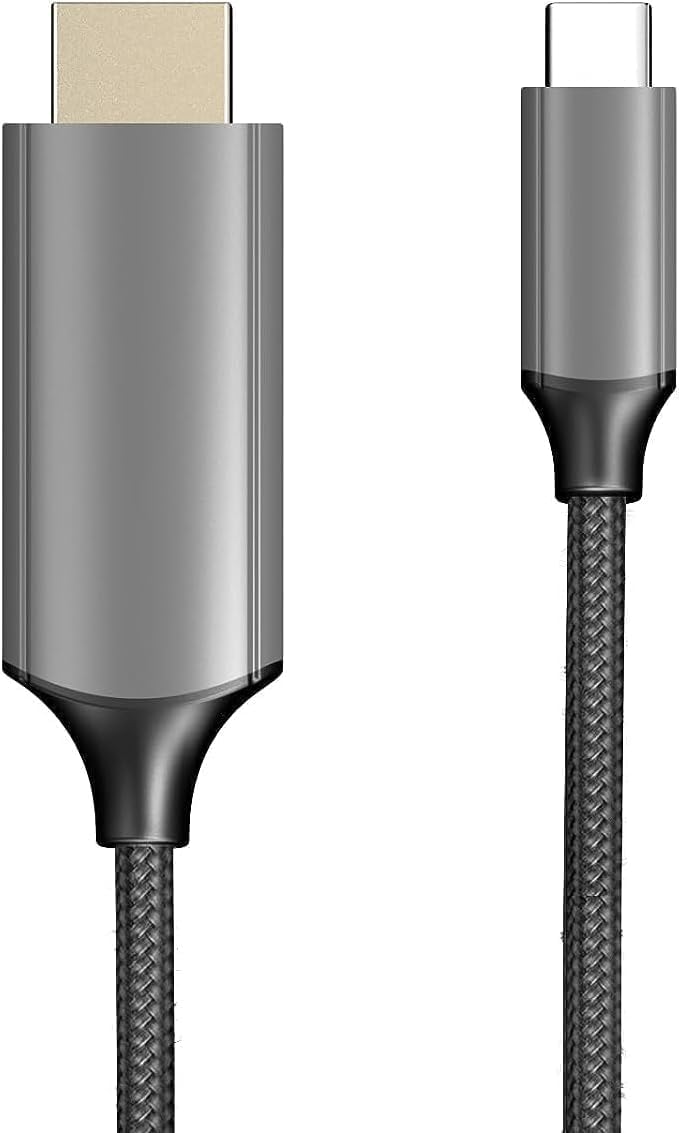

XREAL H-C Cable with HDMI and USB-C connectors

Image: The XREAL H-C Cable showing both the HDMI and USB-C connectors. The cable features a durable, woven design.

Vara lokiðview

The XREAL H-C Cable is engineered for high-fidelity video and audio transmission. It features a robust, woven design for enhanced durability and tangle-free use. The cable facilitates connection from an HDMI source to a USB-C display, supporting resolutions up to 4K at 60Hz.

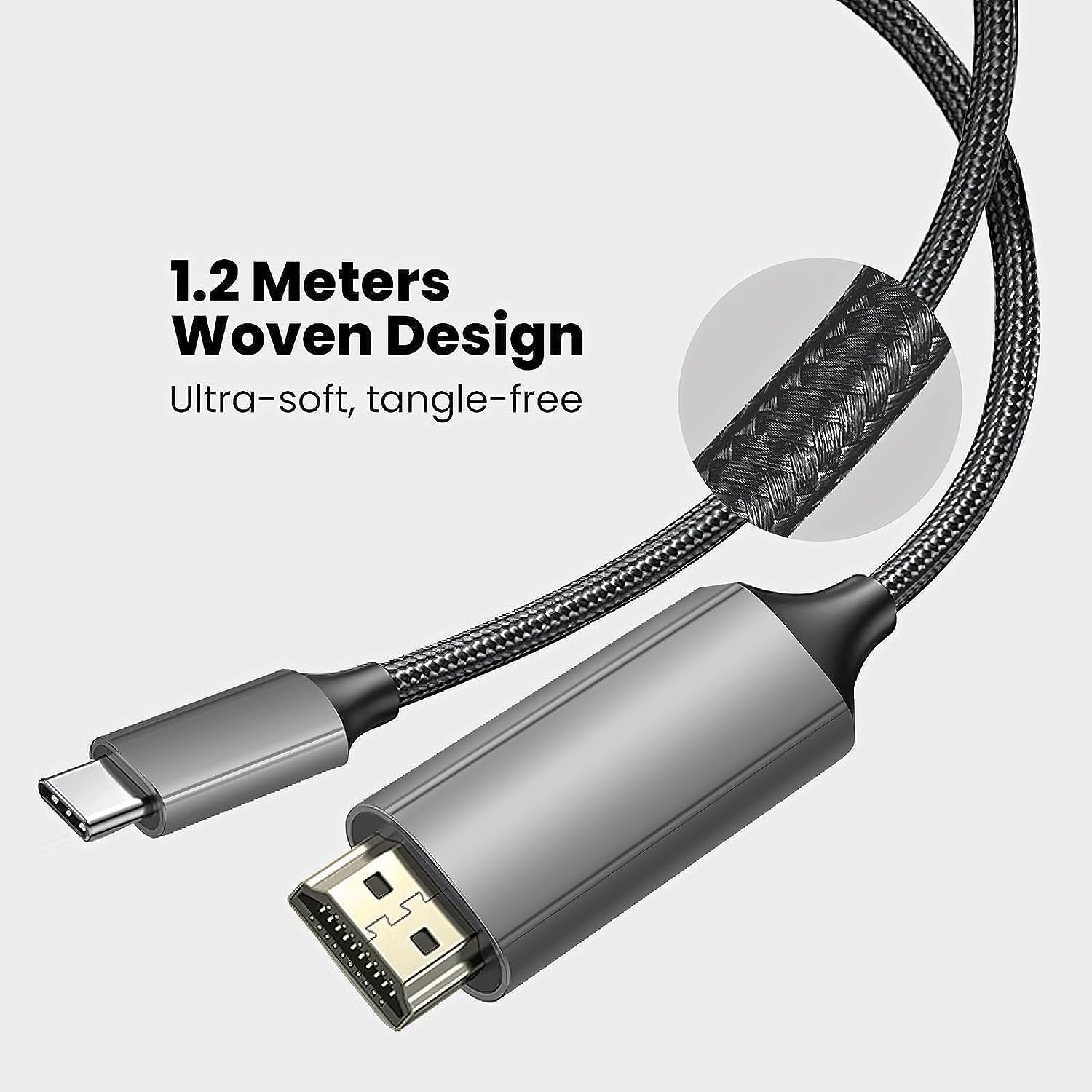

XREAL H-C Cable showing 1.2 meters woven design

Image: Close-up of the XREAL H-C Cable highlighting its 1.2-meter length and ultra-soft, tangle-free woven design.

Uppsetning

Follow these steps to connect your XREAL H-C Cable:

Þekkja tengi: Locate the HDMI "In" connector and the USB-C "Out" connector on the cable.

XREAL H-C Cable with HDMI In and USB-C Out labels

Image: The XREAL H-C Cable clearly labeled with "HDMI In" and "USB-C Out" to indicate connection direction.

Tengjast við uppsprettu: Stingdu í HDMI "In" end of the cable into the HDMI output port of your source device (e.g., PlayStation, Xbox, Nintendo Switch, PC graphics card).
Tengjast við skjá: Stingdu í USB-C "Out" end of the cable into the USB-C input port of your compatible display device (e.g., XREAL Beam, XREAL Air AR glasses).
Kveikt á tækjum: Ensure both your source device and display device are powered on.
Staðfestu tengingu: The display should automatically detect the input signal. If not, you may need to manually select the input source on your display device.

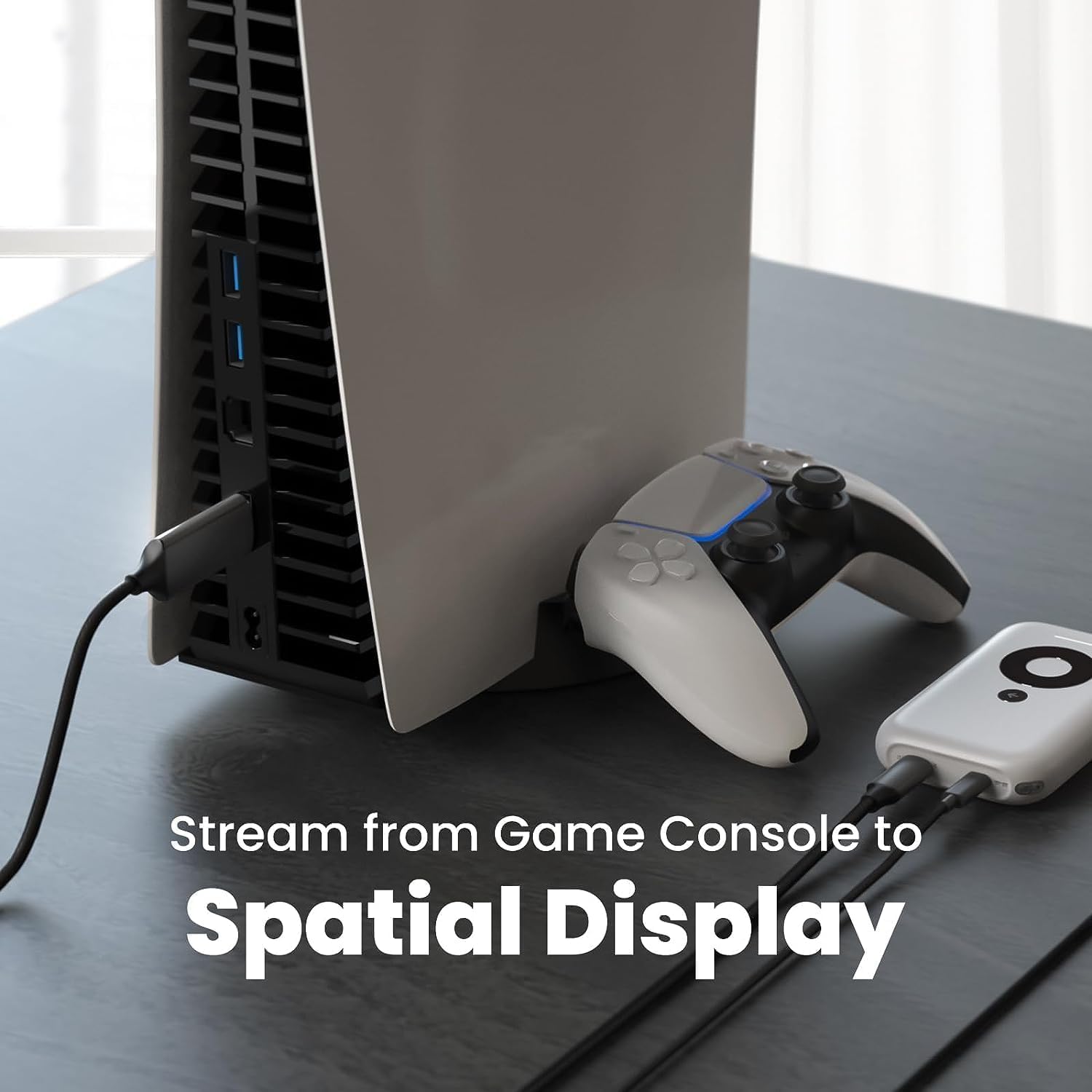

XREAL H-C Cable connected to PlayStation 5 and XREAL Beam

Mynd: Fyrrverandiample setup showing the XREAL H-C Cable connecting a PlayStation 5 console to an XREAL Beam device, enabling streaming to a spatial display.

Í rekstri

Once connected, the XREAL H-C Cable operates as a plug-and-play device. No additional drivers or software are typically required.

Upplausn og endurnýjunartíðni: The cable supports up to 4K resolution at 60Hz. Ensure your source device and display device are configured to output and receive these resolutions and refresh rates for optimal performance.
Hljóðsending: The cable transmits both video and audio signals. Verify audio settings on your source device if no sound is heard.
Samhæfni: This cable is designed for specific applications, primarily connecting HDMI output devices to USB-C input displays, such as XREAL AR glasses. It is not a bidirectional cable and will not function if connected in reverse.

Viðhald

Proper care will extend the life of your XREAL H-C Cable:

Þrif: Use a soft, dry, lint-free cloth to gently wipe the cable and connectors. Do not use liquid cleaners or abrasive materials.
Geymsla: When not in use, coil the cable loosely. Avoid tight coiling or sharp bends. Store in a cool, dry place away from direct sunlight.
Meðhöndlun: Always grasp the connector housing when plugging or unplugging the cable. Do not pull on the cable itself.

Úrræðaleit

If you encounter issues with your XREAL H-C Cable, try the following solutions:

Vandamál	Möguleg orsök	Lausn
Ekkert merki á skjánum	Kapall ekki alveg tengdur. Incorrect input source selected on display. Incompatible device or connection direction. Upprunatæki sendir ekki frá sér merki.	Ensure both HDMI and USB-C connectors are firmly seated. Manually select the correct USB-C input on your display device. Verify that your source device has an HDMI output and your display device has a USB-C input that supports video. Remember, this cable is unidirectional (HDMI to USB-C). Check the display settings on your source device (e.g., PC display settings, console video output settings).
Flikrandi eða brengluð mynd	Skemmdir á kapli. Resolution/refresh rate mismatch. Truflun.	Inspect the cable for visible damage. Try a different cable if available. Lower the resolution or refresh rate on your source device to see if the issue resolves. Ensure the cable is not near strong electromagnetic interference sources.
Ekkert hljóð	Audio settings on source device. Display device audio output.	Check the audio output settings on your source device to ensure it's sending audio via HDMI. Verify that your display device (e.g., AR glasses) has its audio enabled and volume adjusted.

Tæknilýsing

Vörumerki	XREAL
Gerðarnúmer	6976143800071
Tegund tengis	HDMI (Input), USB Type-C (Output)
Gagnaflutningshraði	5 Gigabits per second (for compatible data streams)
Samhæf tæki	Gaming Consoles (PlayStation, Xbox, Switch), Windows Desktop, XREAL Beam, XREAL Air AR Glasses
Hámarksupplausnarstuðningur	4K @ 60Hz
Lengd snúru	1.2 metrar (u.þ.b. 3.9 fet)

Ábyrgð og stuðningur

XREAL products are manufactured to high quality standards. For information regarding warranty coverage and customer support, please refer to the official XREAL webvefsíðu eða hafðu samband við þjónustuver þeirra beint. Geymdu kaupkvittunina sem sönnun fyrir kaupum ef þú vilt gera kröfu um ábyrgð.

Fyrir frekari aðstoð, heimsækið: www.xreal.com/support
