HQparts 97906 Carburetor Instruction Manual

Inngangur

This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of the HQparts 97906 Carburetor. This carburetor is designed as a direct replacement part for Harbor Freight Chicago Electric Branded 2.5HP 1000/1050 Watts Gas Generators, specifically replacing the original model number 97906 carburetor. Proper installation and maintenance are crucial for the optimal performance and longevity of your generator.

Öryggisupplýsingar

Always prioritize safety when working with fuel systems and internal combustion engines. Failure to follow safety precautions can result in serious injury or property damage.

• Ensure the generator is turned off and cooled down before beginning any work.
• Aftengdu kertavírinn til að koma í veg fyrir að hann ræsist fyrir slysni.
• Vinnið á vel loftræstum stað til að forðast að anda að sér eldsneytisgufum.
• Notið viðeigandi persónuhlífar, þar á meðal hanska og augnhlífar.
• Farið varlega með bensín. Það er mjög eldfimt.
• Hafðu slökkvitæki tiltæk.
• Ef þú ert óviss um eitthvert skref skaltu ráðfæra þig við hæfan tæknimann.

Innihald pakka

Gakktu úr skugga um að allir íhlutir séu til staðar og óskemmdir áður en haldið er áfram með uppsetningu.

• 1x HQparts 97906 Carburetor
• 1x Fuel Line
• 1x Fuel Filter
• 2x Gaskets (as shown in product images)

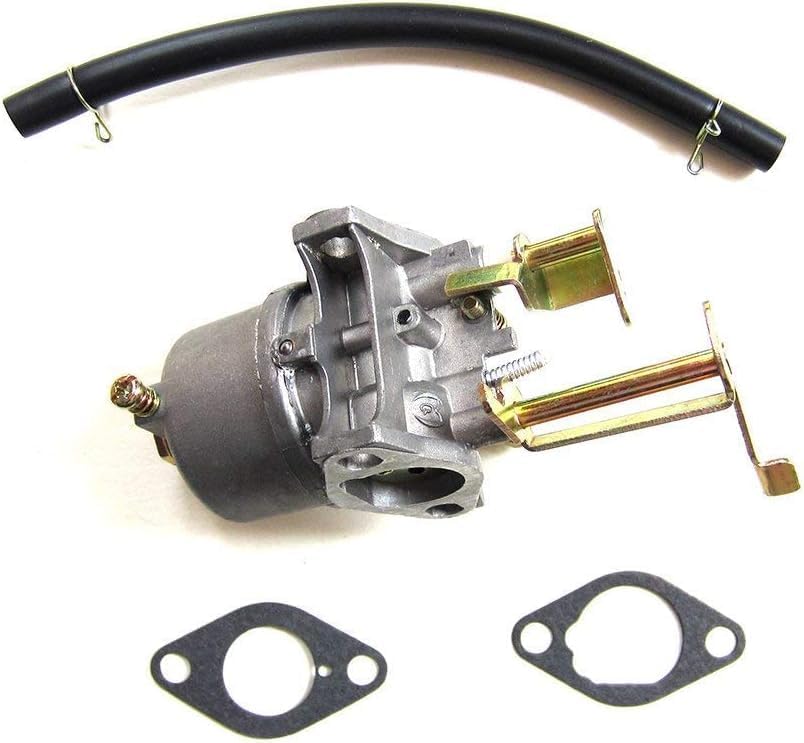

Image 1: The HQparts 97906 Carburetor assembly, including the main carburetor unit, a flexible fuel line, and two mounting gaskets.

Uppsetning og uppsetning

This section outlines the general procedure for replacing the carburetor on a compatible generator. Specific steps may vary slightly depending on your generator model.

1. Undirbúningur:
   • Slökktu á rafalnum og leyfðu honum að kólna alveg.
   • Aftengdu kertavírinn til að koma í veg fyrir að hann ræsist fyrir slysni.
   • Snúið eldsneytislokanum í „OFF“ stöðu.
   • Place a suitable container under the carburetor to catch any residual fuel and drain the fuel tank if necessary.
2. Fjarlægðu loftsíusamstæðuna:
   • Locate and remove the air filter housing and air filter element.
   • Disconnect any hoses or linkages attached to the air filter base.
3. Aftengið eldsneytisleiðslu og tengi:
   • Carefully disconnect the fuel line from the old carburetor. Be prepared for a small amount of fuel spillage.
   • Note the routing and connection points of the throttle and choke linkages. Disconnect them from the old carburetor. Taking a photo can be helpful.
4. Fjarlægðu gamla karburatorinn:
   • Remove the mounting bolts or nuts that secure the carburetor to the engine intake manifold.
   • Carefully remove the old carburetor and any old gaskets. Ensure all old gasket material is cleaned from the mounting surfaces.
5. Setja upp nýjan karburator:
   • Place a new gasket onto the engine intake manifold.
   • Position the new HQparts 97906 Carburetor onto the mounting studs, ensuring it aligns correctly.
   • Place the second new gasket onto the carburetor, followed by the air filter base.
   • Secure the carburetor assembly with the mounting bolts/nuts. Tighten them evenly to prevent air leaks. Do not overtighten.
6. Reconnect Fuel Line and Linkages:
   • Connect the new fuel line and fuel filter (if replacing) to the carburetor and the fuel tank. Ensure all connections are secure and free of leaks.
   • Reconnect the throttle and choke linkages to their correct positions on the new carburetor. Refer to any photos taken during disassembly.
7. Setjið loftsíusamstæðuna aftur á sinn stað:
   • Reinstall the air filter element and air filter housing.
8. Final Checks and Testing:
   • Athugið hvort allar tengingar séu þéttar og réttar.
   • Turn the fuel valve to the "ON" position and check for any fuel leaks.
   • Tengdu aftur kertavírinn.
   • Start the generator according to its manufacturer's instructions. Allow it to warm up and check for smooth operation.

Mynd 2: Annað view of the HQparts 97906 Carburetor, highlighting the various ports and adjustment screws.

Rekstrarsjónarmið

While the carburetor itself does not have operational controls, its proper function is essential for the generator's operation. Always use fresh, clean gasoline appropriate for your generator. Stale or contaminated fuel can lead to carburetor issues and poor engine performance. Ensure the fuel filter is clean and free of debris.

Viðhald

Regular maintenance of your generator's fuel system, including the carburetor, will ensure reliable performance.

• Hreinlæti eldsneytiskerfis: Always use a fuel stabilizer if storing the generator for extended periods. Drain the fuel system if storing for more than 30 days without stabilizer.
• Eldsneytissía: Inspect and replace the fuel filter periodically, or if it appears clogged or dirty.
• Þrif á karburator: If the generator experiences fuel-related issues, the carburetor may need cleaning. This typically involves disassembling the carburetor, cleaning jets and passages with carburetor cleaner, and replacing gaskets. This procedure should only be performed by individuals with mechanical experience.

Úrræðaleit

If your generator is experiencing issues after carburetor replacement, consider the following common problems:

• Rafallinn fer ekki í gang:
  • Check if the fuel valve is open.
  • Ensure there is fresh fuel in the tank.
  • Verify the spark plug wire is securely connected.
  • Confirm the choke is set correctly for starting.
  • Check for air leaks around the carburetor mounting gaskets.
• Rough Running or Stalling:
  • This could indicate a partially clogged jet or an air leak.
  • Gakktu úr skugga um að loftsían sé hrein og rétt uppsett.
  • Check for proper adjustment of the throttle and choke linkages.
• Eldsneytisleki:
  • Inspect all fuel line connections and the carburetor bowl gasket for leaks. Tighten or replace as necessary.
  • Ensure the carburetor mounting bolts are tightened evenly.

If troubleshooting steps do not resolve the issue, it is recommended to consult a professional small engine mechanic.

Tæknilýsing

Upplýsingar um ábyrgð

This HQparts 97906 Carburetor comes with a 3 mánaða ábyrgð from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, neglect, accident, or unauthorized modifications. Please retain your proof of purchase for warranty claims.

Þjónustudeild

For technical assistance, questions regarding installation, or warranty claims, please contact the seller or manufacturer through the platform where the product was purchased. When contacting support, please have your product model number (97906) and purchase details readily available.
