Notendahandbók fyrir Heinner Crystal Clear HAF-B2000FB heitaloftsteikingarpott

1. Mikilvægar öryggisleiðbeiningar

Lesið allar leiðbeiningar vandlega áður en tækið er notað. Ef þessum leiðbeiningum er ekki fylgt getur það valdið raflosti, eldsvoða eða alvarlegum meiðslum.

• Ekki dýfa aðaleiningunni, snúrunni eða klónni í vatn eða aðra vökva.
• Þetta tæki er ekki ætlað til notkunar af einstaklingum (þar á meðal börnum) með skerta líkamlega, skynræna eða andlega getu, eða skort á reynslu og þekkingu, nema þeir hafi fengið eftirlit eða leiðbeiningar um notkun tækisins af einstaklingi sem ber ábyrgð á öryggi þeirra. .
• Gakktu úr skugga um að binditage sem tilgreint er á tækinu samsvarar staðarnetinu þínutage áður en tækið er tengt.
• Do not block any ventilation openings. Allow sufficient space around the appliance for proper air circulation.
• Always place the appliance on a stable, level, and heat-resistant surface.
• Takið tækið úr sambandi þegar það er ekki í notkun og áður en það er þrifið. Leyfið því að kólna alveg áður en það er meðhöndlað.
• Ekki nota tæki með skemmda snúru eða kló eða eftir að tækið bilar eða hefur skemmst á einhvern hátt.
• Ekki láta rafmagnssnúruna hanga yfir brún borðs eða borðs eða snerta heita fleti.
• Do not use accessories not recommended by the manufacturer, as this may cause injuries or damage to the appliance.

2. Vöru lokiðview

The Heinner Crystal Clear HAF-B2000FB is a versatile hot air fryer designed for healthy cooking with minimal oil. Its transparent viewing window allows you to monitor your food as it cooks.

2.1. Íhlutir

Mynd 2.1: Hornlaga view of the Heinner Crystal Clear HAF-B2000FB Hot Air Fryer, showing the top control panel and the transparent viewí glugga.

Mynd 2.2: Framan view of the hot air fryer, highlighting the transparent cooking chamber and the handle.

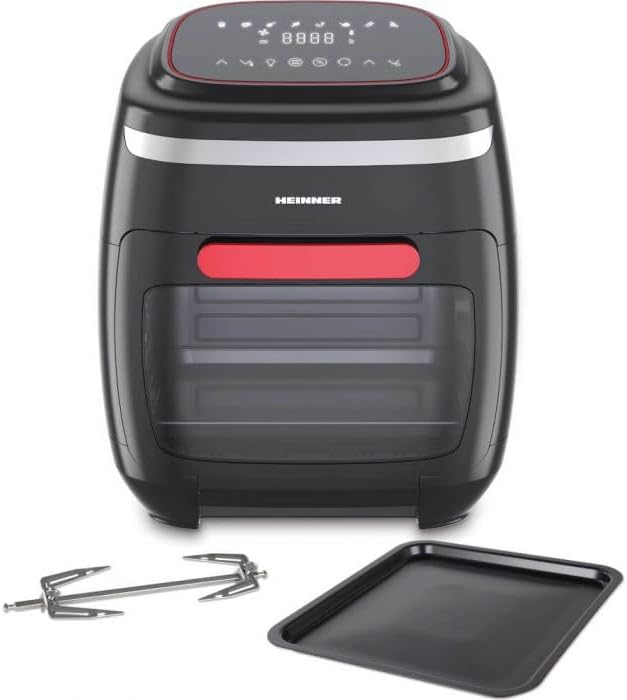

Figure 2.3: The hot air fryer shown with the rotisserie spit and a drip tray, demonstrating some of the included accessories.

Figure 2.4: A collection of accessories including a frying basket, mesh racks, rotisserie spit, and a handle for accessory removal.

• Main Unit with Digital Touch Control Panel
• Gegnsætt Viewing Gluggi
• Fjarlæganleg steikingarkarfa
• Mesh Racks (multiple for multi-level cooking)
• Rotisserie Spit and Forks
• Dreypibakki
• Accessory Removal Tool

2.2. Aðgerðir stjórnborðs

The intuitive touch control panel allows for easy selection of cooking programs, temperature, and time settings.

• Aflhnappur: Kveikir/slökkvið á tækinu.
• Hitastilling: Increases or decreases cooking temperature.
• Stilling tímamælis: Stillir eldunartíma.
• Dagskrárval: Cycles through 8 preset cooking programs.
• Ljóshnappur: Illuminates the interior of the cooking chamber.
• Hnappur fyrir grillspíra: Activates or deactivates the rotisserie rotation function.
• Byrja/hlé hnappur: Hefjar eða gerir hlé á eldunarferlinu.

3. Uppsetning og fyrsta notkun

3.1. Upptaka

1. Fjarlægið varlega öll umbúðaefni, þar á meðal hlífðarfilmur eða límmiða.
2. Inspect the appliance and all accessories for any signs of damage. Do not use if damaged.
3. Geymið umbúðirnar til síðari geymslu eða förgunar.

3.2. Cleaning Before First Use

1. Þurrkið ytra byrði aðaleiningarinnar með hreinum, þurrum klút.amp klút.
2. Wash all removable accessories (frying basket, mesh racks, drip tray, rotisserie spit, etc.) with warm soapy water.
3. Skolið vandlega og þurrkið alla hlutana alveg áður en þeir eru settir saman aftur.

3.3. Staðsetning

Place the hot air fryer on a stable, level, and heat-resistant surface. Ensure there is at least 10-15 cm (4-6 inches) of clear space around the back and sides of the appliance for proper ventilation. Do not place it directly against a wall or under cabinets.

4. Notkunarleiðbeiningar

4.1. Grunnaðgerð

1. Stingdu rafmagnssnúrunni í jarðtengda rafmagnsinnstungu. Skjárinn mun lýsast upp í stutta stund.
2. Press the Power button to turn on the digital display.
3. Prepare your food and place it inside the frying basket or on the appropriate rack/rotisserie spit.
4. Carefully insert the basket/rack/spit into the appliance, ensuring it is securely in place.
5. Select a preset program by pressing the program icon, or manually set the desired temperature and time using the adjustment buttons.
6. Ýttu á Start/Pause hnappinn til að hefja eldunarferlið.

4.2. Notkun forstilltra forrita

The fryer comes with 8 convenient preset programs for common dishes such as fries, chicken, fish, and more. Simply press the corresponding program icon on the control panel. The appliance will automatically set the optimal temperature and time for that program. You can adjust these settings manually if needed after selecting a preset.

4.3. Manual Temperature and Time Setting

To set temperature and time manually, press the temperature or time adjustment buttons. Use the '+' and '-' icons to increase or decrease the values. The temperature range is typically from 80°C to 200°C (175°F to 400°F) and the timer can be set up to 60 minutes.

4.4. Rotisserie Function

For rotisserie cooking (e.g., whole chicken, roasts), secure the food onto the rotisserie spit using the forks. Insert the assembled spit into the designated slots inside the appliance. After setting the cooking time and temperature, press the rotisserie button on the control panel to activate the rotation. This ensures even cooking and browning.

4.5. Viewing Window and Light

Gagnsæi viewing window allows you to monitor cooking progress without opening the door, which helps maintain consistent cooking temperature. Press the light button on the control panel to illuminate the interior of the cooking chamber for better visibility.

5. Viðhald og þrif

Regular cleaning ensures optimal performance and extends the lifespan of your hot air fryer.

5.1. Almenn þrif

1. Taktu heimilistækið alltaf úr sambandi og láttu það kólna alveg áður en það er hreinsað.
2. Þurrkið ytra byrði aðaleiningarinnar með mjúkum, þurrum klút.amp klút. Ekki nota slípiefni eða hreinsiefni.
3. Clean the interior of the cooking chamber with a soft, damp cloth and a mild detergent. For stubborn residue, a non-abrasive sponge can be used.

5.2. Aukabúnaður fyrir þrif

All removable accessories, including the frying basket, mesh racks, drip tray, and rotisserie spit, are dishwasher safe. Alternatively, they can be washed by hand with warm soapy water and a non-abrasive sponge. Ensure all parts are thoroughly dried before reassembly or storage.

5.3. Geymsla

When not in use, store the appliance in a cool, dry place. Ensure the power cord is neatly wrapped and secured to prevent damage.

6. Bilanagreining

If you encounter any issues with your hot air fryer, please refer to the following table for common problems and solutions.

7. Tæknilýsing

• Gerð: HAF-B2000FB
• Vörumerki: HEINNER
• Kraftur: 2000 W
• Stærð: 4.5 lítrar
• Mál (L x B x H): 33.9 x 37.7 x 32.4 cm
• Stjórnunaraðferð: Snerta
• Forrit: 8 Forstillt forrit
• ASIN: B0CT8ZDX1B

8. Ábyrgð og stuðningur

For detailed warranty information, terms, and conditions, please refer to the warranty card or documentation included with your purchase. In case of technical issues, questions, or to request service, please contact HEINNER customer support through the contact details provided in your product packaging or on the official HEINNER websíða.

Please retain your proof of purchase (receipt or invoice) as it will be required for any warranty claims.
