Leiðbeiningarhandbók fyrir Pit Boss 500FB2 kögglagrill

Inngangur

The Pit Boss 500FB2 Wood Pellet Grill combines premium craftsmanship with 100% all-natural hardwood pellet fuel, offering a versatile barbecue experience. This manual provides essential information for the safe and effective operation and maintenance of your grill.

With over 500 square inches of cooking space and a compact design, the 500FB2 model is suitable for various outdoor cooking needs, from large cuts of meat to grilling for a crowd. It features a Flame Broiler™ Lever for direct flame searing and 8-in-1 cooking versatility, allowing you to smoke, bake, braise, roast, grill, barbecue, char-grill, and sear. The grill is equipped with a digital control board with an LCD screen, capable of reaching temperatures from 180° to 500°F.

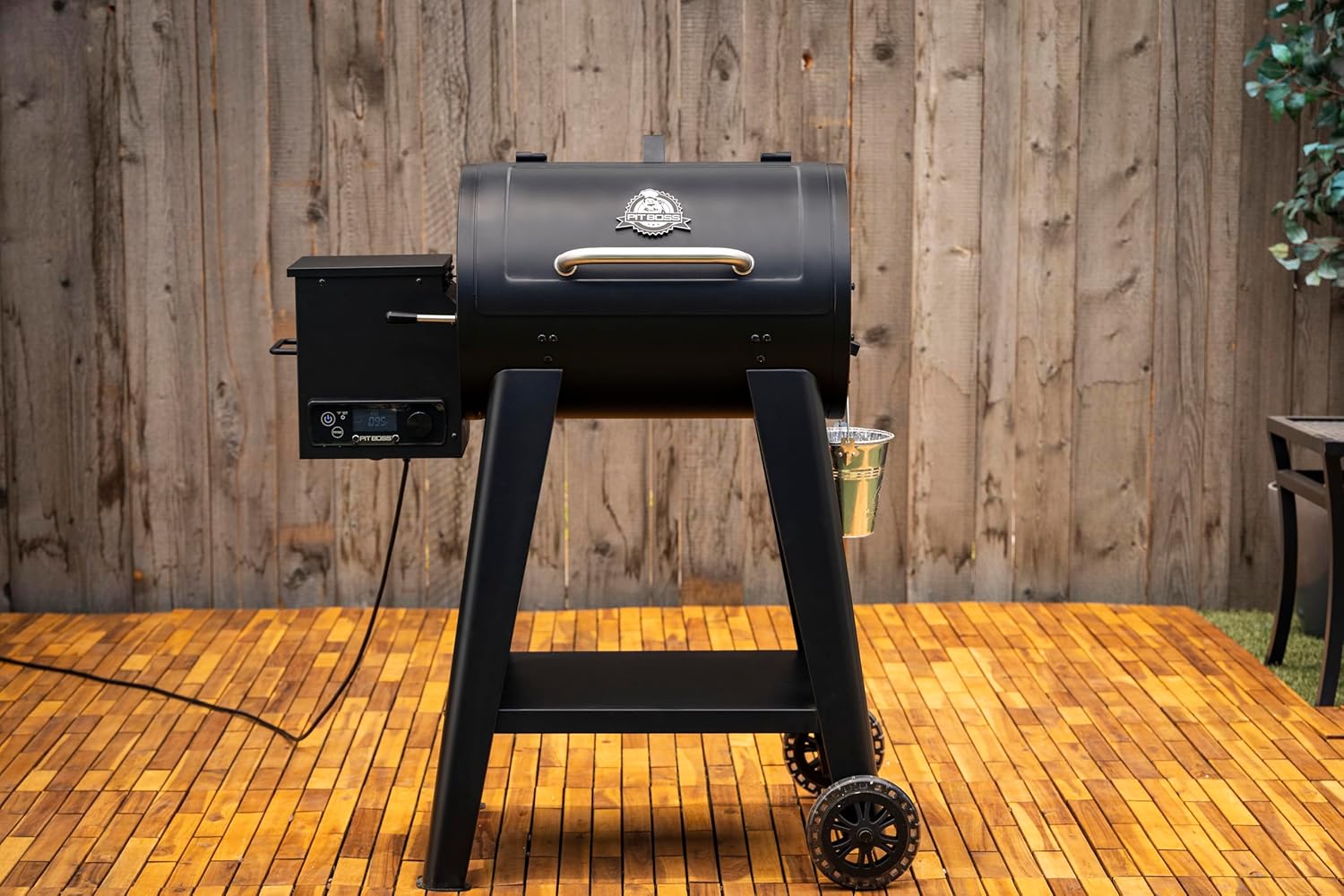

Mynd 1: Framan view of the Pit Boss 500FB2 Pellet Grill.

Uppsetning

Proper assembly and initial setup are crucial for optimal performance and safety. Ensure all components are present and undamaged before beginning assembly.

Samkomu lokiðview

The grill requires assembly of its base, legs, and main body. Pay close attention to the orientation of parts, especially the leg pieces, to ensure correct alignment for the bottom shelf and wheels.

Figure 2: Pit Boss 500FB2 Pellet Grill fully assembled.

Upphafleg brennsla (krydd)

Before cooking any food, perform an initial burn-off to season the grill and remove any manufacturing oils or residues. Fill the hopper with pellets, set the temperature to 400°F (204°C), and let it run for approximately 45 minutes with the lid closed and no food inside.

Video 1: Assembly and Initial Burn-Off of a Pit Boss Pellet Grill.

Notkunarleiðbeiningar

Pellet Loading and Temperature Control

Ensure the pellet hopper is filled with high-quality wood pellets. The digital control board allows precise temperature adjustments from 180°F to 500°F in 5°F increments. Use the dial to select your desired cooking temperature.

Myndband 2: Yfirview of Controls and Pellet Loading.

8-in-1 Cooking Versatility

The Pit Boss 500FB2 offers multiple cooking functions:

• Reykur: For infusing deep smoky flavor at lower temperatures.
• Bake/Roast/Braise: For indirect cooking at moderate temperatures.
• Grill/Barbecue: For traditional grilling.
• Char-Grill/Sear: Utilize the Flame Broiler™ Lever for direct flame searing up to 1,000°F.

Figure 3: Food cooking inside the Pit Boss 500FB2 Pellet Grill.

Video 3: Demonstrating the ease of use and temperature settings.

Viðhald

Regluleg þrif og viðhald lengir líftíma grillsins og tryggir stöðuga virkni.

Cleaning the Grill Grates and Interior

Allow the grill to cool completely before cleaning. Remove the cooking grates and clean them with a grill brush. The interior can be wiped down to remove ash and grease buildup. The grease bucket should be emptied regularly to prevent overflow.

Mynd 4: Hlið view of the grill, highlighting the grease bucket.

Video 4: Grease management and interior view.

Úrræðaleit

If you encounter issues with your grill, consider the following common problems and solutions:

• Hitastig: Ensure the hopper has sufficient pellets and the lid is kept closed as much as possible. External factors like cold weather can affect cooking times.
• Grillið fer ekki í gang: Check the power connection and ensure the outlet is functional. A faulty breaker or igniter may require professional inspection or replacement.
• Pellet Flow Issues: Ensure the hopper is free of debris or blockages that could impede pellet delivery to the burn pot.

Tæknilýsing

Ábyrgð og stuðningur

The Pit Boss 500FB2 Pellet Grill is backed by a best-in-class 5-year warranty, ensuring peace of mind for your investment. For customer support, refer to the contact information provided with your product documentation or visit the official Pit Boss websíða.
