Kivsin Self-Cleaning Smart Cat Litter Box ZDMSP-1 User Manual

1. Inngangur

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Kivsin Self-Cleaning Smart Cat Litter Box, model ZDMSP-1. This automatic litter box is designed to simplify pet care by offering self-cleaning functionality, Wi-Fi connectivity for app control, and advanced odor elimination.

Helstu eiginleikar eru:

• Áreynslulaus þrif: Automatic self-cleaning mechanism reduces manual scooping.
• Aukið öryggi: Equipped with sensors to detect your cat's presence, preventing cleaning cycles when the cat is inside.
• Lyktarstjórnun: Advanced system effectively neutralizes unpleasant odors.
• Hljóðlát aðgerð: Designed for minimal noise disruption in your home.
• Durable and Eco-friendly: Constructed with high-quality, sustainable materials.

Image 1.1: Kivsin Self-Cleaning Smart Cat Litter Box with included accessories and a cat.

2. Öryggisupplýsingar

Please read all safety instructions carefully before operating the device to ensure the well-being of your pet and household.

• Tegund rusl: Never use non-clumping or poorly clumping cat litter. Only use clumping cat litter for proper operation and to prevent damage to the unit.
• Cat Weight: This device is suitable for cats weighing between 2.2 and 17.6 pounds (1 kg to 8 kg).
• Öryggi barna: Keep children away from the device during operation. This is not a toy.
• Skynjaravörn: The litter box is equipped with sensors that detect your cat's presence. The cleaning cycle will pause or not initiate if a cat is detected inside or near the entrance. Do not interfere with these sensors.
• Aflgjafi: Use only the provided power adapter. Ensure the power cord is not damaged or pinched.
• Staðsetning: Place the litter box on a flat, stable surface. Do not place it near water sources or in excessively humid environments.
• Neyðarstopp: The device features an emergency stop function if a cat approaches or enters during operation.

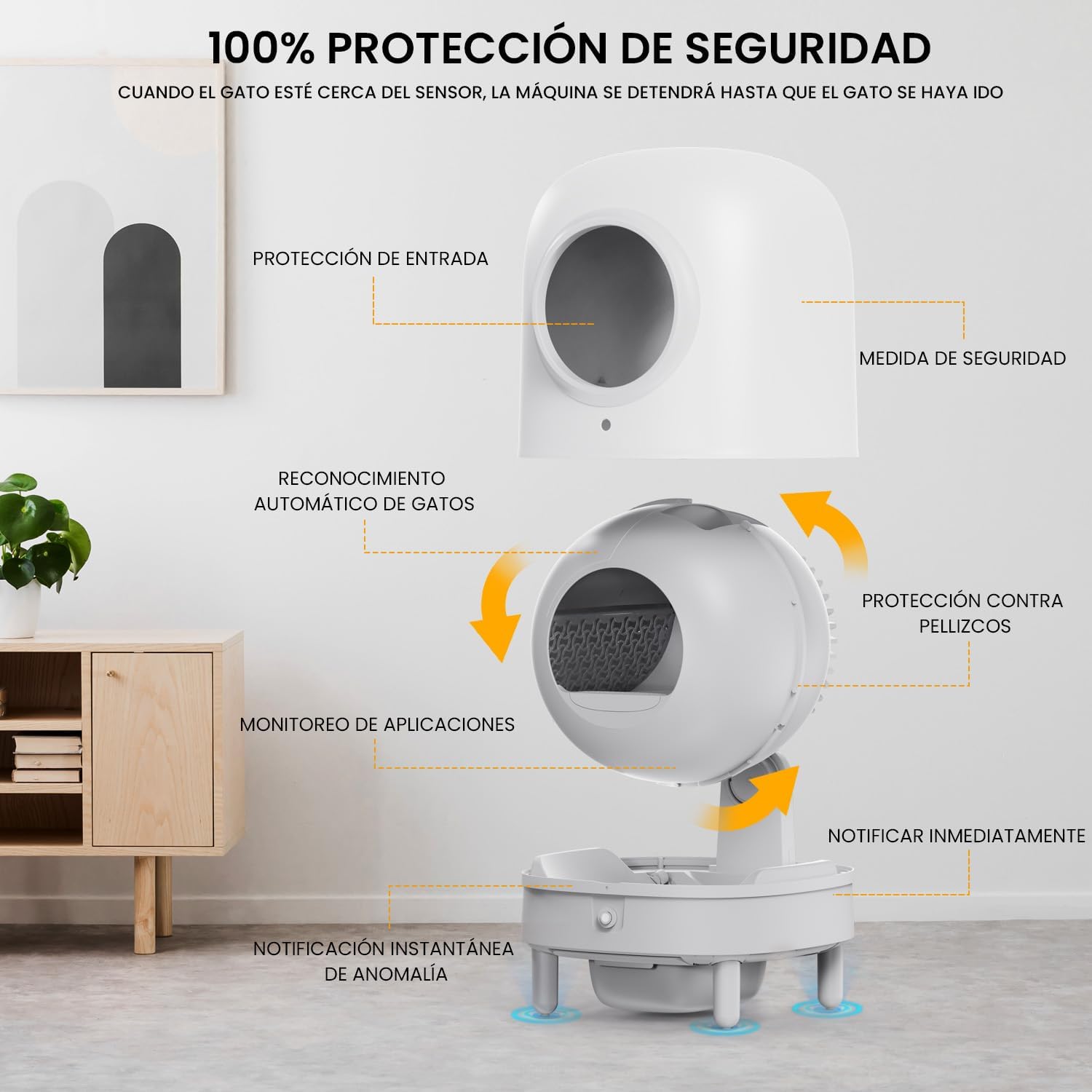

Mynd 2.1: Lokiðview of the 100% safety protection features, including sensors and automatic recognition.

3. Vöru lokiðview og íhlutir

Familiarize yourself with the main parts of your Kivsin Smart Cat Litter Box.

3.1 Aðaleining

The main unit houses the rotating drum, motor, and control panel. It is designed for easy access and cleaning.

3.2 Waste Drawer

Located at the bottom, the waste drawer collects clumped litter after the cleaning cycle. It is removable for easy disposal.

3.3 Control Panel/Indicator Light

A single button/indicator light on the front provides status updates and allows for manual operation.

3.4 Skynjarar

Multiple sensors are integrated to detect cat presence, waste levels, and ensure safe operation.

Mynd 3.1: Sundurtekin view of the litter box, highlighting washable components.

4. Uppsetning

4.1 Upphafleg samsetning

1. Taktu alla íhluti úr umbúðunum.
2. Setjið aðaleininguna á stöðugt, slétt yfirborð.
3. Insert the waste drawer into its designated slot at the bottom of the unit.
4. Connect the power adapter to the litter box and then to a power outlet.

4.2 Bæta við kattasandi

Open the top cover or access panel and pour clumping cat litter into the rotating drum. Ensure the litter level is between the minimum and maximum fill lines indicated inside the drum. Do not overfill.

4.3 Tenging við Wi-Fi og forrit

The Kivsin Smart Cat Litter Box supports 2.4GHz Wi-Fi connectivity for app control.

1. Download the official Kivsin app from your smartphone's app store (iOS or Android).
2. Búðu til reikning eða skráðu þig inn.
3. Follow the in-app instructions to add your device. This typically involves putting the litter box into pairing mode (refer to the device's indicator light sequence) and connecting it to your home's 2.4GHz Wi-Fi network.
4. Once connected, you can monitor and control the litter box remotely.

Image 4.1: App control interface and Wi-Fi connectivity.

5. Notkunarleiðbeiningar

5.1 Sjálfvirk hreinsunarlota

After your cat uses the litter box and exits, the integrated sensors will detect their departure. Following a preset delay (to allow clumps to form), the automatic cleaning cycle will initiate. The internal drum will rotate, sifting clean litter and depositing waste into the sealed waste drawer.

5.2 Handvirk þrif

You can initiate a cleaning cycle manually via the control button on the device or through the mobile app. Refer to the app interface for specific options like 'Shovel' or 'Clean Now'.

5.3 Eiginleikar forritastjórnunar

The Kivsin app provides comprehensive control and monitoring:

• Fjarþrif: Start a cleaning cycle from anywhere.
• Notkunartölfræði: Monitor your cat's litter box usage frequency and duration.
• Lyktareftirlit: Activate or adjust odor elimination settings.
• Svefnhamur: Schedule 'Do Not Disturb' periods to prevent cleaning cycles during specific times (e.g., overnight).
• Tilkynningar: Receive alerts for full waste drawer, low litter, or system anomalies.

5.4 Litter Compatibility

The Kivsin Smart Cat Litter Box is compatible with various types of clumping cat litter, including plant-based, bentonite, and mixed litters. Ensure the litter forms solid clumps for optimal performance.

Image 5.1: Compatible cat litter types.

Image 5.2: Odor control system in action.

6. Viðhald

Regular maintenance ensures optimal performance and hygiene of your litter box.

6.1 Emptying the Waste Drawer

When the app notifies you that the waste drawer is full, or approximately every 5-7 days depending on usage, remove the drawer, dispose of the waste, and replace the liner if used. Clean the drawer with mild soap and water if necessary.

6.2 Hreinsun á aðaleiningunni

The top cover and the ball container (rotating drum) are washable. Disassemble these parts as shown in Image 3.1. Wash them with mild detergent and water, then dry thoroughly before reassembling. The motor chassis is NOT washable; wipe it clean with a damp klút.

6.3 Replacing Deodorizing Cartridge (if applicable)

If your model includes a deodorizing cartridge, replace it according to the manufacturer's recommendations or when odor control effectiveness diminishes. Refer to the app for replacement reminders.

Image 6.1: Components suitable for washing and cleaning.

7. Bilanagreining

If you encounter issues with your Kivsin Smart Cat Litter Box, refer to the following common problems and solutions.

If the problem persists after attempting these solutions, please contact Kivsin customer support for further assistance.

8. Tæknilýsing

Image 8.1: Product dimensions and capacity.

Image 8.2: Illustration of the low noise operation.

9. Ábyrgð og stuðningur

For warranty information, please refer to the documentation included with your purchase or contact Kivsin customer support directly. If you require technical assistance, have questions about operation, or need to report an issue, please reach out to our support team.

Samskiptaupplýsingar:

• Refer to your product packaging or the official Kivsin websíðu fyrir nýjustu tengiliðaupplýsingar.
