1. Kerfi lokiðview
This manual provides essential information for the installation, operation, and maintenance of your Goodman 2 TON 13.8 SEER2 Downflow R-32 AC System. This complete system includes the GLXS3BN2410 Air Conditioner, the GC9S800603AN Furnace, and the CAPTA3022A3 Coil. It is designed to provide efficient cooling and consistent heating for your home.
This system is certified by AHRI under certificate number 215323252.
Mynd 1: Yfirview of the Goodman 2 TON 13.8 SEER2 Downflow R-32 AC System, showing the outdoor condenser, indoor furnace, and evaporator coil.
1.1 lykilhlutir
- GLXS3BN2410 Air Conditioner (Condenser): The outdoor unit responsible for cooling. Features 13.8 SEER2 efficiency, service valves, gauge ports, and inspection points. Pre-charged for 15’ of tubing.
- GC9S800603AN Gas Furnace: The indoor unit providing heating. An 80% AFUE, 60k BTU single-stage multi-speed ECM gas furnace. Features a stainless-steel heat exchanger and silicon nitride igniter.
- CAPTA3022A3 Downflow R-32 Coil: The indoor evaporator coil, constructed with corrosion-resistant aluminum and grooved tubing for enhanced heat transfer. Designed for downflow applications and is the same width as the furnace.
1.2 Mikilvæg atriði sem þarf að hafa í huga
This system does not comply with Federal regulations for the following States and cannot be shipped to or installed in: AL, AR, AZ, CA, DE, FL, GA, KY, LA, MD, MS, NC, NM, NV, OK, SC, TN, TX, and VA. Please verify local regulations before purchase and installation.
Myndband: Yfirview of AC with Furnace Systems, explaining the main components and their functions within a complete HVAC setup.
Video: Explanation of different HVAC system types, including split systems, ductless systems, and packaged units, and how to identify your system's configuration (upflow, downflow, horizontal).
2. Uppsetning og uppsetning
Installation of this HVAC system must be performed by a qualified and licensed HVAC technician. Improper installation can lead to system malfunction, safety hazards, and void the warranty.
2.1 Athuganir fyrir uppsetningu
- Verify that the system components (condenser, furnace, coil) match the model numbers specified for your installation.
- Ensure the installation site complies with all local building codes and regulations, especially regarding refrigerant and furnace types.
- Confirm the correct airflow configuration (downflow) for your home's ductwork.
- For natural gas furnaces, ensure the gas supply is compatible. If using liquid propane (LP), a separate LP conversion kit is required.
2.2 Staðsetning íhluta
The outdoor condenser (GLXS3BN2410) should be placed on a level pad, ensuring adequate clearance for airflow and maintenance. The indoor furnace (GC9S800603AN) and coil (CAPTA3022A3) are designed for downflow applications and should be installed in a configuration that allows air to enter from the top and be pushed out the bottom into the ductwork.
Figure 2: The Goodman GLXS3BN2410 Condenser Unit, an outdoor component of the AC system.

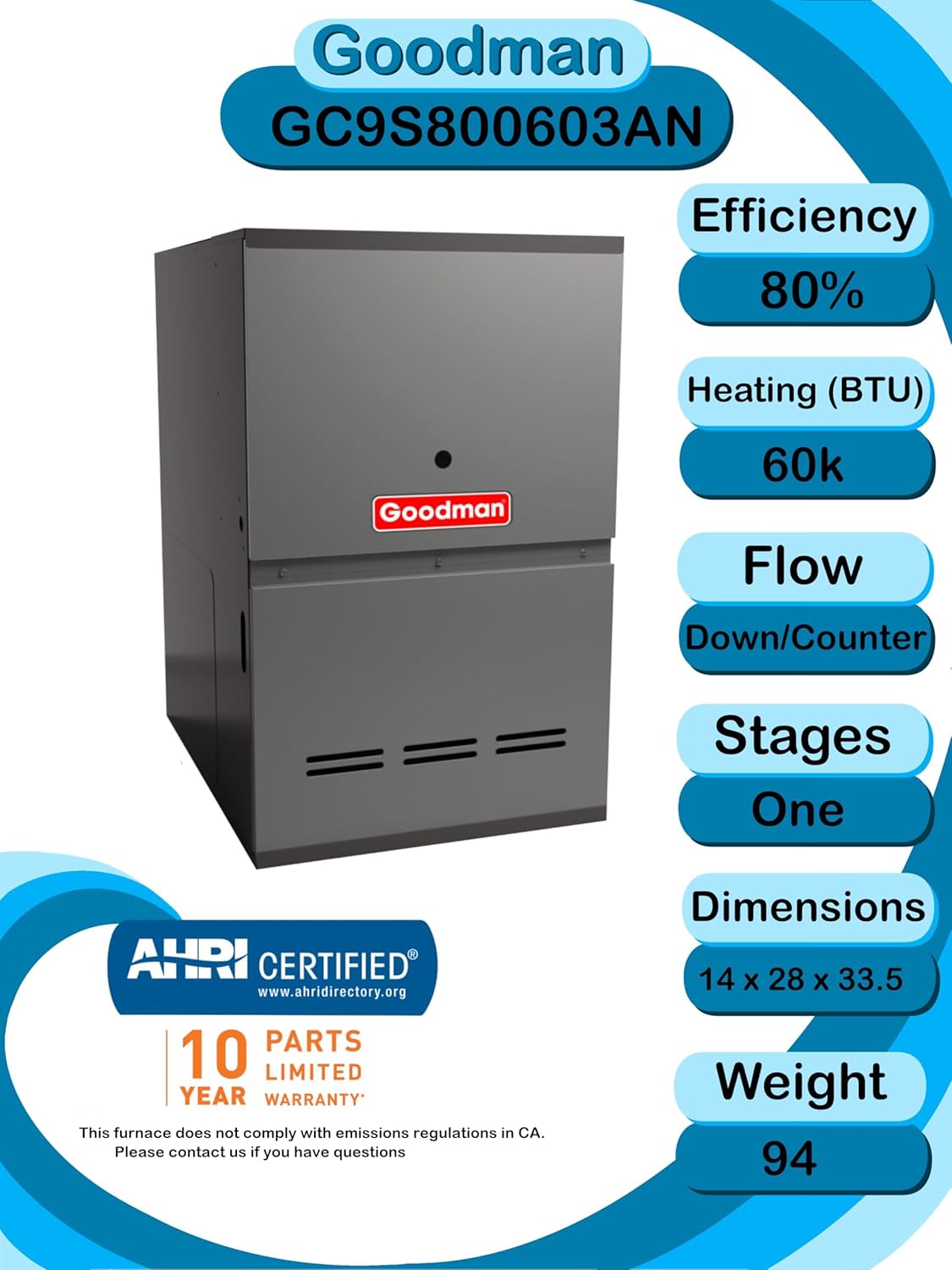

Figure 3: The Goodman GC9S800603AN Furnace Unit, an indoor component for heating.
Figure 4: The Goodman CAPTA3022A3 Downflow Coil Unit, designed to sit atop the furnace for efficient cooling.
2.3 Refrigerant (R-32) Information
This system uses R-32 refrigerant. R-32 is a more energy-efficient and environmentally friendly refrigerant compared to older types. It requires specific handling procedures due to its slight flammability. Ensure your installer is trained and equipped for R-32 systems.
Video: Information regarding R-32 refrigerant regulations and its properties, including efficiency and safety considerations.
Video: A short clip discussing facts versus fiction about R-32 refrigerant, highlighting its widespread use and environmental benefits.
3. Notkunarleiðbeiningar
Your Goodman HVAC system is controlled by a thermostat. Refer to your thermostat's user manual for specific programming and operation details.
3.1 Kæliaðgerð
- Set your thermostat to "Cool" mode.
- Adjust the desired temperature. The system will automatically cycle on and off to maintain the set temperature.
- Ensure all vents are open and unobstructed for optimal airflow.
3.2 Upphitunarrekstur
- Set your thermostat to "Heat" mode.
- Adjust the desired temperature. The furnace will ignite and operate to warm your home.
- If your furnace is connected to an LP conversion kit, ensure the LP tank has sufficient fuel.
3.3 Viftuaðgerð
- The fan can be set to "Auto" (runs only when heating or cooling) or "On" (runs continuously). "Auto" is generally recommended for energy efficiency.
4. Viðhald
Regular maintenance is crucial for the efficiency, longevity, and safe operation of your HVAC system. It is recommended to have a qualified technician perform annual inspections and tune-ups.
4.1 Skipt um loftsíu
- Check your air filter monthly and replace it every 1-3 months, or more frequently if you have pets or allergies. A dirty filter restricts airflow and reduces efficiency.
- Locate the filter slot in your furnace or air handler. Note the size and type of filter for replacement.
4.2 Outdoor Unit (Condenser) Maintenance
- Haldið svæðinu í kringum útieininguna hreinu af rusli, laufum og gróðri til að tryggja rétta loftflæði.
- Gently clean the condenser coils with a soft brush or hose to remove dirt and dust. Avoid bending the fins.
4.3 Fagleg þjónusta
- Schedule professional maintenance annually, ideally before the heating and cooling seasons.
- A technician will inspect electrical connections, refrigerant levels, coil cleanliness, and overall system performance.
5. Bilanagreining
Áður en þú hringir í þjónustuver skaltu athuga eftirfarandi algeng vandamál:
| Vandamál | Möguleg orsök | Lausn |
|---|---|---|
| Kerfið kælir/hitar ekki | Thermostat set incorrectly, dirty air filter, tripped circuit breaker, clogged condensate drain. | Check thermostat settings, replace filter, reset breaker, clear drain. |
| Ekkert afl til einingarinnar | Tripped circuit breaker, emergency shut-off switch engaged. | Check electrical panel, ensure all switches are in the "On" position. |
| Óvenjuleg hljóð | Lausir hlutar, rusl í viftu, vandamál með mótor. | Turn off unit and inspect for visible obstructions. If noise persists, contact a technician. |
| Vatnsleki | Clogged condensate drain, frozen evaporator coil. | Clear condensate drain. If coil is frozen, turn off AC and allow to thaw, then check airflow. |
Ef úrræðaleitin leysir ekki vandamálið skaltu hafa samband við hæfan HVAC-tæknimann til að fá aðstoð.
6. Tæknilýsing
6.1 Almennar kerfisupplýsingar
- Vörumerki: Góður maður
- Kerfisgerð: 2 TON 13.8 SEER2 Downflow R-32 AC System with 80% AFUE 60k BTU Furnace
- AHRI Certificate Number: 215323252
- Heildarþyngd kerfis: Um það bil 191 pund
6.2 GLXS3BN2410 Condenser Specifications
Figure 5: EnergyGuide label for the Goodman GLXS3BN2410 Central Air Conditioner, showing an efficiency rating of 13.40 SEER2.
- Gerðarnúmer: GLXS3BN2410
- Tonnage: 2 tonn
- Skilvirkni: 13.8 SEER2 (Cooling Only)
- Kælimiðill: R-32
- Stærðir: Refer to product documentation for exact dimensions.
6.3 GC9S800603AN Furnace Specifications
Figure 6: EnergyGuide label for the Goodman GC9S800603AN Furnace, indicating an efficiency rating of 80.0 AFUE.
- Gerðarnúmer: GC9S800603AN
- Gerð eldsneytis: Natural Gas (LP conversion kit required for Liquid Propane)
- Skilvirkni: 80% AFUE
- Heating BTU: 60,000 BTU
- Loftflæði: Downflow/Counterflow
- Stages: Einn Stage
- Stærðir: Refer to product documentation for exact dimensions.
6.4 CAPTA3022A3 Coil Specifications
- Gerðarnúmer: CAPTA3022A3
- Tonnage: 2.0 - 2.5 tonn
- Kælimiðill: R-32 only
- Tengingar: 3/8" x 3/4"
- Stefna: Lóðrétt
- Stærðir: Refer to product documentation for exact dimensions.
Video: Explanation of SEER2 regulations and how they impact HVAC system efficiency ratings, effective January 1, 2023.
7. Upplýsingar um ábyrgð
This Goodman HVAC system comes with a 10-year parts limited warranty. To qualify for the full warranty, the system must be installed by a qualified installer and registered online within 60 days of installation. Online registration is not required in California.
Figure 7: A shield icon indicating a 10-year limited warranty for the product.
For complete warranty details and terms, please refer to the warranty documentation included with your product or contact Goodman customer support.
8. Þjónustudeild
For technical assistance, warranty claims, or any questions regarding your Goodman HVAC system, please contact Superior Home Supplies or an authorized Goodman service provider.
- Superior Home Supplies: Vísað er til kaupskjölanna til að fá upplýsingar um tengiliði.
- Goodman Official Websíða: www.goodmanmfg.com
When contacting support, please have your model numbers (GLXS3BN2410, GC9S800603AN, CAPTA3022A3) and serial numbers readily available.
