Whirlpool W11449840 Washer Gear Case Replacement Part Instruction Manual

1. Vöru lokiðview

The Whirlpool W11449840 Washer Gear Case is a genuine OEM (Original Equipment Manufacturer) replacement part designed to drive the agitator and spin the basket within your washing machine. This component is crucial for the proper functioning of your appliance, ensuring efficient washing cycles.

As a genuine OEM part, it is manufactured to meet Whirlpool's engineering standards, ensuring compatibility and reliable performance with your appliance.

2. Mikilvægar öryggisupplýsingar

Before attempting any repair or installation, always prioritize safety. Failure to follow these instructions could result in electric shock, injury, or damage to your appliance.

• Aftengdu rafmagn: You must unplug the washing machine or shut off the house circuit breaker for the appliance before installing this part.
• Slökktu á vatnsveitunni: Make sure you turn off both the hot and cold water supplies to the washing machine.
• Notið hlífðarbúnað: Use appropriate personal protective equipment, such as gloves and safety glasses, during the repair process.
• Fagleg aðstoð: If you are not comfortable performing the repair, it is recommended to seek assistance from a qualified appliance technician.

3. Samhæfni

The W11449840 Washer Gear Case is compatible with select washing machines from Whirlpool, Kenmore, Maytag, and Admiral. To ensure proper fit and function, always verify compatibility with your specific washing machine model number before purchase and installation.

4. Uppsetningarleiðbeiningar

Replacing the washer gear case requires basic hand tools, some disassembly of the washing machine, and novice repair experience. The following steps provide a general overview; consult your specific washing machine's service manual for detailed instructions.

Nauðsynleg verkfæri:

• Basic hand tools (e.g., wrenches, screwdrivers, pliers)
• Innstungasett
• Pry tool (if needed for panel removal)

Almenn uppsetningarskref:

1. Undirbúið þvottavélina: Ensure the washing machine is disconnected from power and water supplies as per the safety instructions. Drain any remaining water.
2. Access the Gear Case: Depending on your washer model, this may involve removing the back panel, front panel, or tilting the washer. Carefully follow your model's service manual.
3. Aftengja íhluti: Disconnect any hoses, wires, or belts attached to the gear case or components obstructing its removal.
4. Remove Old Gear Case: Unbolt and carefully remove the old gear case from its mounting. Note the orientation and any gaskets or seals.
5. Install New Gear Case: Position the new Whirlpool W11449840 gear case, ensuring all mounting points align. Secure it with bolts, tightening them to the manufacturer's specifications.
6. Tengdu íhluti aftur: Reattach all hoses, wires, and belts that were disconnected. Double-check all connections for security.
7. Setjið þvottavélina saman aftur: Reinstall any panels or covers removed during disassembly.
8. Prófunaraðgerð: Restore power and water supply. Run a short test cycle to ensure the washer functions correctly and there are no leaks.

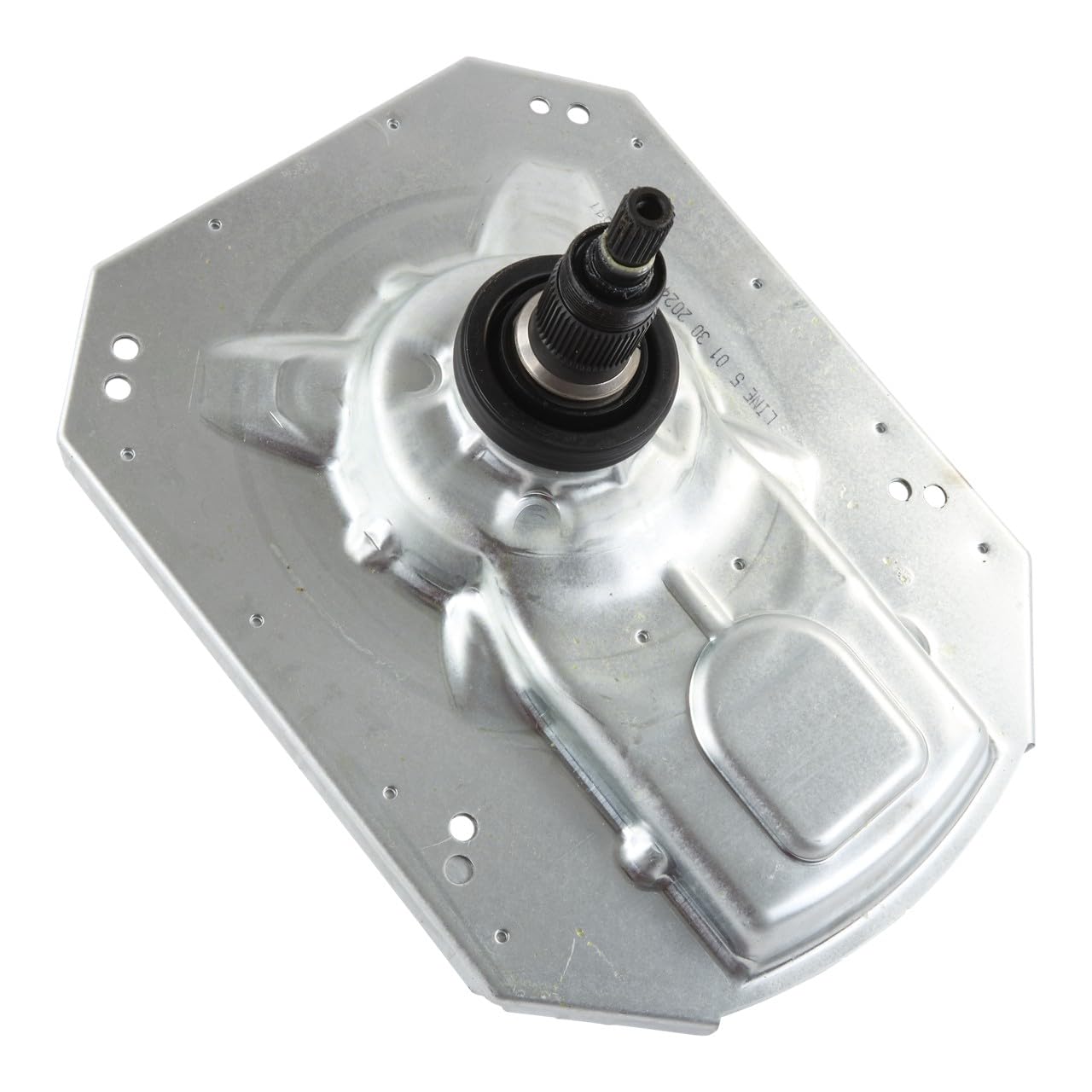

Mynd 1: Framan view of the Whirlpool W11449840 Washer Gear Case, showing the central shaft and mounting points.

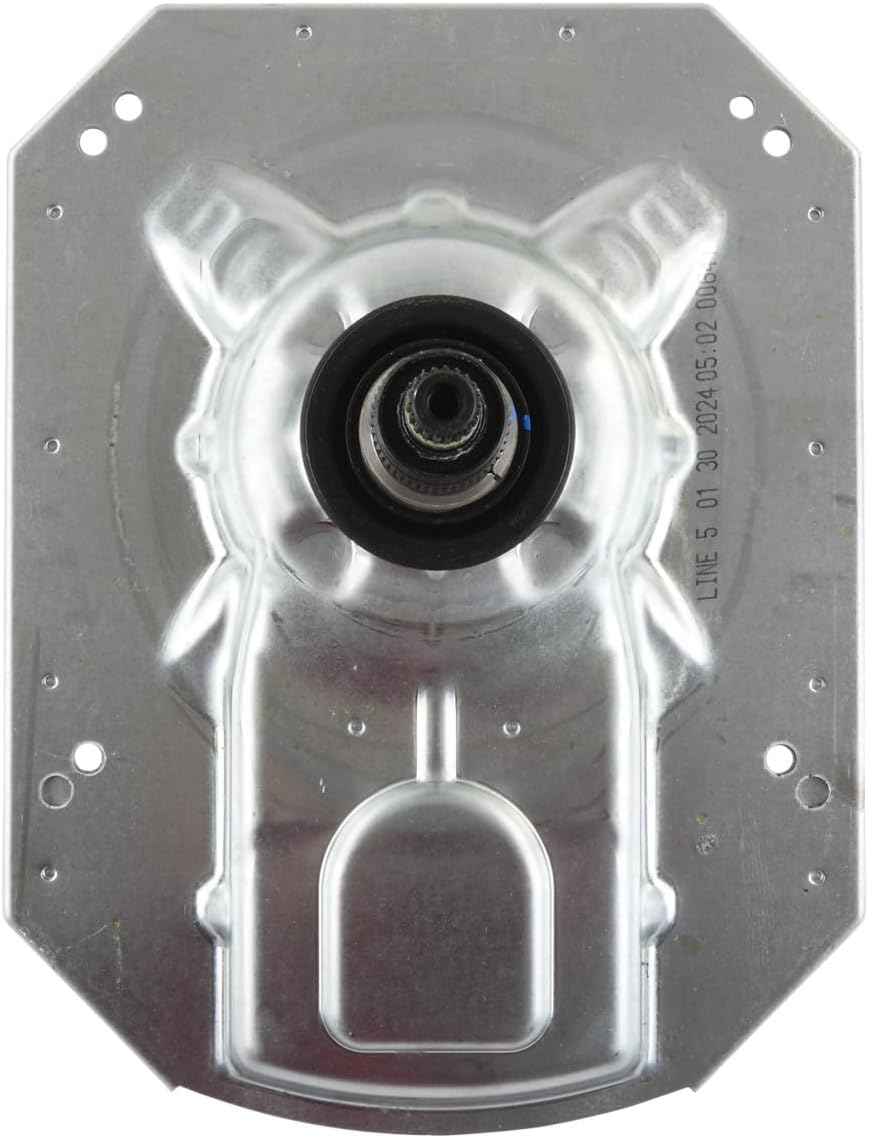

Mynd 2: Efst view of the Whirlpool W11449840 Washer Gear Case, highlighting the agitator drive spline.

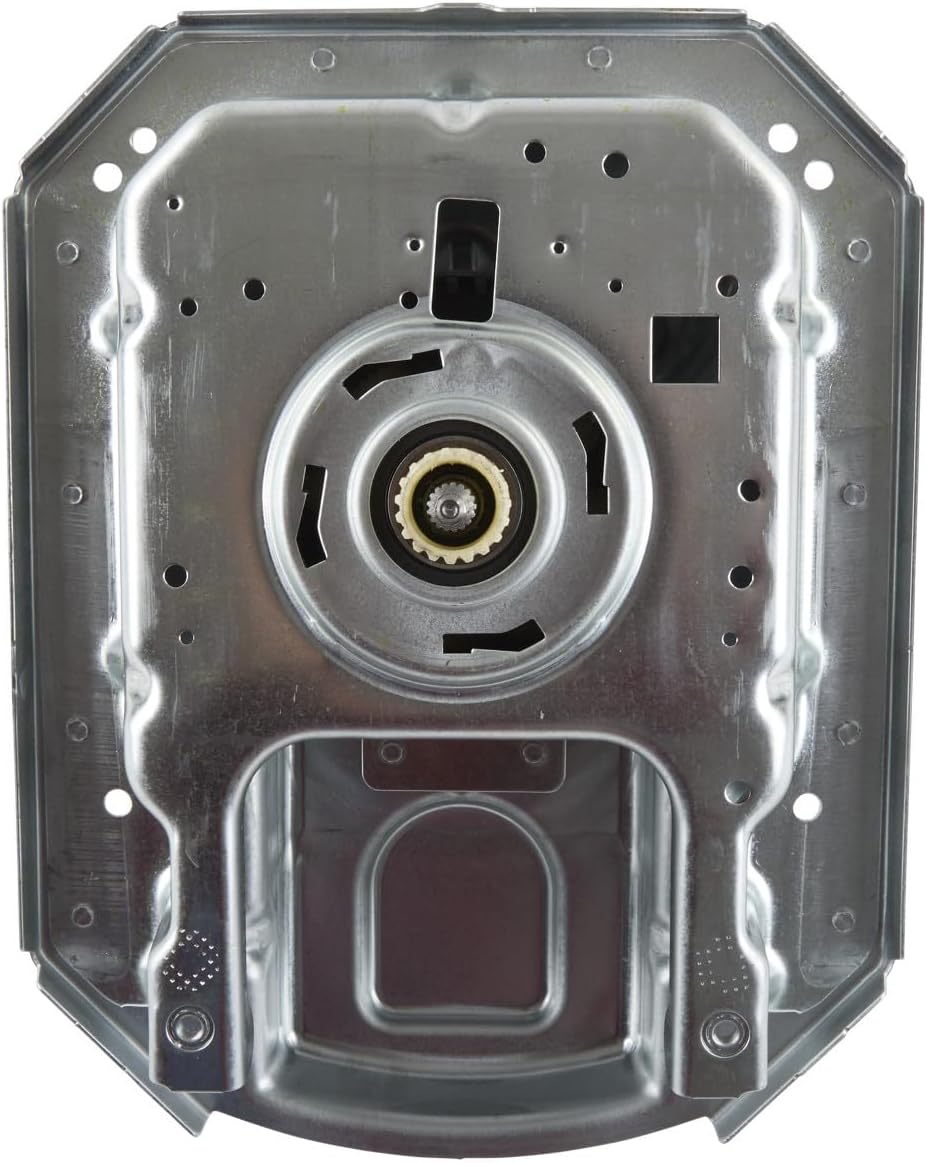

Mynd 3: Neðst view of the Whirlpool W11449840 Washer Gear Case, showing the drive pulley connection point.

5. Function of the Gear Case

The washer gear case is a mechanical assembly responsible for converting the rotational motion of the drive motor into the specific actions required for washing. It facilitates two primary functions:

• Órói: During the wash cycle, the gear case transmits power to the agitator, causing it to move back and forth, creating the necessary water currents to clean clothes.
• Snúningur: During the spin cycle, the gear case engages the spin basket, causing it to rotate at high speeds to extract water from the clothes.

A properly functioning gear case ensures efficient and effective washing and drying performance.

6. Viðhald

While the gear case itself is a sealed unit and does not require direct user maintenance, maintaining the overall cleanliness of your washing machine can contribute to the longevity of all its components, including the gear case.

It is recommended to use affresh® Washing Machine Cleaner Tablets (item W10135699) once a month. This helps reduce odor-causing residue that can build up in your washing machine's drain and other internal parts without proper care.

7. Úrræðaleit algeng vandamál

If your washing machine exhibits symptoms related to the gear case, consider the following common issues:

• No Agitation or Spin: If the washer fills with water but the agitator does not move or the basket does not spin, the gear case may be faulty or disconnected.
• Hávær hávaði: Grinding, clunking, or whining noises during agitation or spin cycles can indicate worn gears or bearings within the gear case.
• Leki: Oil or water leaking from the bottom of the washer, particularly near the center, could suggest a seal failure within the gear case.

If you suspect a gear case issue, further diagnosis by a qualified technician or careful inspection following your washer's service manual is advised.

8. Vörulýsing

9. Upplýsingar um ábyrgð

This Whirlpool Genuine OEM Washer Gear Case Replacement Part (W11449840) comes with a one-year warranty. This warranty covers defects in material and workmanship under normal use and service. Please retain your proof of purchase for warranty claims.

10. Þjónustudeild

For further assistance, technical support, or to inquire about other genuine Whirlpool parts, please visit the official Whirlpool brand store or contact Whirlpool customer service.

Whirlpool Brand Store: Visit the Whirlpool Store on Amazon
