FiiO TT13 Fully Automatic Vinyl Stereo Turntable Instruction Manual

1. Vöru lokiðview

The FiiO TT13 is a fully automatic vinyl stereo turntable designed for convenient and high-fidelity audio playback. It features a robust analog audio architecture, a powerful built-in phono preamp, and a durable aluminum construction. This manual provides essential information for setting up, operating, and maintaining your turntable.

Image: The FiiO TT13 turntable with its dust cover open, showcasing a vinyl record placed on the platter. The turntable is black with silver accents.

Image: The FiiO TT13 turntable in a warm, dimly lit room, with a record spinning on its platter, highlighting its aesthetic appeal for vinyl enthusiasts.

2. Upppakkning og upphafleg uppsetning

Carefully remove all components from the packaging. Ensure all protective materials are removed before assembly. The turntable includes a power cable and an RCA cable for audio output.

2.1 Installing the Platter and Drive Belt

1. Place the die-cast aluminum platter onto the spindle.
2. Locate the drive belt, typically found pre-installed or separately. Carefully stretch the drive belt over the motor pulley.
3. Rotate the platter a few times manually to ensure the belt is properly seated and not twisted.

2.2 Uppsetning tónarms

The FiiO TT13 features a fully automatic tonearm, simplifying operation. However, initial setup of the counterweight and anti-skating may be required for optimal performance and record longevity.

2.3 Tenging við hljóðkerfi

TT13 er með innbyggðum phono forstigi.amp, sem gerir kleift að tengjast beint við rafknúna hátalara eða amplifier's line input. Use the provided RCA cable to connect the turntable's ANALOG OUT to your audio system's input.

Mynd: Nærmynd view of the rear panel of the FiiO TT13 turntable, highlighting the 'ANALOG OUT' port and the external balance adjustment knob.

2.4 Rafmagnstenging

Connect the power adapter to the DC IN 12V port on the rear of the turntable, then plug it into a wall outlet. The TT13 supports a wide AC ~100-240V voltage svið.

Image: The FiiO TT13 turntable with an external power supply unit connected, demonstrating its DC/AC dual power supply design.

3. Notkunarleiðbeiningar

3.1 Grunnspilun

1. Settu vínylplötu á diskinn.
2. Select the appropriate speed (33 1/3 or 45 RPM) using the speed selector.
3. Ýttu á BYRJA button. The tonearm will automatically lift, move to the beginning of the record, and begin playback.
4. Ýttu á til að stöðva spilun HÆTTU button. The tonearm will automatically lift, return to its rest position, and the platter will stop spinning.

Image: A close-up of the FiiO TT13 turntable's tonearm positioned over a record, with visible control buttons for automatic start, stop, and loop playback.

3.2 Loop Playback

The TT13 supports automatic loop playback. After a record finishes playing, the tonearm will automatically return to the start and replay the record. This feature can be activated or deactivated via the remote control.

3.3 Aðgerðir fjarstýringar

Innrauð fjarstýringin sem fylgir veitir þægilegan aðgang að ýmsum aðgerðum:

• Kveikt/slökkt: Kveiktu eða slökktu á plötuspilara.
• Byrja/stöðva: Initiate or halt record playback.
• Endurtekið spil: Toggle loop playback mode.
• Lýsingarbirta: Adjust the intensity of the RGB & LED lights.
• Tónarmstefna: Fine-tune tonearm movement (for manual cueing or track selection).

Image: A hand holding the FiiO TT13 infrared remote control, showing buttons for power, play/pause, repeat, and light adjustments.

3.4 Bluetooth Connectivity (Bluetooth Model Only)

The FiiO TT13 Bluetooth version supports aptX/aptX Low Latency/aptX HD/SBC Bluetooth transmission for wireless audio streaming to compatible devices. Refer to your device's manual for pairing instructions.

Image: A close-up of the FiiO TT13 turntable's surface, showing the FiiO logo and indicators for aptX High-Res Bluetooth support.

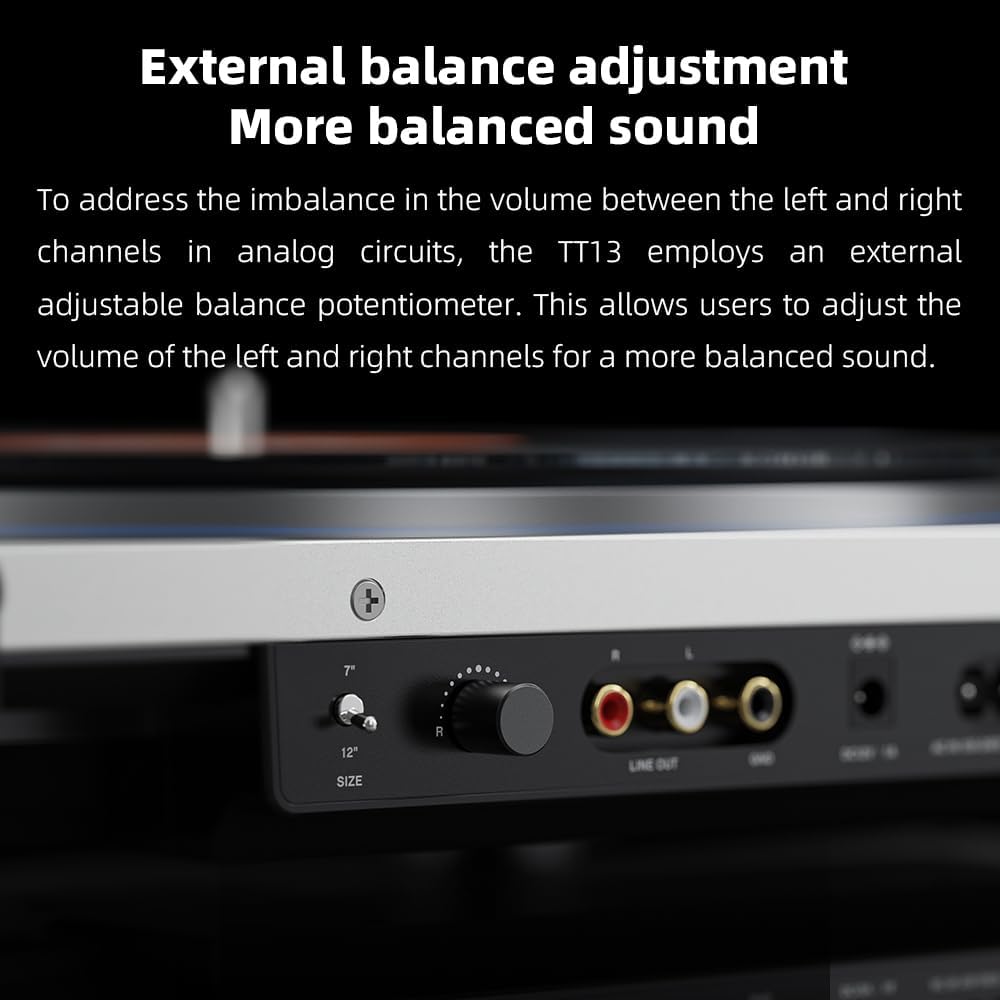

3.5 Leiðrétting á ytri jafnvægi

The turntable includes an external adjustable balance potentiometer to address any volume imbalance between the left and right analog channels. This allows for fine-tuning to achieve a more balanced sound output.

Mynd: Ítarleg view of the FiiO TT13 turntable's rear panel, showing the external balance adjustment knob, RCA line outputs, and a switch for phono/line output.

4. Features and Technology

• Fully Automatic Tonearm: Simplifies operation with one-touch play, pause, and automatic loop playback, protecting both the record player and vinyl records from mishandling.
• Powerful Built-in Phono Preamp: Delivers a line output level of 800mV@1kHz 0dB, offering superior signal-to-noise ratio and channel separation. This eliminates the need for an external phono preamp, allowing direct connection to powered speakers.
• Analog Audio Architecture: Utilizes two JRC5532 high-fidelity operational ampbjörgunaraðilar í tveggja mannatage amplification circuit, complemented by electrolytic capacitors and independent LDO power supplies for lower noise and pure analog sound.
• All-Aluminum Alloy Panel: The meticulously polished metal panel provides excellent anti-interference performance and robust shock absorption, minimizing environmental vibrations for stable audio quality. The unit weighs nearly 4kg.
• Fjarstýring: Allows control of power, playback, repeat, lighting brightness, and tonearm direction from a distance.
• DC/AC Dual Power Supply: Features a built-in switching power supply (100-240V) and an option for an external DC 12V-1A power supply for high-fidelity scenarios.
• External Balance Adjustment: A potentiometer allows users to adjust the volume balance between left and right channels.

Image: A block diagram detailing the specially-designed analog audio architecture of the FiiO TT13, showing the signal path through JRC5532 op-amps and power management.

Image: The FiiO TT13 turntable positioned between two white speakers, illustrating its powerful built-in phono preamp that allows direct connection to active speakers.

5. Viðhald

5.1 Rykhlíf

Always keep the dust cover closed when the turntable is not in use to protect it from dust and debris. Clean the dust cover with a soft, dry cloth.

5.2 Þrif

• Use a soft, lint-free cloth to gently wipe the turntable's chassis and platter.
• Forðist að nota sterk efni eða slípiefni, þar sem þau geta skemmt áferðina.
• For the stylus, use a specialized stylus cleaning brush and fluid, following the manufacturer's instructions.

6. Bilanagreining

If you encounter any issues with your FiiO TT13 turntable, please refer to the following common troubleshooting steps:

• Enginn kraftur: Ensure the power adapter is securely connected to both the turntable and a working power outlet.
• Ekkert hljóð: Verify that the RCA cables are correctly connected to your audio system's input. Check the input selection on your amplifier/receiver. Ensure the volume is turned up.
• Hljóð sem hoppar yfir eða er brenglað: Check if the record is clean and free of dust. Ensure the tonearm's counterweight and anti-skating settings are correctly calibrated. Verify the record is placed flat on the platter.
• Rangur hraði: Confirm that the correct speed (33 1/3 or 45 RPM) is selected for the record being played.
• Bluetooth Pairing Issues (Bluetooth Model Only): Ensure the turntable is in pairing mode and your receiving device is discoverable. Try restarting both devices.

If problems persist after attempting these steps, please contact FiiO customer support for further assistance.

7. Tæknilýsing

8. Ábyrgð og stuðningur

For warranty information and customer support, please refer to the official FiiO websíðuna eða hafið samband við söluaðila. Geymið kaupkvittunina vegna hugsanlegra ábyrgðarkröfu.

Opinber FiiO Websíða: www.fiio.com
