PYY Rafmagnsmatarhitari með tveimur hausum, fyrir atvinnuhúsnæði, Lamp Notendahandbók

1. Inngangur

Thank you for choosing the PYY Commercial 2-Head Electric Food Warming Lamp. This appliance is designed to efficiently maintain the temperature of prepared food, ensuring it remains warm and ready for service in commercial settings such as restaurants, buffets, and catering events. Please read this manual thoroughly before operation to ensure proper use, safety, and optimal performance.

2. Öryggisleiðbeiningar

Til að koma í veg fyrir meiðsli eða tjón skal alltaf fylgja þessum grunnöryggisráðstöfunum:

• Lestu allar leiðbeiningar áður en þú notar tækið.
• Ekki snerta heita fleti. Notaðu handföng eða hnappa.
• Til að verjast raflosti skal ekki dýfa snúru, klónum eða tækinu í vatn eða annan vökva.
• Náið eftirlit er nauðsynlegt þegar tæki er notað af eða nálægt börnum.
• Taktu úr sambandi þegar það er ekki í notkun og fyrir þrif. Látið kólna áður en hlutir eru settir á eða teknir af og áður en heimilistækið er hreinsað.
• Ekki nota tæki með skemmdri snúru eða kló, eða eftir að tækið bilar eða hefur skemmst á einhvern hátt. Hafið samband við þjónustuver viðskiptavina til að fá skoðun, viðgerð eða stillingu.
• Notkun aukabúnaðar sem framleiðandi heimilistækisins mælir ekki með getur valdið meiðslum.
• Ekki nota utandyra.
• Ekki láta snúruna hanga yfir brún borðs eða borðs eða snerta heita fleti.
• Ekki setja á eða nálægt heitum gas- eða rafmagnsbrennara eða í upphituðum ofni.
• Stingdu alltaf klónni við heimilistækið fyrst, stingdu síðan snúrunni í vegginnstunguna. Til að aftengjast skaltu snúa öllum stjórntækjum á „slökkt“ og taka síðan klóna úr innstungu.
• Ekki nota tækið til annarra nota en ætlað er.
• Gakktu úr skugga um að tækið sé komið fyrir á stöðugu, hitaþolnu yfirborði.
• Keep flammable materials away from the heating lamps.

3. Vöruhlutir

The PYY Commercial 2-Head Electric Food Warming Lamp samanstendur af eftirfarandi meginþáttum:

• Veginn grunnur
• Sveigjanlegur Lamp Poles (x2)
• Lamp Shades (x2)
• ETL Listed 250W E27 Bulbs (x2, plus spare bulbs included in package)
• Rocker Switches (x2, one on each lamp skugga)

Mynd 3.1: Yfirview of the PYY Commercial 2-Head Electric Food Warming Lamp with food trays.

4. Uppsetningarleiðbeiningar

1. Upptaka: Fjarlægið alla íhluti varlega úr umbúðunum. Geymið umbúðirnar til síðari geymslu eða flutnings.
2. Staðsetning: Place the weighted base on a stable, flat, and heat-resistant surface. Ensure there is adequate clearance around the unit for ventilation and to prevent accidental contact with hot surfaces.
3. Uppsetning peru: Screw the ETL listed 250W E27 bulbs into each lamp shade socket. Ensure they are securely tightened but do not overtighten.
4. Rafmagnstenging: Stingdu rafmagnssnúrunni í venjulega 110V rafmagnsinnstungu.

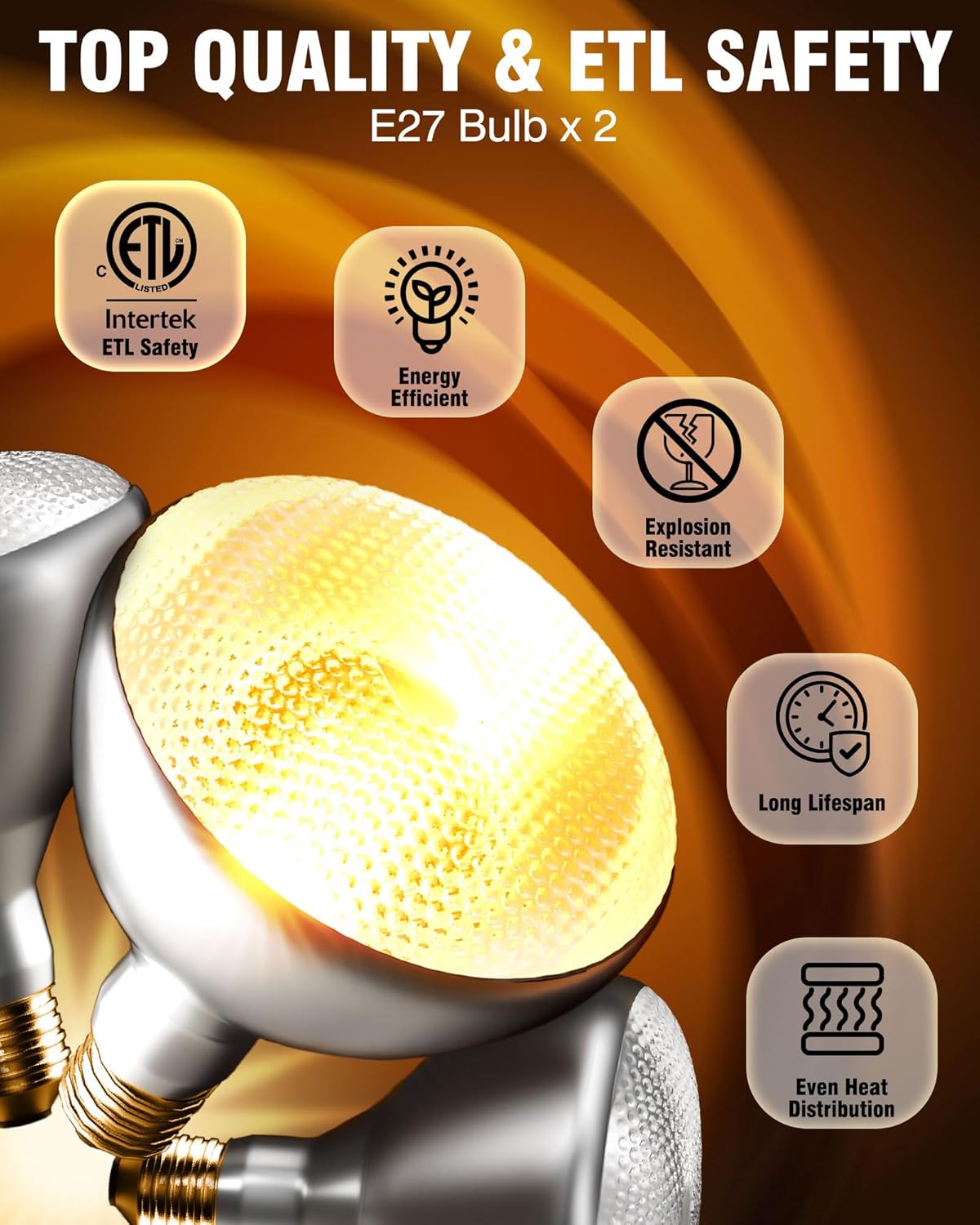

Figure 4.1: Detail of the ETL certified E27 bulb, emphasizing its features for efficient and safe operation.

5. Notkunarleiðbeiningar

1. Kveikt á: Once plugged in, locate the rocker switch on the back of each lamp shade. Flip the switch to the 'ON' position to activate the heating lamp.
2. Staðsetning: The flexible lamp poles allow for 360° adjustment. Position the lamp shades over the food trays to direct heat precisely where needed. The extended 5-inch lamp pole and weighted base ensure stability during adjustment.

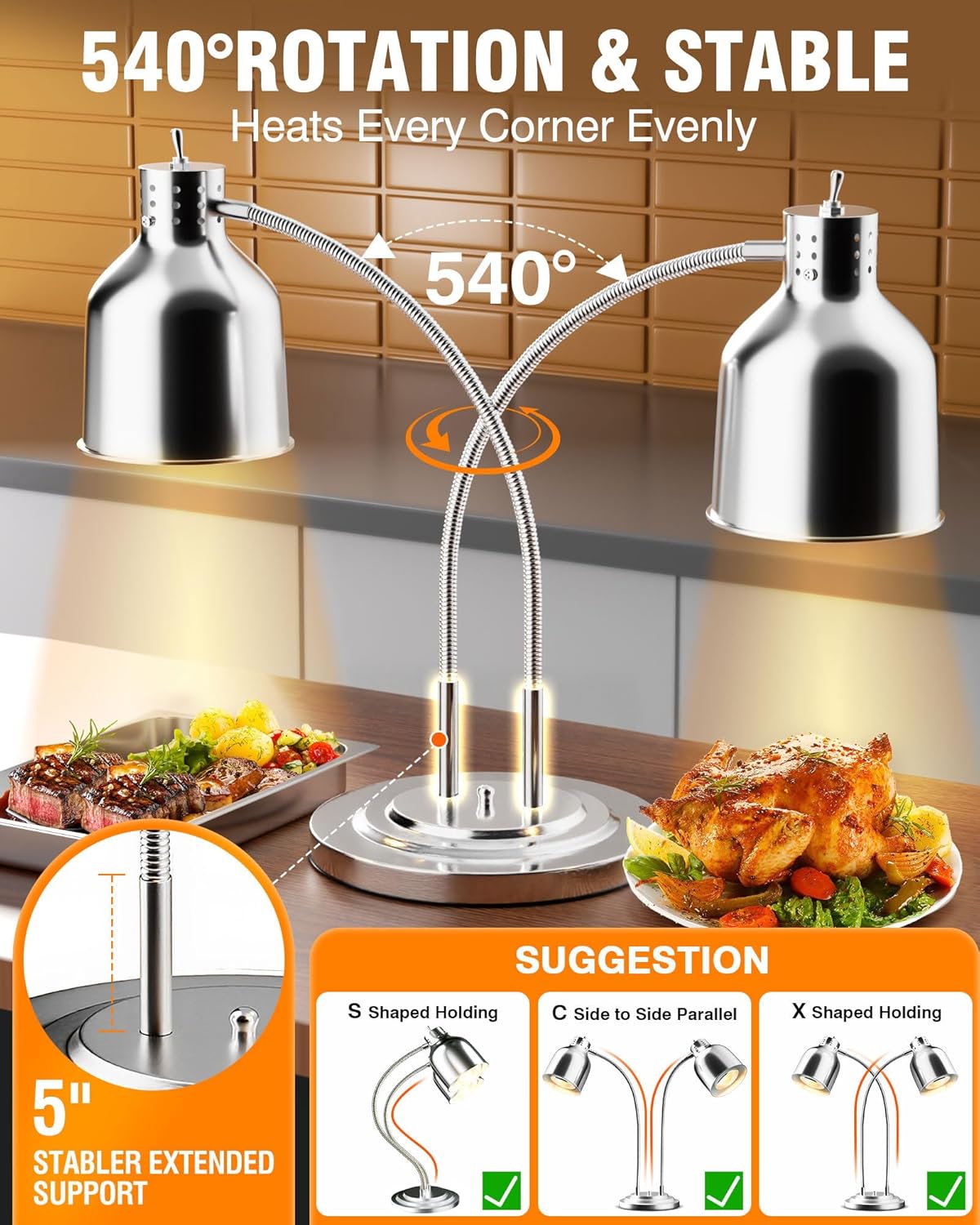

Mynd 5.1: Lamp's flexible design allows for 540° rotation and various configurations to evenly heat food.

3. Heat Adjustment (Height-based): The heating intensity can be adjusted by changing the height of the lamp shades above the food. Closer proximity results in higher temperatures (e.g., 189°F at 7.9 inches), while greater distance provides lower temperatures (e.g., 115°F at 15.8 inches).

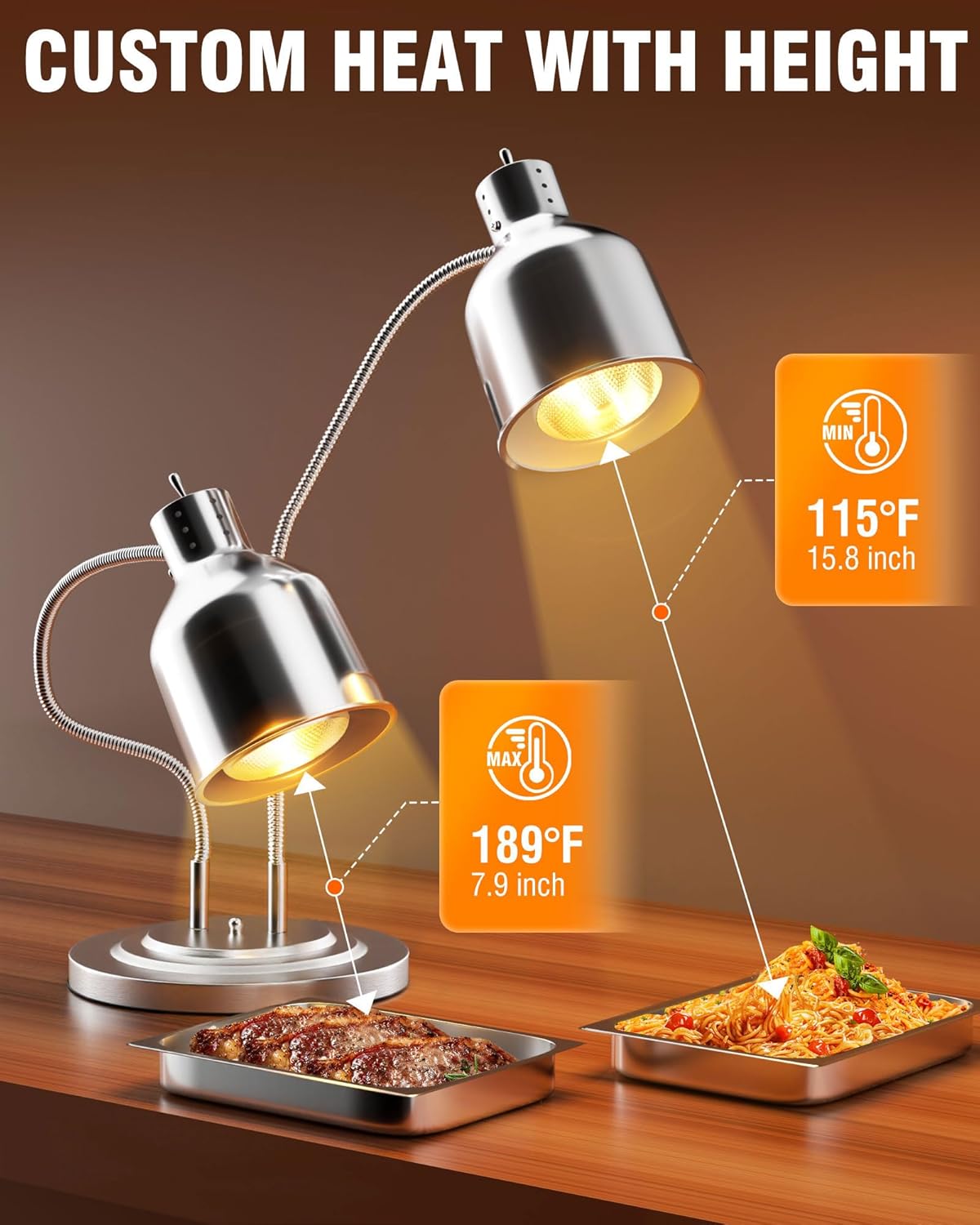

Figure 5.2: Illustrates how adjusting the lamp height influences the food temperature.

4. Food Warming: Place prepared food directly under the activated lamps. The warm light and heat will help maintain the food's temperature and visual appeal.
5. Slökkva á: When finished, flip the rocker switches on each lamp shade to the 'OFF' position. Unplug the appliance from the wall outlet.

5.1. Operational Video

6. Viðhald

1. Þrif: Before cleaning, ensure the appliance is unplugged and completely cooled. Wipe down the stainless steel surfaces with a soft, damp klút og milt þvottaefni. Notið ekki slípiefni eða dýfið tækinu í vatn.
2. Skipt um peru: If a bulb burns out, ensure the unit is unplugged and cool. Carefully unscrew the old bulb and replace it with a new ETL listed 250W E27 bulb. Spare bulbs are included in the package.
3. Geymsla: When not in use for extended periods, clean the unit and store it in a dry, safe place.

7. Bilanagreining

• Lamp kveikir ekki á:
  • Athugaðu hvort rafmagnssnúran sé vel tengd í virkan 110V innstungu.
  • Ensure the rocker switch on the lamp shade is in the 'ON' position.
  • Verify that the bulb is correctly screwed in and not burnt out. Replace if necessary.
• Insufficient warming:
  • Stilltu hæð lamp closer to the food.
  • Ensure the room temperature is not excessively cold, which can affect warming efficiency.
• Einingin er óstöðug:
  • Ensure the weighted base is placed on a completely flat and stable surface.
  • Avoid excessive force when adjusting the flexible lamp staurar.

8. Tæknilýsing

Figure 8.1: Detailed product dimensions and key specifications of the PYY Food Warming Lamp.

9. Ábyrgð og stuðningur

PYY offers a one-year warranty for this product, covering manufacturing defects and issues arising from normal use. Additionally, professional one-on-one technical support is available to assist with any questions or concerns you may have regarding the product's operation, maintenance, or troubleshooting.

If you encounter any issues or require assistance, please reach out to PYY customer service directly for resolution. Contact information can typically be found on the product packaging or the official PYY websíða.
