Hama WK-300 Multi-Device Wireless Keyboard Instruction Manual

1. Inngangur

Thank you for choosing the Hama WK-300 Multi-Device Wireless Keyboard. This compact office keyboard is designed for wireless control of computers, smartphones, and tablets, offering versatile connectivity via Bluetooth or a 2.4 GHz radio connection with a USB-A receiver. It allows simultaneous connection to up to three devices, providing a seamless experience for various tasks.

2. Öryggisleiðbeiningar

• Ekki opna tækið eða halda áfram að nota það ef það skemmist.
• Ekki reyna að þjónusta eða gera við vöruna sjálfur. Látið hæfa sérfræðinga eftir hvaða þjónustu sem er.
• Verndaðu vöruna gegn óhreinindum, raka og ofhitnun og notaðu hana aðeins í þurru umhverfi.
• Geymið þessa vöru, eins og allar rafmagnsvörur, þar sem börn ná ekki til.
• Ekki nota vöruna á svæðum þar sem notkun rafeindatækja er óheimil.
• Fargið umbúðum strax í samræmi við gildandi reglur á staðnum.

3. Innihald pakka

Vinsamlegast athugið hvort pakkinn innihaldi eftirfarandi hluti:

• 1 Hama WK-300 Multi-Device Wireless Keyboard
• 1 USB-A Receiver (typically stored in the battery compartment)
• 1 Leiðbeiningarhandbók

Athugið: AAA batteries are required for operation and are not included in the package.

4. Uppsetning

4.1 Uppsetning rafhlöðu

1. Finndu rafhlöðuhólfið neðst á lyklaborðinu.
2. Opnaðu hlífina á rafhlöðuhólfinu.
3. Settu eina AAA rafhlöðu í og ​​gætið þess að pólunin (+/-) sé rétt.
4. Lokaðu rafhlöðuhólfinu tryggilega.

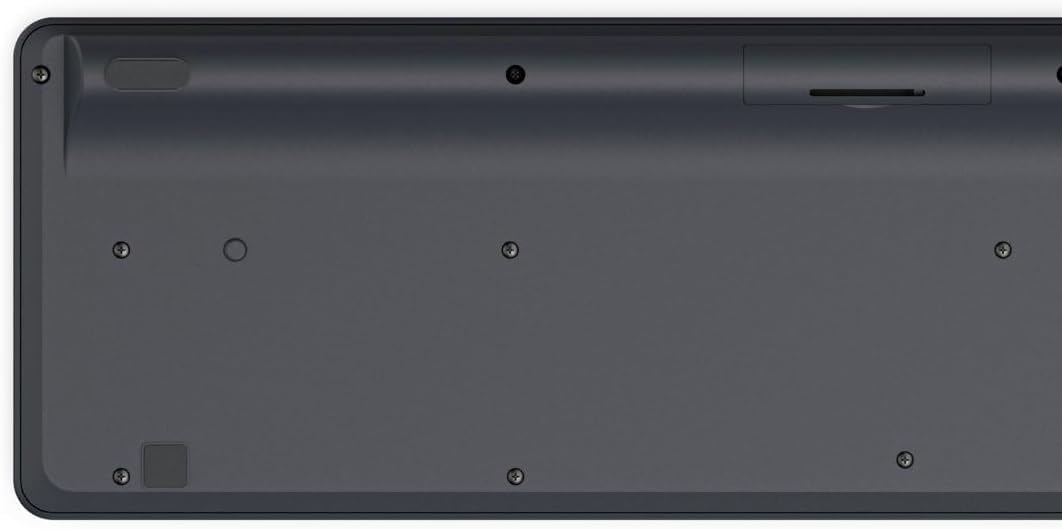

Image: Underside of the Hama WK-300 keyboard, illustrating the battery compartment and the storage slot for the USB receiver.

4.2 Tenging við tæki

The Hama WK-300 keyboard supports connection to up to three devices simultaneously via 2.4 GHz radio (channel 1) and Bluetooth (channels 2 and 3).

4.2.1 2.4 GHz Radio Connection (Channel 1)

1. Remove the USB-A receiver from its storage slot in the battery compartment.
2. Plug the USB-A receiver into a free USB port on your computer.
3. Switch the keyboard to channel 1 (usually indicated by a switch or button on the keyboard). The keyboard should automatically connect to your computer.

4.2.2 Bluetooth Connection (Channels 2 & 3)

1. Switch the keyboard to either channel 2 or channel 3.
2. Press and hold the pairing button (refer to keyboard layout for exact location, often combined with the channel switch) until the indicator light flashes, signifying pairing mode.
3. On your device (smartphone, tablet, computer), go to Bluetooth settings and search for new devices.
4. Select "Hama WK-300" from the list of available devices to complete the pairing process.

4.3 Skipta á milli tækja

To switch between connected devices, simply press the corresponding channel button (1, 2, or 3) on the keyboard. The keyboard will instantly connect to the selected device.

5. Notkun lyklaborðsins

5.1 Basic Typing Functions

The Hama WK-300 features a QWERTY layout with quiet keys, ensuring a comfortable and undisturbed typing experience. Simply begin typing after connecting to your device.

Mynd: Ofan frá og niður view of the Hama WK-300 keyboard, highlighting its 90% layout and key functions, including the Fn key for multimedia controls.

5.2 Multimedia Functions (Fn Keys)

The F keys (F1-F12) have secondary assignments for multimedia control. To activate these functions, press and hold the Fn key simultaneously with the desired F key. This allows for quick control of media playback, volume, and other system functions without navigating through system settings.

5.3 AI Assist Button

The dedicated Assist button activates a cross-program AI assistant, enhancing productivity by providing quick access to intelligent features.

5.4 Orkusparnaður

The keyboard is battery-operated and designed for efficiency, making it ideal for mobile use. It will enter a low-power state after a period of inactivity to conserve battery life.

6. Viðhald

6.1 Þrif á lyklaborðinu

To clean your keyboard, ensure it is turned off and disconnected from any devices. Use a soft, lint-free cloth slightly dampened with water or a mild cleaning solution. Avoid excessive moisture and abrasive cleaners. Do not immerse the keyboard in water.

6.2 Skipt um rafhlöðu

When the keyboard's performance diminishes or it stops responding, it may be time to replace the AAA battery. Follow the battery installation steps outlined in Section 4.1.

7. Bilanagreining

• Lyklaborð tengist ekki: Ensure the keyboard has fresh batteries and is switched to the correct channel (1 for 2.4 GHz, 2 or 3 for Bluetooth). For Bluetooth, ensure the keyboard is in pairing mode and your device's Bluetooth is enabled. For 2.4 GHz, ensure the USB receiver is properly inserted into your device.
• Lyklar svara ekki: Check battery level. If using 2.4 GHz, try plugging the USB receiver into a different USB port. If using Bluetooth, try re-pairing the keyboard with your device.
• Stöðug tenging: Ensure there are no strong interference sources nearby (e.g., other wireless devices, large metal objects). Try moving closer to your device.
• Margmiðlunarlyklar virka ekki: Gakktu úr skugga um að þú sért að ýta á Fn takkann samtímis við viðkomandi F-takkann.

8. Tæknilýsing

9. Ábyrgð

The Hama WK-300 Multi-Device Wireless Keyboard comes with a 5 árs ábyrgð. Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, refer to the official Hama websíðuna eða hafðu samband við þjónustuver.

10. Stuðningur

For further assistance, technical support, or to inquire about spare parts, please contact Hama customer service. You can find contact information on the official Hama webvefsvæði (www.hama.com) or through your local retailer.
