InnoGear skrifborðshringljós með standi F-601 leiðbeiningarhandbók

Inngangur

This manual provides comprehensive instructions for the setup, operation, and maintenance of your InnoGear Desk Ring Light with Stand, Model F-601. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

Innihald pakka

Gakktu úr skugga um að allir íhlutir séu til staðar í pakkanum:

• Hringljós
• Framlengingarstöng
• Klipp
• Grunnur

Figure 1: All components of the InnoGear Desk Ring Light as received in the package.

Uppsetning

1. Að setja saman standinn

1. Attach the extension rod to the base by screwing it clockwise until secure.
2. Screw the ring light onto the top of the extension rod.

Figure 2: Assembly of the ring light with the stand and illustration of clamp-on and stand-mounted configurations.

2. Using the Clip Mount

Alternatively, the ring light can be attached using the provided clip for monitors or laptops:

1. Unscrew the ring light from the extension rod.
2. Attach the clip to the ring light by screwing it into the 1/4" thread.
3. Securely clip the light onto your monitor, laptop, or other suitable surface.

Figure 3: The ring light attached to a laptop using the clip mount.

3. Rafmagnstenging

Connect the USB cable to a power source. For optimal and consistent performance, use a 5V/2A+ adapter or power bank. Avoid using a laptop USB port (typically 5V/1A) as lower current may cause flickering or unstable operation.

Figure 4: USB power connection and inline control panel.

Notkunarleiðbeiningar

1. Stjórnborð

The ring light is controlled via an inline remote on the USB cable:

• Aflhnappur: Kveikir eða slekkur ljósið.
• Stillingarrofi: Cycles through 5 studio-calibrated color presets (3000K-6000K).
• Birtustig + / -: Adjusts brightness levels from 10% to 100% (10 levels).

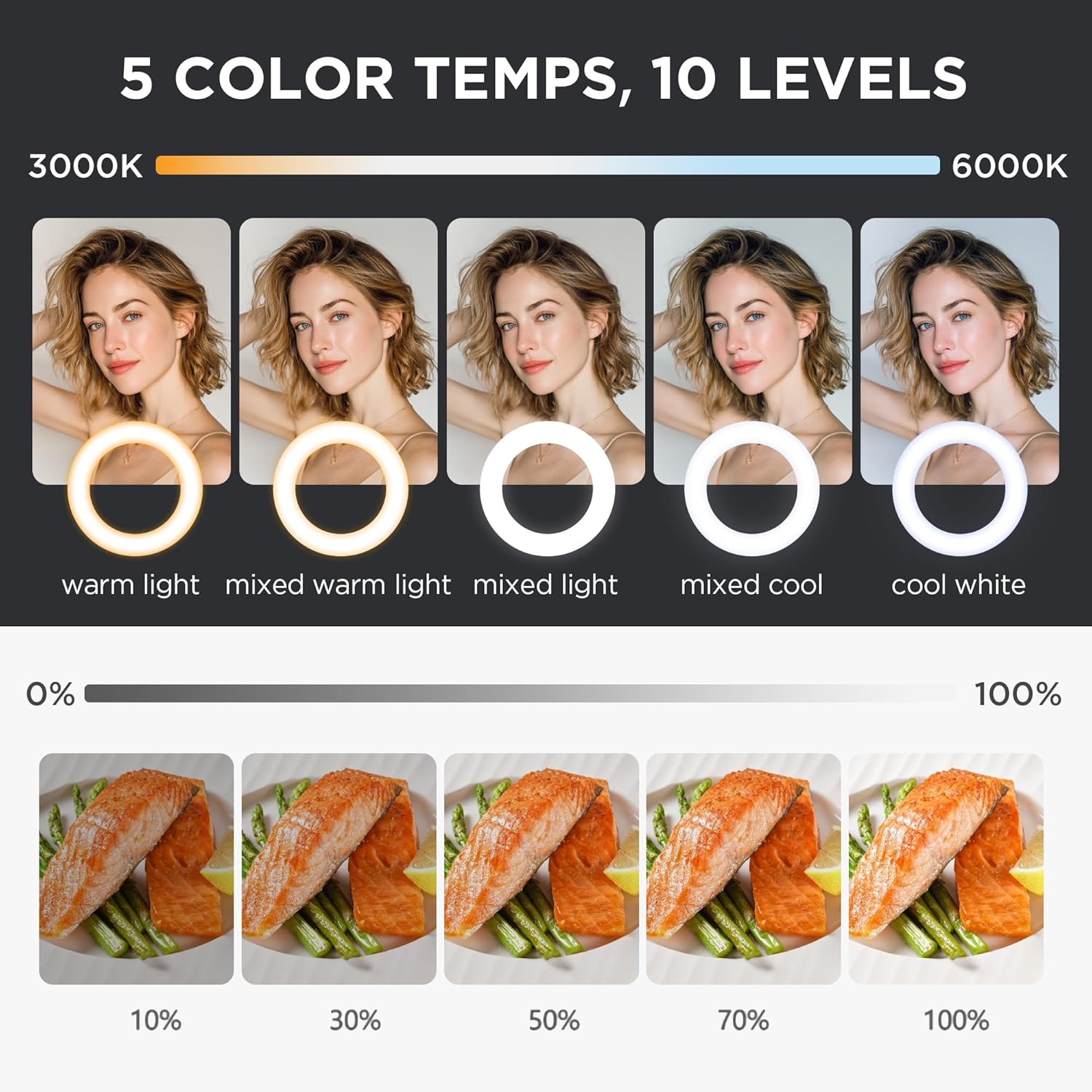

Figure 5: Illustration of 5 color temperatures and 10 brightness levels.

2. Adjusting Light Position

The ring light offers flexible positioning for optimal illumination:

• Halla: The light can tilt up to 170° to direct illumination precisely.
• Snúningur: The light can rotate 360° for full directional control.
• Hæðarstilling: The telescoping stand can be adjusted from 7.98 inches to 11.42 inches. Unscrew the collar on the extension rod to adjust height, then tighten to secure.

Figure 6: Adjustable tilt, rotation, and height features.

Viðhald

To maintain the performance and appearance of your ring light:

• Haltu tækinu hreinu með því að þurrka það af með mjúkum, þurrum klút.
• Forðist að nota slípiefni eða leysiefni.
• Geymið á köldum, þurrum stað þegar það er ekki í notkun.

Úrræðaleit

If you encounter issues with your InnoGear Desk Ring Light, refer to the following common solutions:

• Light Flickering or Unstable Operation: Ensure the light is powered by a 5V/2A or higher adapter or power bank. Lower current sources, such as standard laptop USB ports (typically 5V/1A), may not provide sufficient power.
• Ljós kviknar ekki: Check the USB connection to ensure it is securely plugged into a working power source. Verify the power button on the inline remote is pressed.
• Difficulty Adjusting Brightness/Color: Ensure the light is powered on and use the dedicated brightness and mode buttons on the inline remote.

Tæknilýsing

Ábyrgð og stuðningur

For warranty information or technical support, please refer to the official InnoGear website or contact customer service through your purchase platform. Keep your proof of purchase for any warranty claims.
