Machenike KG98 Tri-Mode Mechanical Gaming Keyboard User Manual

1. Inngangur

The Machenike KG98 is a versatile mechanical gaming keyboard designed for various uses including work, gaming, and study. It features multi-device connectivity, hot-swappable switches, an ergonomic structure, and customizable RGB lighting. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance and user experience.

Figure 1: Machenike KG98 Mechanical Gaming Keyboard

2. Hvað er í kassanum

Vinsamlegast staðfestið að allir hlutir séu til staðar þegar þið takið úr kassanum:

• Machenike KG98 Mechanical Keyboard
• Tveir auka gráir, forsmurðir línulegir rofar
• Keycap Puller
• USB snúru (Type-A til Type-C)
• Notendahandbók (þetta skjal)

Figure 2: Box Contents of the KG98 Keyboard

3. Uppsetning

3.1 Tengistillingar

The KG98 keyboard supports three connection modes: Wired (USB-C), 2.4G Wireless, and Bluetooth (BT5.0). A mode switch is located on the top-right side of the keyboard.

• Hlerunarbúnaður: Connect the provided USB-C cable to the keyboard and your computer. The mode switch should be in the middle (USB) position.
• 2.4G þráðlaus stilling: Locate the 2.4G USB dongle (usually stored magnetically on the keyboard's underside). Insert the dongle into your computer's USB port. Slide the mode switch to the bottom (2.4G) position. The keyboard will automatically connect.
• Bluetooth-stilling: Slide the mode switch to the top (BT) position. On your device (computer, tablet, smartphone), search for Bluetooth devices and select 'Machenike KG98'. The keyboard's indicator light will flash blue during pairing.

3.2 Hleðsla lyklaborðsins

The keyboard is equipped with an 8000mAh battery. To charge, connect the USB-C cable to the keyboard and a power source (e.g., computer USB port, USB wall adapter). The indicator light will show charging status.

Figure 3: Connectivity and Multimedia Control Switches

4. Notkunarleiðbeiningar

4.1 Samsetningar virknitakka

The KG98 keyboard utilizes the 'Fn' key for various secondary functions. Refer to the included user manual for a comprehensive list of Fn key combinations for both Windows and macOS, including multimedia controls, brightness adjustments, and system functions.

4.2 RGB lýsingarstýring

The keyboard features 16.8 million customizable RGB backlighting and dual-sided RGB light strips. Use the following key combinations to adjust the lighting:

• Fn + Shift: Fletta á milli ýmissa RGB lýsingaráhrifa.
• Fn + Enter: Change the solid color of the current lighting effect.
• Fn + Upp/Niður ör: Stilla birtustig baklýsingarinnar (4 stig).
• Fn + Vinstri/Hægri ör: Adjust animation speed (4 levels).
• Fn + Page Up/Page Down: Change side light strip color.
• Fn + Home/End: Change side light strip mode/speed.

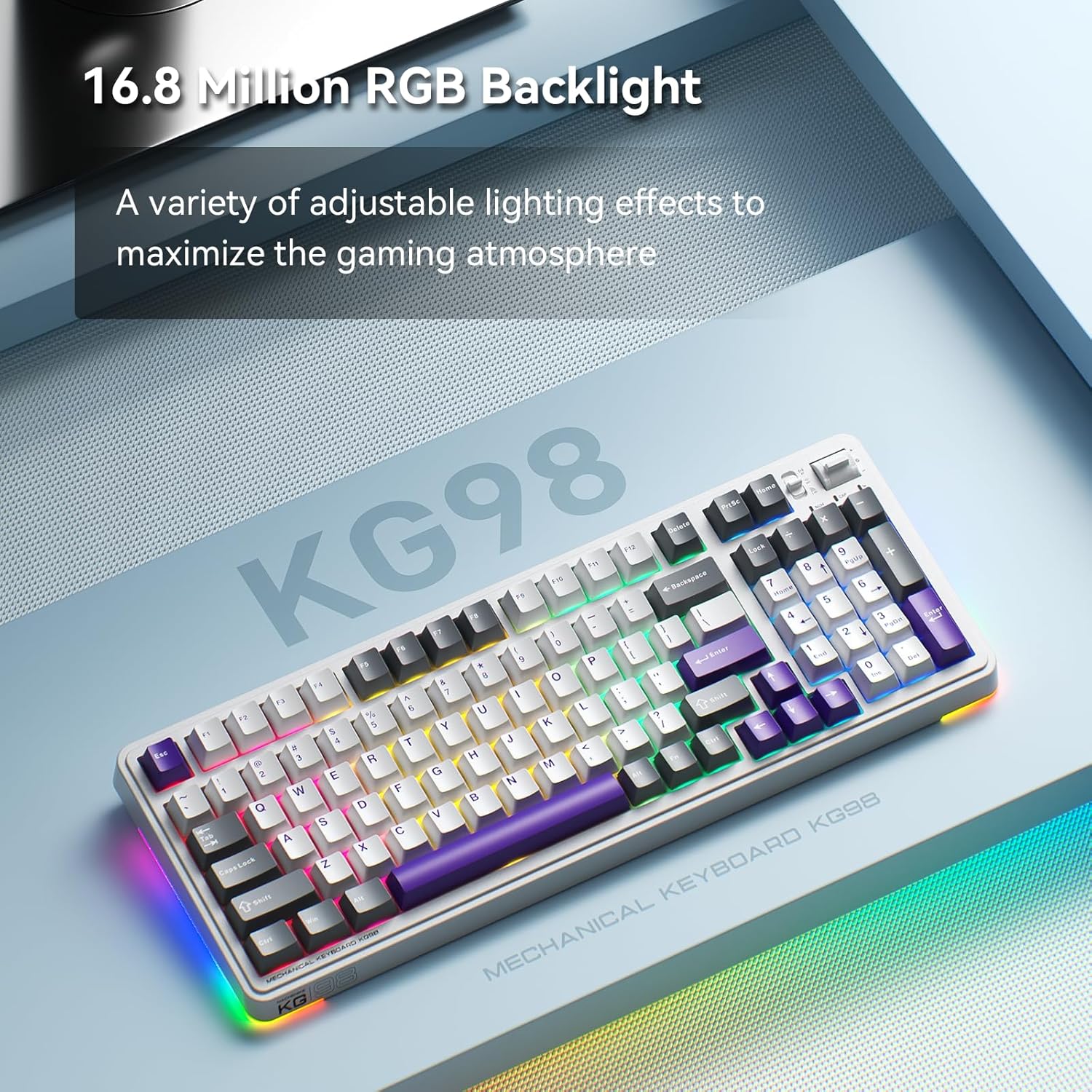

Figure 4: Customizable RGB Backlighting

4.3 Multimedia and Volume Controls

A multi-functional toggle switch is located on the top-right of the keyboard, allowing for quick adjustments:

• Snúa: Stilltu hljóðstyrk upp eða niður.
• Ýttu á: Slökkva/kveikja á hljóði.
• Haltu inni: Fletta á milli RGB lýsingarstillinga.

5. Sérsniðin

5.1 Skiptihnappar sem hægt er að skipta um án hita

The KG98 keyboard features hot-swappable sockets, allowing you to easily replace switches without soldering. This enables personalization of typing feel and sound. Use the included keycap puller and switch puller to remove and install switches. The keyboard supports both 3-pin and 5-pin switches.

Mynd 5: Rofar sem hægt er að skipta um án hita

5.2 Skipti á lyklakippu

The keyboard comes with durable PBT keycaps. You can replace these with aftermarket keycaps of your choice to further customize the keyboard's aesthetics. Use the keycap puller to safely remove keycaps.

5.3 Sérstilling hugbúnaðar

Download the official Machenike software to unlock advanced customization options, including:

• Key remapping for individual keys.
• Macro recording and assignment.
• Detailed RGB lighting effects and color customization.
• Adjusting debounce time and sleep settings.

6. Tæknilýsing

Figure 6: Premium 5-Layer Acoustic Filling Design

7. Viðhald

To ensure the longevity and optimal performance of your Machenike KG98 keyboard, follow these maintenance guidelines:

• Þrif: Regularly clean the keyboard with a soft, dry cloth. For deeper cleaning, remove keycaps using the provided puller and use compressed air to clear debris from between switches.
• Forðastu vökva: Do not expose the keyboard to liquids. If spills occur, immediately disconnect the keyboard and allow it to dry completely before re-using.
• Geymsla: Geymið lyklaborðið á köldum, þurrum stað fjarri beinu sólarljósi og miklum hita.

8. Bilanagreining

If you encounter issues with your Machenike KG98 keyboard, try the following troubleshooting steps:

• Ekkert svar: Ensure the keyboard is properly connected in wired mode, or that the 2.4G dongle/Bluetooth is correctly paired and the mode switch is in the correct position. Check battery level.
• Tengingarvandamál: For wireless modes, ensure the keyboard is within range of your device. Try re-pairing Bluetooth or re-inserting the 2.4G dongle.
• RGB ljós virka ekki: Check brightness settings (Fn + Up Arrow). Ensure the lighting mode is active (Fn + Shift).
• Lyklar skrá sig ekki: If individual keys are not working, try replacing the switch using the provided tools and extra switches.
• Hugbúnaðarvandamál: Ensure you have the latest version of the Machenike software installed. Restart your computer and the software.
• Endurstilla verksmiðju: If problems persist, you can perform a factory reset via the customization software.

9. Ábyrgð og stuðningur

For warranty information, technical support, or service inquiries, please contact Machenike customer support through their official website or the contact details provided with your purchase. Keep your proof of purchase for warranty claims.
