Inngangur
Thank you for choosing the DOSS Extreme Boom Pro D300 Bluetooth Speaker. This manual provides essential information for setting up, operating, and maintaining your speaker to ensure optimal performance and longevity. Please read this manual thoroughly before use.
Hvað er í kassanum
- DOSS Extreme Boom Pro D300 Bluetooth hátalari
- USB-C hleðslusnúra
- Notendahandbók (þetta skjal)
Vara lokiðview

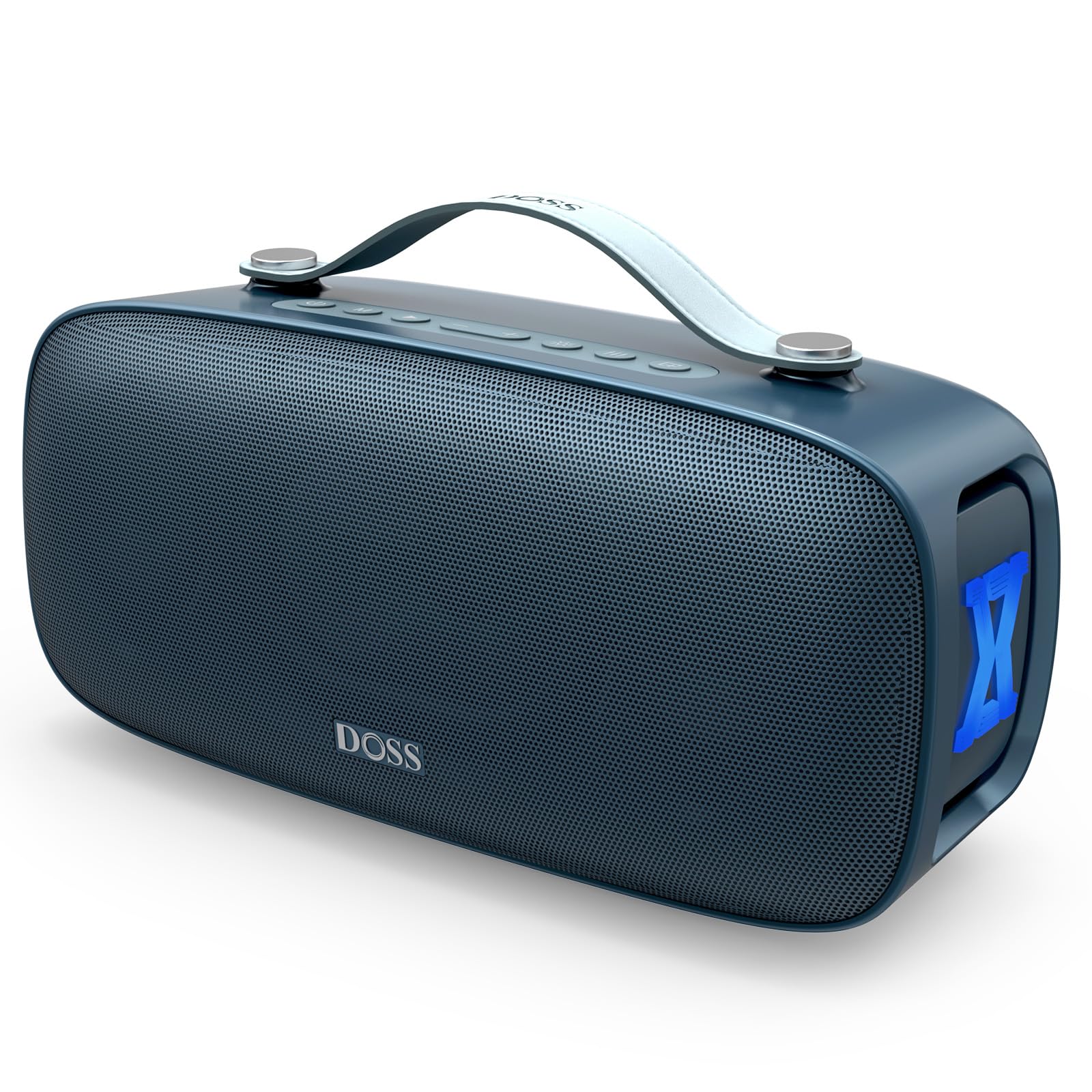

The DOSS Extreme Boom Pro D300 is a powerful portable Bluetooth speaker designed for immersive stereo sound and versatile use. It features intuitive controls, robust construction, and dynamic lighting effects.
Stýringar og hafnir
The speaker features a top-panel control interface for easy operation and a rear panel for various connectivity options.
- Efsta spjaldið: Power, Play/Pause, Volume Up/Down, Mode, Lighting Effects, 3-Mode EQ, TWS Pairing. These buttons offer tactile feedback and are positioned for natural thumb's reach.
- Aftan Panel: USB-C input (for charging), USB-A output (for power bank function), AUX input, TF-Card slot (for direct playlist access). These ports are protected by a sealed cover to maintain the speaker's waterproof rating.
Mynd: Efst view of the DOSS Extreme Boom Pro D300 speaker, highlighting the control buttons for power, mode, volume, play/pause, and extra bass. The handle is visible at the top.
Image: Close-up of the DOSS Extreme Boom Pro D300's rear panel, showing the DC IN (USB-C), USB-A, AUX, and TF-CARD ports, protected by a rubber flap.
Uppsetning
Kveikt/slökkt
- Press and hold the Power button on the top panel for 2 seconds to turn the speaker on or off.
Bluetooth pörun
- Turn on the DOSS Extreme Boom Pro D300 speaker.
- The Bluetooth indicator light will flash, indicating it's in pairing mode.
- On your device (smartphone, tablet, etc.), enable Bluetooth and search for "Extreme Boom Pro D300".
- Select the speaker to connect. A solid Bluetooth indicator light confirms successful pairing.
True Wireless Stereo (TWS) pörun
Connect two DOSS Extreme Boom Pro D300 speakers wirelessly for an immersive stereo sound experience.
- Kveiktu á báðum hátölurum.
- Select one speaker as the primary speaker and press its TWS button.
- Once paired, the TWS light of the primary speaker will turn solid orange, and the secondary speaker will flash orange slowly.
- Find "Extreme Boom Pro D300" on your Bluetooth device and connect it.
Notkunarleiðbeiningar
Grunnstýringar
- Spila / gera hlé: Ýttu einu sinni á Play/Pause hnappinn.
- Hljóðstyrkur upp/niður: Ýttu á '+' eða '-' takkana.
- Næsta / fyrri lag: Press and hold the '+' or '-' buttons.
- Stillingarhnappur (M): Press to switch between Bluetooth, AUX, and TF-Card/USB playback modes.
Pro EQ Modes
The speaker offers three distinct EQ modes to customize your audio experience:
- Venjulegur háttur: Jafnvægis hljóðgagnfile til daglegrar hlustunar.
- Basshamur: Enhanced bass for deeper, more impactful sound. Ideal for hip-hop and EDM.
- Treble Mode: Boosted treble for clearer vocals and crisp highs. Suitable for podcasts and audiobooks.
Switch between these modes directly from the top panel controls.
Image: The DOSS Extreme Boom Pro D300 speaker shown with three different EQ modes: Normal, Bass, and Treble, each depicted with a different background scenario.
Beat-Driven Lights
The speaker features LED lights that pulse to the rhythm of your music, creating an immersive visual experience. You can cycle through different lighting effects or turn them off using the dedicated button on the top panel.
Image: Multiple DOSS Extreme Boom Pro D300 speakers displaying four different beat-sync LED light presets: Flame, Energy, Ambient, and Flash.
Neyðaraflbanki
The built-in USB-A port allows you to charge your phone or tablet on the go. Connect your device using a compatible USB cable (not included, or use the included charging cable for the speaker).
Image: A DOSS Extreme Boom Pro D300 speaker on a wooden deck, charging a smartphone via its USB-A port, with a person sitting nearby.
Hljóðeiginleikar
Experience powerful and immersive audio with the DOSS Extreme Boom Pro D300.
- 80W öflugt hljóð: Delivers 107dB loudness for room-filling sound.
- Aukinn bassi: Tuned with side-mounted passive radiators for surprising low-end punch.
- Tíðnisvörun: 20 KHz.
- Merki til hávaða hlutfall: 80 dB.
Mynd: Sprenging view of the DOSS Extreme Boom Pro D300 speaker, illustrating its internal components including a 100W (50W) racetrack subwoofer, two 30W (15W) tweeters, and two bass passive radiators, contributing to 80W (160W Peak) sound output.
Portability & Durability
Designed for life on the move, the DOSS Extreme Boom Pro D300 is both portable and robust.
- IPX6 vatnsheldur: Resistant to spills, splashes, and rain. Suitable for outdoor use near pools or at the beach.
- 20 tímar leiktími: Enjoy up to 20 hours of music on a single charge (at 50% volume with bass and lights off).
- Innbyggt burðarhandfang: A sturdy handle makes it easy to transport your music anywhere.
- Þyngd: Um það bil 4.84 pund (2.2 kg).
Image: The DOSS Extreme Boom Pro D300 speaker placed on a rock near a waterfall, emphasizing its IPX6 waterproof rating, with two hikers in the background.
Image: A person carrying the DOSS Extreme Boom Pro D300 speaker by its handle while walking outdoors, with dimensions (11.89"D x 5.37"W x 2.55"H) and weight (4.85 pounds) overlaid.
Myndband: Stutt kynningarmyndbandasing the DOSS Extreme Boom Pro D300 speaker's features, including its design, sound, and portability.
Tengingar
- Bluetooth 5.4: Provides rock-solid wireless streaming up to 33 feet (10 meters).
- Spilun á USB-drifi: Plug in a USB drive (not included) to play music directly from your playlist.
- AUX inntak: Connect devices via a 3.5mm audio cable (not included) for wired playback.
Viðhald
To ensure the longevity and optimal performance of your DOSS Extreme Boom Pro D300 speaker, follow these maintenance guidelines:
- Þrif: Þurrkaðu hátalarann með mjúkum, damp klút. Forðist að nota sterk efni eða slípiefni.
- Geymsla: Geymið hátalarann á köldum, þurrum stað fjarri beinu sólarljósi og miklum hita.
- Vatnsútsetning: While IPX6 waterproof, avoid prolonged submersion in water. Ensure the rear port cover is securely closed before any water exposure.
- Hleðsla: Use the provided USB-C cable for charging. Avoid using damaged cables or chargers.
Úrræðaleit
Algeng vandamál og lausnir þeirra:
| Útgáfa | Lausn |
|---|---|
| Unable to pair 2 speakers for stereo sound | 1. Kveiktu á báðum hátölurum. 2. Select a speaker as the primary speaker and press the TWS button. 3. Once paired, the TWS light of the primary speaker turns solid orange, and the secondary speaker flashes orange slowly. 4. Find "Extreme Boom Pro D300" on your Bluetooth device and connect it. |
| How to know how much battery power is left? | There are four LED indicator lights above the volume up and down buttons, each representing 25% of the battery level. When all four LED lights are on, it indicates 100% battery level, followed by 75%, 50%, and 25% respectively. When only one indicator light is on, representing 25% battery level, it means the speaker needs to be charged promptly. |
| What should I do if there is a problem with my product? | If you encounter any issues, such as inability to charge or sound interruptions, please contact our support team via email at support@dossav.com. |
| How to set auto-shutdown, sound alerts, and shuffle? | Sjálfvirk lokun: Press and hold the M button for 6 seconds to turn it on and off. Hljóðboð: Press and hold the volume down button for 6 seconds to turn on and off. Random playback (USB stick mode): Press and hold the TWS button for 6 seconds to turn on and off. |
Tæknilýsing
| Eiginleiki | Smáatriði |
|---|---|
| Nafn líkans | Extreme Boom Pro D300 |
| Vörumerki | DOSS |
| Tegund hátalara | Subwoofer |
| Tengitækni | Þráðlaust (Bluetooth 5.4) |
| Þráðlaus samskiptatækni | Bluetooth |
| Bluetooth svið | 33 fet (10 metrar) |
| Hámarksúttaksstyrkur hátalara | 160 vött (hámark) |
| Tíðni svörun | 20 KHz |
| Merki-til-hávaða hlutfall | 80 dB |
| Vatnsþolsstig | IPX6 (vatnsheldur) |
| Aflgjafi | Rafhlaðaknúið (1 óhefðbundin rafhlaða fylgir) |
| Leiktími | Up to 20 hours (at 50% volume, bass and lights off) |
| Vörumál | 11.89" D x 5.37" B x 2.55" H |
| Þyngd hlutar | 4.84 pund (2.2 kíló) |
| Efni | Málmur, plast |
| Framleiðandi | Wonders Tech |
Ábyrgð og stuðningur
Vörur DOSS eru með 12 mánaða ábyrgð, frá kaupdegi, sem nær yfir öll gæðavandamál.
For any issues or assistance, please contact DOSS customer support:
- Sími: 1-833-275-3677
- Netfang: support@dossav.com
Image: A customer service representative with a headset, alongside DOSS support contact details: phone number 1-833-275-3677 and email support@dossav.com. Below, it states 'One-Year Warranty' for quality-related concerns.
