maXpeedingstangs 5000 lbs Loftfjöðrunarpokasett að aftan

1. Vöru lokiðview

The maXpeedingrods 5000 lbs Rear Air Suspension Bags Kit is designed to enhance the stability and comfort of your vehicle's rear suspension. This kit provides up to 5,000 pounds of load leveling capability, improving handling during hauling and towing by reducing squat, minimizing trailer sway, and preventing bottoming out. The air springs are adjustable from 5 to 100 PSI, allowing for customization based on road conditions and load requirements.

Constructed with multi-ply natural rubber and high-strength ST12 steel end caps, the air springs offer enhanced durability. The mounting brackets are made from Q235 steel, and bolts feature Dacromet anti-rust treatment for long-lasting performance and corrosion resistance.

Mynd 1.1: Lokiðview of the maXpeedingrods air suspension bag and its reliable mounting accessories, including premium Q235 steel brackets and Dacromet anti-rust treated bolts.

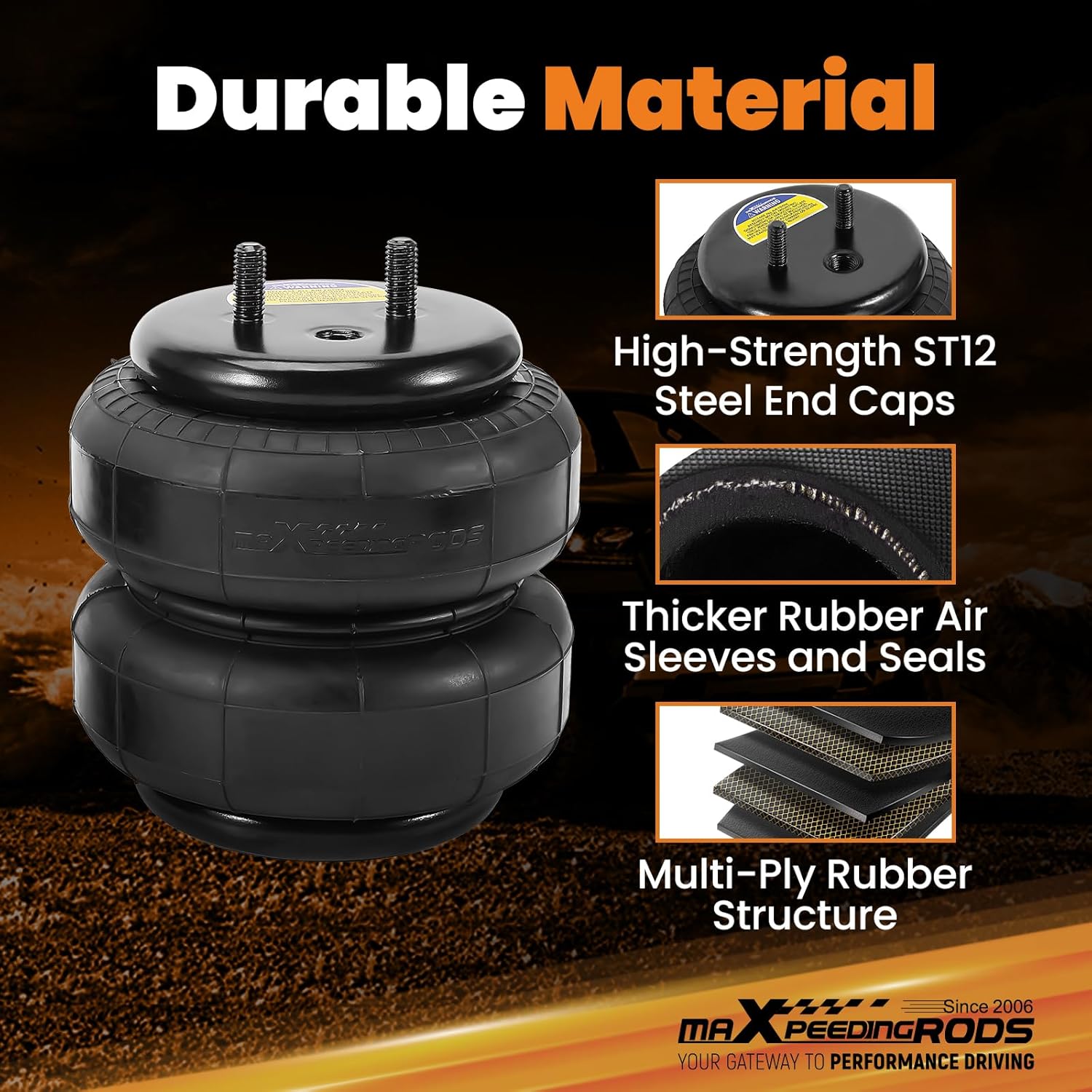

Mynd 1.2: Ítarlegt view of the air spring's durable construction, highlighting high-strength ST12 steel end caps, thicker rubber air sleeves, and a multi-ply rubber structure for enhanced load support.

2. Samhæfni ökutækja

This air suspension kit is compatible with the following vehicle models:

• For Chevrolet Silverado 1500HD (Not Quad-Steer) 2WD, 4WD: 2001-2003, 2005-2006 (Excludes 2004 models)
• For Chevrolet Silverado 2500 (Not HD) 2WD, 4WD: 1999-2005
• For GMC Sierra 1500HD (Not Quad-Steer) 2WD, 4WD: 2001-2003, 2005-2006 (Excludes 2004 models)
• For GMC Sierra 2500 (Not HD) 2WD, 4WD: 1999-2005

Mikilvæg athugasemd um breytt ökutæki:

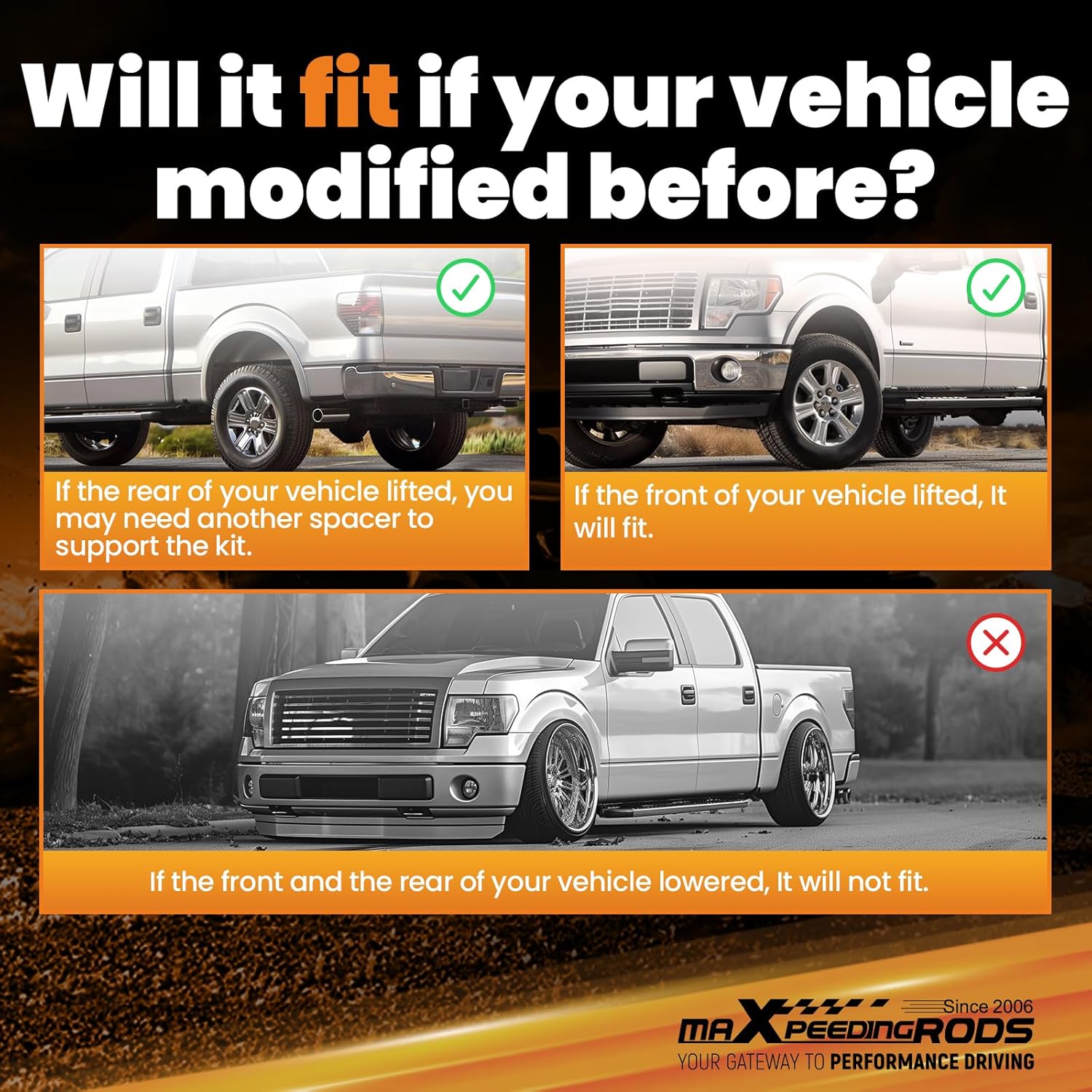

Image 2.1: Visual guide for determining compatibility with modified vehicles. If the rear of your vehicle is lifted, an additional spacer may be required. If only the front is lifted, the kit will fit. If both the front and rear of your vehicle are lowered, this kit will not fit.

• If the rear of your vehicle has been lifted, an additional spacer may be required to properly support the kit.
• If only the front of your vehicle has been lifted, the kit will fit without further modification.
• If both the front and rear of your vehicle have been lowered, this kit is not compatible.

3. Innihald pakka

Gakktu úr skugga um að allir íhlutir sem taldir eru upp hér að neðan séu til staðar í pakkanum áður en uppsetning hefst.

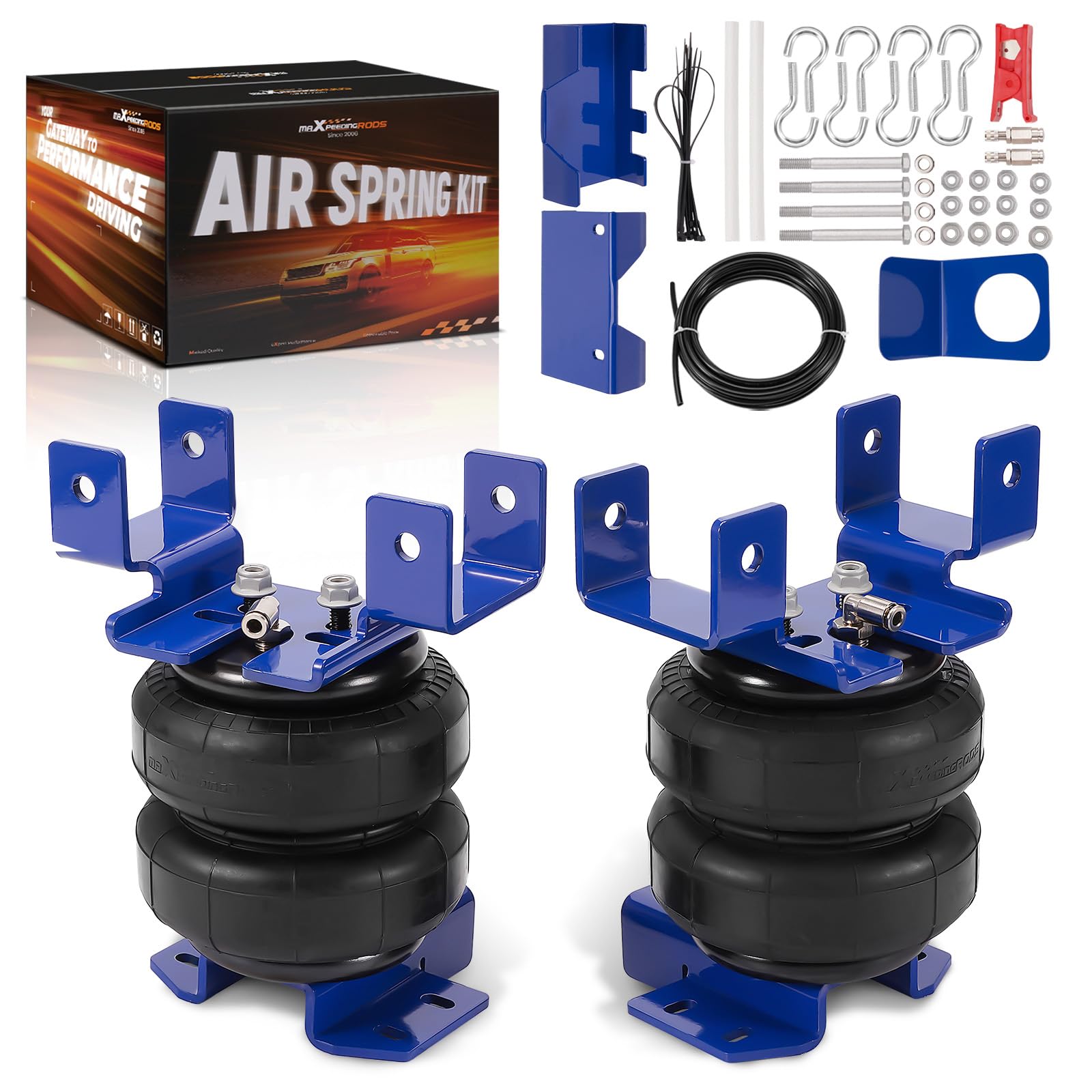

Image 3.1: All components included in the maXpeedingrods air suspension kit, featuring upper and lower mounting brackets, air line, air springs, and various hardware kits.

• 2x Air Ride Suspension Bags
• 4x Efri og neðri festingarfestingar
• Fluglína
• Hardware Kits (Includes all necessary bolts, nuts, washers, and fittings)

4. Tæknilýsingar

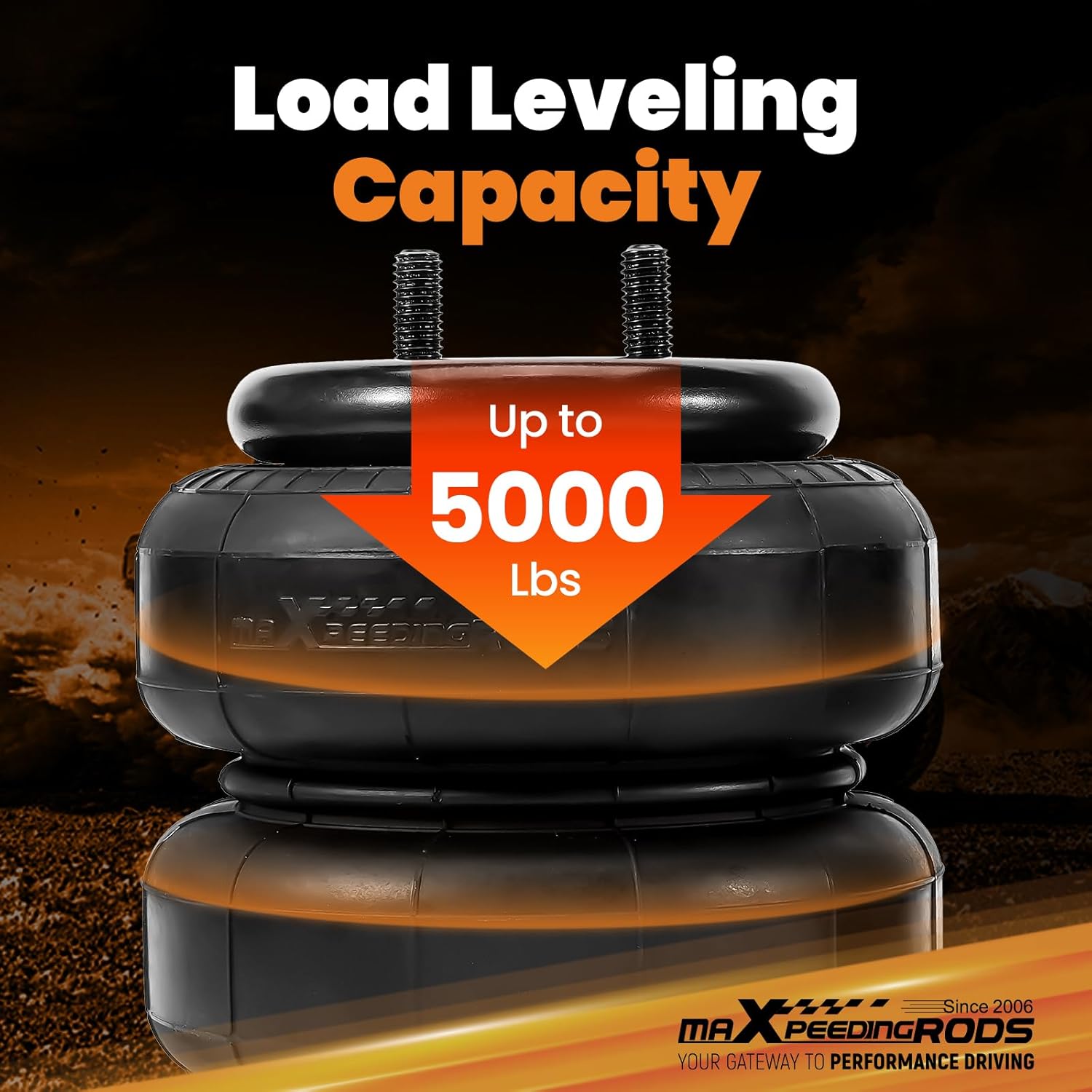

Image 4.1: The air spring highlighting its load leveling capacity of up to 5000 lbs, indicating its ability to support heavy loads and maintain vehicle stability.

5. Uppsetning og uppsetning

This kit is designed for a bolt-on installation, requiring no drilling for most standard applications. Always ensure the vehicle is safely supported on jack stands or a lift before beginning any work.

5.1 General Installation Steps (Consult a professional if unsure):

1. Undirbúa ökutæki: Park the vehicle on a level surface, engage the parking brake, and block the wheels. Lift the rear of the vehicle and support it securely with jack stands.
2. Fjarlægðu núverandi íhluti: If applicable, remove any existing bump stops or suspension components that interfere with the air bag installation.
3. Assemble Air Bags: Attach the upper and lower mounting brackets to the air bags as per the included hardware instructions. Ensure all fasteners are tightened to the manufacturer's specifications.
4. Position Air Bags: Place the assembled air bags between the vehicle's frame and axle, aligning them with the designated mounting points.
5. Öruggar sviga: Bolt the upper and lower brackets to the vehicle's frame and axle using the provided Dacromet anti-rust bolts and hardware. Ensure all connections are secure and torqued correctly.
6. Install Air Lines: Route the air lines from the air bags to a convenient inflation point, ensuring they are clear of moving parts, sharp edges, and heat sources. Cut the air lines cleanly and squarely for a tight seal.
7. Tengja loftlínur: Connect the air lines to the air bags and the inflation valves. Verify all connections are secure and airtight.
8. Upphafleg verðbólga: Inflate the air bags to approximately 20-30 PSI.
9. Athugaðu fyrir leka: Perform a leak test as described in the Maintenance section.
10. Neðri ökutæki: Once installation is complete and leaks are verified, carefully lower the vehicle.

Image 5.1: Illustration of the bolt-on installation process, showing the air spring securely mounted between the vehicle's frame and leaf spring assembly.

6. Rekstur

The maXpeedingrods air suspension kit allows you to adjust the air pressure to optimize your vehicle's ride height and load support.

• Lágmarks loftþrýstingur: Always maintain a minimum of 5 PSI in the air bags to prevent damage to the internal components.
• Hámarks loftþrýstingur: Ekki fara yfir 100 PSI. Over-inflation can lead to premature wear or failure of the air bags.
• Aðlögun þrýstings: Adjust the air pressure based on the load being carried and desired ride characteristics. Higher loads typically require higher air pressure to maintain a level stance and optimal handling. Lower loads or an unloaded vehicle will require less pressure for a comfortable ride.
• Eftirlit: Regularly check the air pressure, especially before and during long trips or when carrying varying loads.

7. Viðhald

Proper maintenance ensures the longevity and optimal performance of your air suspension kit.

7.1 Regluleg eftirlit:

• Inspect air lines for kinks, chafing, or damage.
• Check air bags for any signs of wear, cracks, or punctures.
• Ensure all mounting hardware remains tight.
• Verify air pressure regularly.

7.2 Preventing Leaks:

Leaks are often caused by improper installation. Follow these guidelines to prevent them:

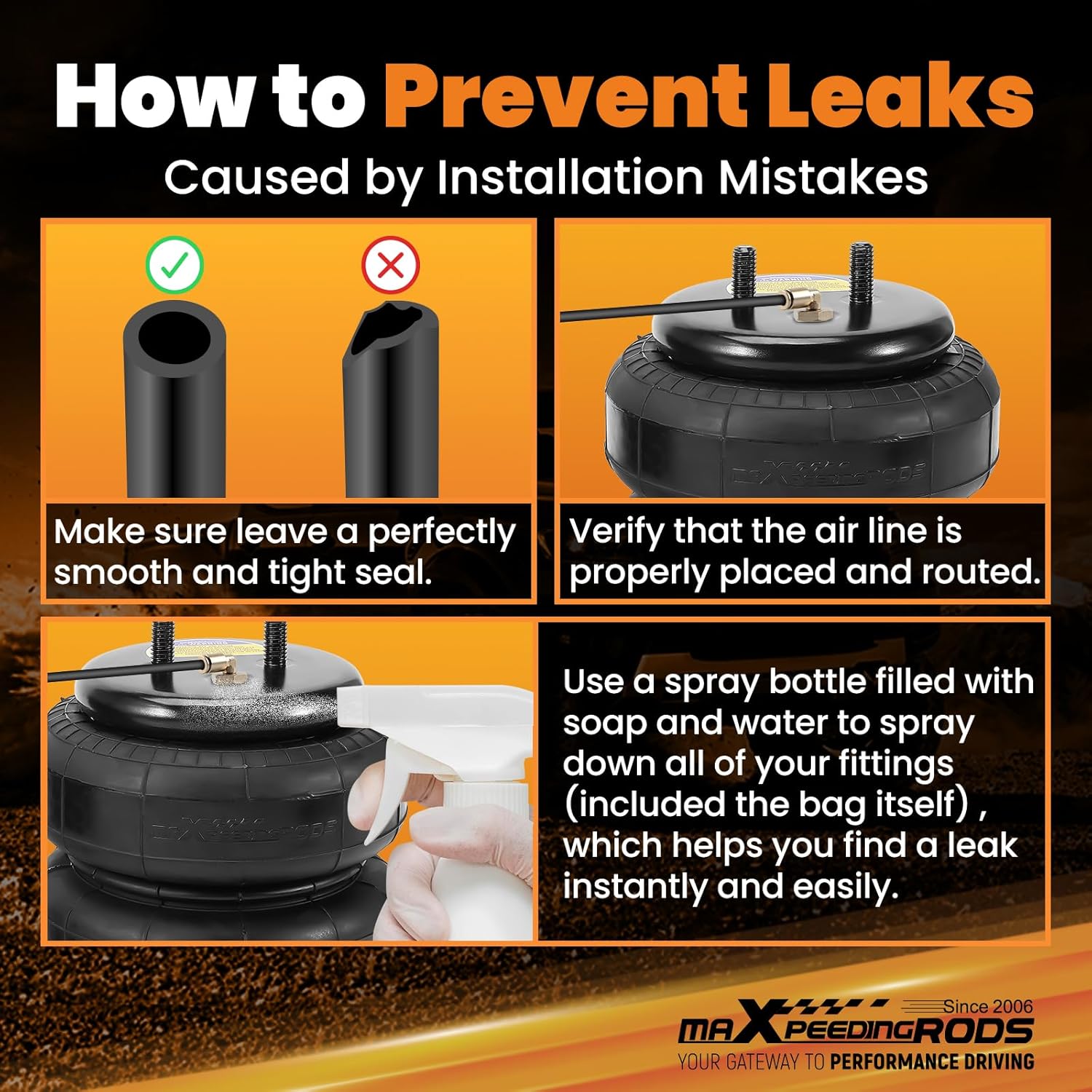

Image 7.1: Instructions on how to prevent leaks. Ensure air lines are cut perfectly smooth and tight for a proper seal. Verify that the air line is correctly placed and routed. Use a soap and water solution to spray all fittings and the bag itself to easily detect leaks.

1. Hrein skurður: When cutting air lines, ensure the cut is perfectly smooth and square to create a tight seal with fittings. Uneven cuts can lead to leaks.
2. Rétt leiðsögn: Verify that the air line is properly placed and routed, avoiding sharp bends or areas where it could be pinched or abraded.
3. Lekaleit: To check for leaks, fill a spray bottle with a mixture of soap and water. Spray all fittings, connections, and the air bag itself. Bubbles will indicate a leak. Address any leaks immediately.

8. Bilanagreining

Þessi kafli fjallar um algeng vandamál sem þú gætir lent í með loftfjöðrunarbúnaðinn þinn.

8.1 Air Bag Not Holding Pressure:

• Athugaðu fyrir leka: Perform a thorough leak test using the soap and water method described in the Maintenance section. Pay close attention to all fittings, the air line, and the air bag surface.
• Inspect Air Line: Look for kinks, cuts, or punctures in the air line. Replace damaged sections.
• Staðfestu tengingar: Ensure all air line connections are fully seated and tightened.
• Valve Stem Issues: Check the inflation valve stem for damage or debris that might prevent a proper seal.

8.2 Uneven Ride Height:

• Check Individual Air Pressures: Ensure both air bags are inflated to the same pressure, or adjusted appropriately for uneven loads.
• Skoðaðu fyrir hindrunum: Verify that nothing is interfering with the movement of one side of the suspension.
• Athugaðu uppsetninguna aftur: Confirm that both air bags are installed correctly and symmetrically.

8.3 Excessive Sway or Rough Ride:

• Stilla loftþrýsting: Increase air pressure for heavier loads to reduce sway. For an unloaded vehicle, reduce pressure to improve ride comfort.
• Check Load Distribution: Ensure the load in your vehicle or trailer is evenly distributed.

9. Ábyrgð og stuðningur

For specific warranty information regarding your maXpeedingrods air suspension kit, please refer to the documentation included with your purchase or contact maXpeedingrods directly through their official webvefsvæði eða viðurkenndum söluaðilum.

If you require technical assistance, have questions about installation, or need to report a defective part, please contact the seller or maXpeedingrods customer support. Provide your product model number (BP52EU) and purchase details for faster service.
