1. Inngangur
This manual provides detailed instructions for the safe and effective use of your Retevis EZTalk 4S Waterproof Two Way Radio. Please read this manual thoroughly before operating the device and retain it for future reference.
1.1 Vara lokiðview
The Retevis EZTalk 4S is a robust, IP68-rated waterproof and floating GMRS two-way radio designed for outdoor activities such as kayaking, fishing, rafting, and boating. It features long-distance communication, a long-lasting battery, NOAA weather alerts, and an emergency alarm function.
Figure 1.1: Retevis EZTalk 4S Product Details and Components
1.2 Innihald pakka
Ensure all items are present in your package. If any items are missing or damaged, please contact your retailer.
- EZTalk 4S walkie talkie *2
- 2000mAh Li-ion Battery & Base charger *2
- Type-C Charging cable & Adapter *2
- Belt clip & Lanyard *2
- Notendahandbók *1
Mynd 1.2: Innihald pakka
2. Vörueiginleikar

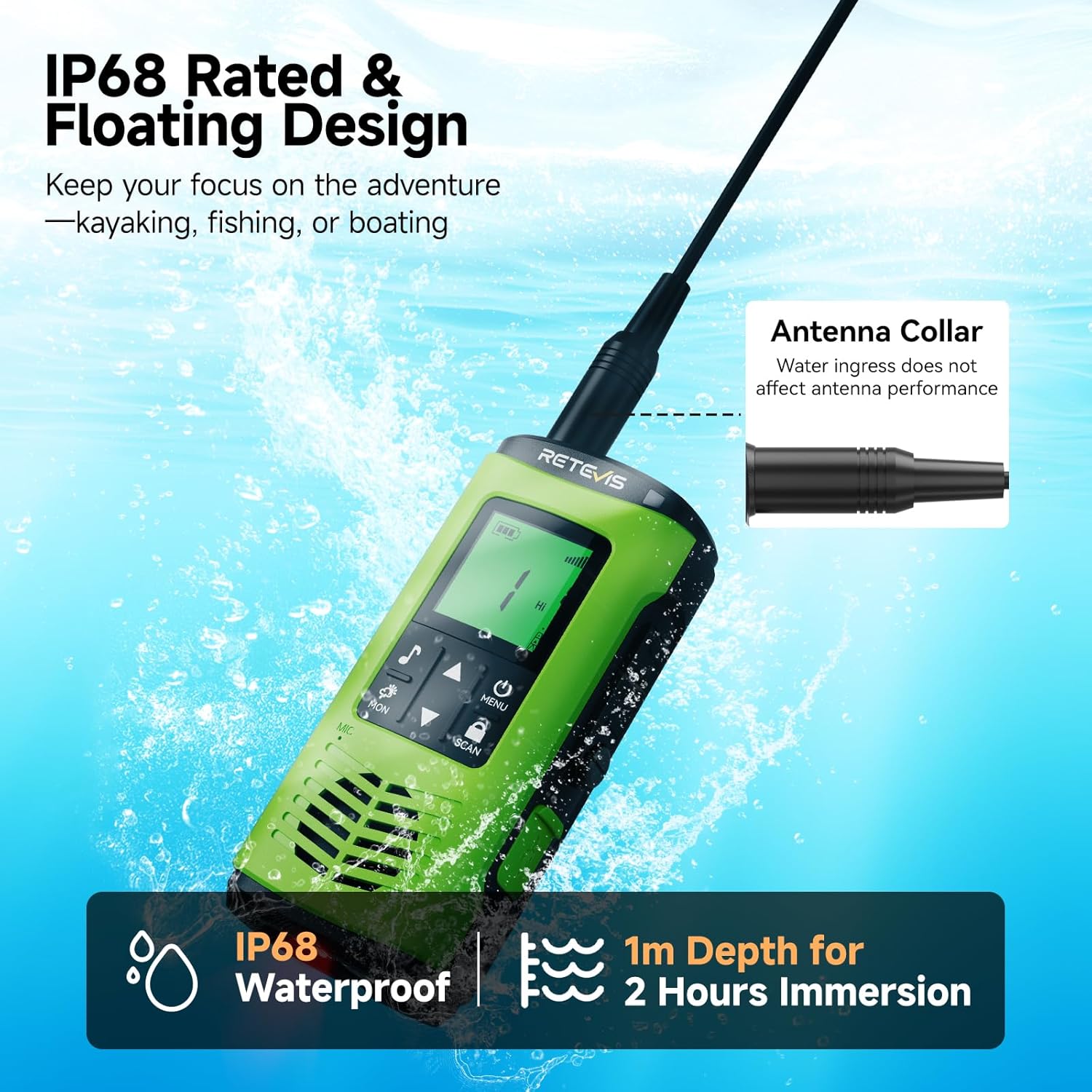

2.1 IP68 Waterproof & Floating Design
The EZTalk 4S is rated IP68, providing complete protection against dust and water immersion up to 1 meter for 2 hours. Its floating design ensures that if dropped in water, the radio will float to the surface for easy retrieval.
Figure 2.1: IP68 Waterproof and Floating Capability
Figure 2.2: Corrosion-Proof Design for Water Environments
Video 2.1: Demonstration of Retevis EZTalk 4S Waterproof and Floating Capabilities
2.2 Langdræg samskipti
Experience clear and reliable communication over extended distances. The EZTalk 4S offers a communication range of up to 4.7 km in urban areas and an impressive 10 km on open water.
Mynd 2.3: Aukið samskiptasvið
2.3 Long-Lasting Battery & Charging
Equipped with a 2000mAh battery, the radio provides over 17 hours of continuous use and up to 100 hours of standby time. It supports flexible charging options: direct Type-C cable charging or convenient dock charging.
Mynd 2.4: Rafhlöðulíftími og hleðsluvalkostir
Video 2.2: Demonstration of Dual Charging Options (Type-C and Base Charging)
2.4 Veðurviðvaranir frá NOAA
Stay informed about changing weather conditions with access to 12 NOAA weather channels, providing real-time updates and alerts.
Figure 2.5: NOAA Weather Alert Functionality
2.5 Neyðarviðvörun
In emergency situations, activate the alarm function to alert others to your location or need for assistance.
Figure 2.6: Emergency Alarm Feature
2.6 Vasaljós
The radio includes a built-in LED flashlight for illumination in low-light conditions. It also features a water-activated LED that lights up automatically if the radio falls into water, aiding in retrieval.
Mynd 2.7: Innbyggt LED vasaljós
2.7 Titringsfrárennsli
After submersion, the vibration drainage function can be activated to expel water from the speaker, ensuring clear audio quality.
Figure 2.8: Vibration Drainage Function
2.8 takkalás
Prevent accidental changes to settings by activating the key lock feature.
Mynd 2.9: Lyklalásaðgerð
2.9 High/Low Power Adjustment
Adjust the transmission power between High (for extended range) and Low (for longer battery life) as needed.
Figure 2.10: High/Low Power Adjustment
2.10 30 Channels
The radio supports 30 GMRS channels, allowing for flexible communication options.
Figure 2.11: 30 Available Channels
Myndband 2.3: Yfirview of Retevis EZTalk 4S Features and Functions
3. Uppsetning
3.1 Uppsetning og hleðsla rafhlöðu
- Gakktu úr skugga um að útvarpið sé slökkt áður en rafhlaðan er sett í eða fjarlægð.
- Align the battery with the compartment on the back of the radio and press firmly until it clicks into place.
- To charge, connect the Type-C cable directly to the radio or place the radio in the charging dock. The LED indicator will show charging status.
- A full charge typically takes 3 hours via Type-C.
3.2 Attaching Belt Clip & Lanyard
- Festið beltisfestinguna við tiltekna rauf á bakhlið útvarpsins.
- Thread the lanyard through the loop on the radio for secure carrying.
4. Notkunarleiðbeiningar
4.1 Kveikt/slökkt
- Til að kveikja á, haltu inni Power/Valmynd hnappinn þar til skjárinn lýsist upp.
- Haltu inni til að slökkva á Power/Valmynd hnappinn þar til skjárinn slekkur á sér.
4.2 Rásarval
- Notaðu Up og Niður arrow buttons to navigate through the available channels.
- Ýttu á Matseðill button to confirm your selection or access further channel settings.
4.3 Stilling hljóðstyrks
- The volume can typically be adjusted using the Up og Niður arrow buttons when not in menu mode.
4.4 Talkerfi (PTT)
- Til að senda, ýttu á og haltu inni PTT hnappinn sem er staðsettur á hlið útvarpsins. Talaðu skýrt í hljóðnemann.
- Slepptu PTT hnappinn til að taka á móti.
4.5 Monitoring Channels (MON)
- Ýttu á MÁN hnappinn til að slökkva tímabundið á hljóðstyrkstuðningi og hlusta eftir veikum merkjum á núverandi rás.
4.6 Scanning Channels (SCAN)
- Ýttu á SKANNA button to activate channel scanning. The radio will cycle through active channels.
- Ýttu á SKANNA aftur til að hætta að skanna.
4.7 Notkun vasaljóssins
- Ýttu stuttlega á Vasaljóslykill (refer to Figure 1.1) to cycle through white light, red light, and off.
4.8 Activating Emergency Alarm
- Ýttu á tileinkaða Neyðarkallshnappur (refer to Figure 1.1) to activate the emergency alarm.
4.9 NOAA veðurútvarp
- Access NOAA weather channels through the menu to receive real-time weather updates and alerts. Consult the radio's on-screen menu for specific navigation.
4.10 Adjusting Power Level (High/Low)
- Navigate to the power setting in the menu to switch between High (Hi) and Low (Lo) transmission power.
4.11 Lyklalásaðgerð
- Ýttu á og haltu inni Skanna/Læsa button to lock or unlock the keypad. A lock icon will appear on the display when activated.
4.12 Vibration Drainage Function
- If the radio has been submerged, briefly press the side key (refer to Figure 1.1) to activate the vibration drainage function, which helps expel water from the speaker.
Video 4.1: Detailed Features and Operation of Retevis EZTalk 4S
5. Viðhald
5.1 Þrif
- Þurrkaðu útvarpið með mjúku, damp klút. Ekki nota sterk efni eða slípiefni.
- Ensure all ports are dry before charging or using accessories.
5.2 Geymsla
- Geymið útvarpið á köldum, þurrum stað fjarri beinu sólarljósi og miklum hita.
- Ef geymt er í langan tíma skal fjarlægja rafhlöðuna.
5.3 Umhirða rafhlöðu
- Forðist ofhleðslu eða að tæma rafhlöðuna alveg.
- Hlaðið rafhlöðuna reglulega, jafnvel þótt útvarpið sé ekki í mikilli notkun, til að viðhalda heilbrigði rafhlöðunnar.
6. Bilanagreining
| Vandamál | Möguleg orsök | Lausn |
|---|---|---|
| Útvarpið kveikir ekki á sér | Lítil eða dauf rafhlaða; Rafhlaðan ekki rétt sett í | Hlaðið rafhlöðuna; Setjið rafhlöðuna rétt aftur í |
| Get ekki sent eða móttekið | Incorrect channel; Out of range; Low battery; Squelch level too high | Verify channel settings; Move closer to other radios; Charge battery; Adjust squelch level |
| Léleg hljóðgæði | Water in speaker; Out of range; Obstructions | Use vibration drainage; Move closer; Clear obstructions |
| Takkaborðið svarar ekki | Key lock is active | Deactivate key lock (refer to section 4.11) |
7. Tæknilýsing
| Eiginleiki | Smáatriði |
|---|---|
| Gerðarnúmer | EZTalk 4S |
| Þyngd hlutar | 9.9 aura |
| Vörumál | 1.61" D x 2.44" B x 5.35" H |
| Rafhlöður | 2 C rafhlöður nauðsynlegar (innifalin) |
| Fjöldi rása | 30 |
| Tíðnisvið | GMRS |
| Talandi svið hámark | 3 mílur (venjulegt, breytilegt eftir landslagi) |
| Vatnsþolsstig | IP68 vatnsheldur |
| Voltage | 7.4 volt |
| Sérstakir eiginleikar | 2000mAh rechargeable battery, Floating design, IP68 waterproof, Long Range GMRS, NOAA, Emergency Alarm, Type-C Charging |
8. Ábyrgð og stuðningur
8.1 Upplýsingar um ábyrgð
Retevis provides a 2-year warranty for the radio body and a 1-year warranty for accessories. A 30-day no-reason return policy is also available.
8.2 Post-Warranty Service
Beyond the warranty period, maintenance services are still offered. Buyers are responsible for any corresponding costs.
8.3 Þjónustuver
Ef þú hefur einhverjar fyrirspurnir eða þarft aðstoð, vinsamlegast hafðu samband við þjónustuver Retevis á Amazon. Svör berast venjulega innan 12 klukkustunda.
