1. Vöru lokiðview
The Kenmore 2214785 24-inch Premium Hybrid Tub Dishwasher is designed for efficient and quiet dish cleaning. It features advanced technologies to ensure thorough washing and drying.
Helstu eiginleikar:
- UltraWash System: Utilizes 2 pressurized spray arms and a 3-stage filter to remove stubborn food particles, ensuring dishes are cleaned with filtered water.
- SmartWash Cycle: Sensor technology automatically detects soil levels and adjusts water temperature, pressure, and cycle time for optimal cleaning.
- MoreSpace Adjustable Upper Rack: Provides flexibility to accommodate large or oddly shaped items with two height levels.
- Sani Rinse Option: Offers a UL-certified sanitization cycle for enhanced hygiene.
- Heated Dry Option: Facilitates quick water evaporation for sparkling, dry dishes.
- Hljóðlát aðgerð: Virkar við lágt hávaðastig, 54 dBA.
Mynd 1.1: Framan view of the Kenmore 2214785 Dishwasher in Fingerprint Resistant Stainless Steel.
2. Öryggisupplýsingar
Please read all safety instructions before installing or operating your dishwasher to reduce the risk of fire, electric shock, or injury to persons.
- Rafmagnsöryggi: Ensure the dishwasher is properly grounded. Do not use extension cords.
- Vatnsveita: Connect to a potable water supply only. Ensure all water connections are secure to prevent leaks.
- Uppsetning: Installation must be performed by a qualified installer in accordance with all local codes and ordinances.
- Öryggi barna: Keep children away from the dishwasher during operation. Do not allow children to play inside or on the dishwasher.
- Skarpar hlutir: Load sharp items so they are not likely to damage the door seal or tub. Load sharp knives with handles up.
- Eldfimt efni: Ekki geyma eða nota eldfim efni nálægt uppþvottavélinni.
3. Uppsetning og uppsetning
Proper measurement and preparation are crucial for a smooth installation. This section guides you through the necessary steps before your dishwasher arrives.
3.1 Measuring Your Space
Before delivery, measure the path from the delivery truck to the final installation location, including gates, hallways, doorways, corners, and stairways. Also, measure the dimensions of the installation space in your kitchen.
Figure 3.1: Kenmore 24" Hybrid Tub Dishwasher with approximate dimensions. Ensure your space accommodates these measurements.
3.2 Nauðsynleg verkfæri og varahlutir
Ensure you have the following tools and parts ready for installation. Some items may be included with your dishwasher, while others may need to be purchased separately.
Figure 3.2: Illustration of tools and parts needed for dishwasher installation.
3.3 Electrical and Water Requirements
- Rafmagn: The dishwasher requires a 120 Volts electrical connection. Refer to local electrical codes for specific wiring requirements.
- Vatnslína: An established hot water line is necessary for operation. Ensure the water supply is accessible and within reach of the dishwasher's connection point.
3.4 Installation Guidance Video
Watch this video for detailed guidance on measuring your home for appliance delivery and ensuring proper fit.
Video 3.1: Kenmore Appliance Measurement Guide. This video provides instructions on how to measure your home to ensure your new appliance will fit through all entry points and into its designated space.
4. Notkunarleiðbeiningar
Familiarize yourself with the dishwasher's controls and cycles for optimal cleaning performance.
4.1 Að fylla uppþvottavélina
Proper loading ensures effective cleaning. Utilize the MoreSpace Adjustable Upper Rack to accommodate various dish sizes. Place larger items in the lower rack and smaller items, glasses, and cups in the upper rack. Ensure spray arms are not obstructed.
Figure 4.1: Properly loaded dishwasher racks demonstrating capacity and organization.
4.2 Wash Cycles and Options
Select the appropriate cycle and options based on the soil level and type of dishes.
- Venjulegt: For regular loads and everyday messes.
- Þungur skylda: Ideal for heavily soiled dishes, pots, and pans.
- EcoWash: Energy-efficient cycle for lightly soiled dishes.
- Hraðþvottur: Quick cycle for lightly soiled dishes that need to be cleaned fast.
- SmartWash: Automatically adjusts settings based on soil level detected by sensors.
- Sani Rinse: Adds a high-temperature rinse to sanitize dishes.
- Hitað þurrt: Activates a heating element for improved drying performance.
- Seinkað byrjun: Allows you to set the dishwasher to start at a later time.

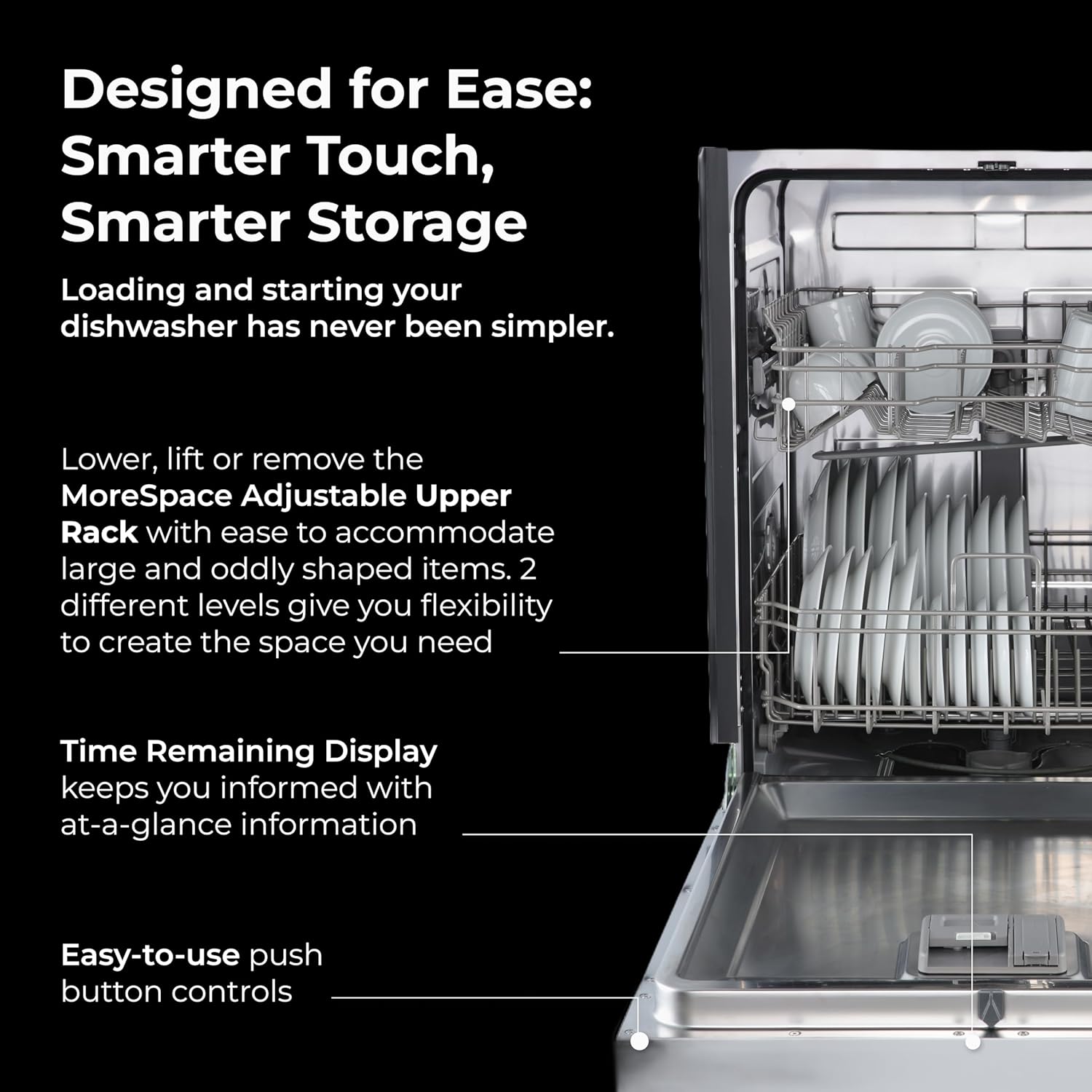

Figure 4.2: Dishwasher control panel and adjustable upper rack for flexible loading.
5. Viðhald
Regular maintenance helps ensure the longevity and optimal performance of your Kenmore dishwasher.
5.1 Cleaning the UltraWash Filter
3-stage UltraWash Filter captures food particles and should be cleaned monthly to maintain performance. To clean, remove the filter assembly, rinse under running water to remove trapped particles, and reassemble securely.
Figure 5.1: The UltraWash filter system located at the bottom of the dishwasher tub.
5.2 Almenn þrif
- Að utan: Þurrkaðu að utan með mjúku, damp cloth. For fingerprint-resistant stainless steel, use a stainless steel cleaner.
- Innrétting: Periodically clean the interior with a dishwasher cleaner or a mixture of vinegar and baking soda to prevent odor and mineral buildup.
- Hurðarþétting: Wipe the door gasket with a damp klút til að fjarlægja matarleifar og agnir.
6. Bilanagreining
Áður en hringt er eftir þjónustu, t.dview þessi algengu vandamál og lausnir þeirra.
| Vandamál | Möguleg orsök | Lausn |
|---|---|---|
| Diskar ekki hreinir | Improper loading, clogged filter, low water temperature, incorrect detergent. | Reload dishes correctly, clean UltraWash filter, ensure hot water supply, use recommended detergent. |
| Dishwasher not draining | Clogged drain hose or filter, air gap blockage, drain pump issue. | Check and clear drain hose/filter, inspect air gap, consult service if pump is faulty. |
| Óhóflegur hávaði | Improper loading, foreign object in pump, spray arm hitting dishes. | Adjust dish placement, remove foreign objects, ensure spray arms rotate freely. |
| Vatn lekur | Loose hose connections, damaged door gasket, excessive suds. | Tighten connections, inspect/replace gasket, use less detergent. |
7. Tæknilýsing
Detailed technical specifications for the Kenmore 2214785 Dishwasher.
| Eiginleiki | Forskrift |
|---|---|
| Gerðarnúmer | 2214785 |
| Vörumerki | Kenmore |
| Vörumál (D x B x H) | 22.6" x 23.6" x 33.7" |
| Þyngd hlutar | 69 pund |
| Getu | 12 Staðsetningarstillingar |
| Hávaðastig | 54 dBA |
| Orkunotkun | 240 kílóvattstundir á ári |
| Vottun | Orkustjarna |
| Voltage | 120 volt |
| Tegund efnis | Plast, ryðfríu stáli |
| Sérstakir eiginleikar | Cycle Status Indicator, MoreSpace Adjustable Rack, SmartWash Cycle, Soil Sensor, UltraWash System |
| Innifalið íhlutir | Hnífapörkarfa |
8. Ábyrgð og stuðningur
For product registration, warranty information, parts, accessories, repairs, and service, please refer to the Kenmore customer support resources.
8.1 Þjónustuver
If you have any questions or require assistance, please contact Kenmore customer support:
- Sími: 1-844-553-6667
- Netfang: customersupport@kenmore.com
8.2 Vöruskráning
Register your product to receive important updates and warranty information. Visit the official Kenmore website for product registration details.
8.3 Upplýsingar um ábyrgð
Your Kenmore dishwasher comes with a manufacturer's warranty. Please refer to the warranty documentation included with your product for specific terms and conditions. Keep your proof of purchase for warranty claims.
