Vortex Crossfire HD 1-4x24 Riflescope User Manual

Inngangur

This manual provides detailed instructions for the setup, operation, and maintenance of your Vortex Crossfire HD 1-4x24 Second Focal Plane Riflescope. Designed for reliability and performance, this riflescope offers clear optics and robust construction for various hunting and shooting applications.

Vara lokiðview

The Vortex Crossfire HD 1-4x24 riflescope is engineered with an HD Optical System, utilizing select glass elements for sharp resolution, reduced chromatic aberration, and excellent color fidelity. Its fully multi-coated lenses enhance light transmission and improve clarity, especially in low-light conditions. The illuminated Dead-Hold 2A BDC (MOA) reticle provides precise aiming with an illuminated floating center dot. The riflescope features a fast focus eyepiece for rapid reticle acquisition and is built from aircraft-grade aluminum, ensuring waterproof, fogproof, and shockproof performance.

Mynd 1: Ofan frá og niður view of the Vortex Crossfire HD 1-4x24 Riflescope, showcasing nett hönnun þess.

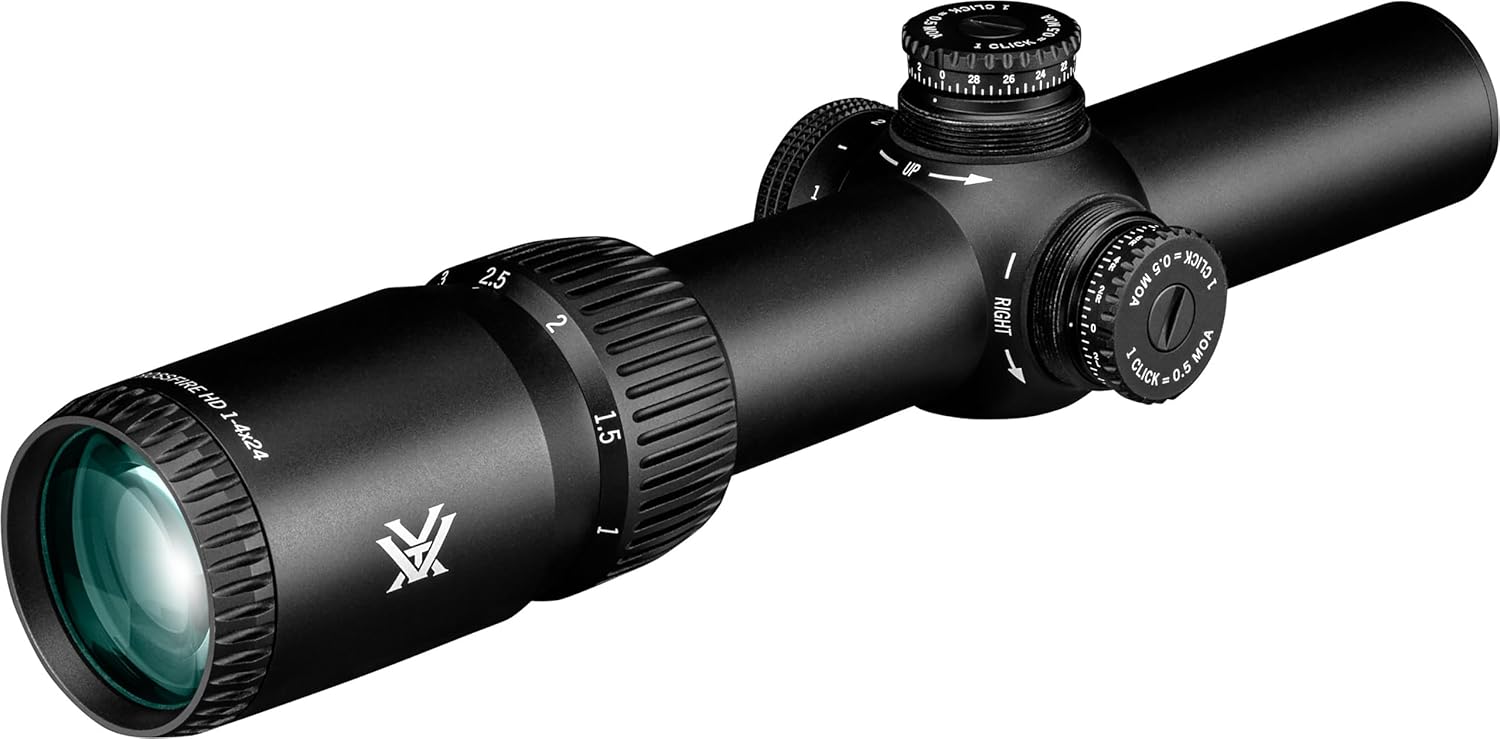

Figure 2: Labeled diagram illustrating the main components of the riflescope, including the ocular lens, fast-focus eyepiece, magnification adjustment ring, elevation turret, windage turret, battery compartment, illumination control knob, and objective lens.

Mynd 3: View through the riflescope showing the Illuminated Dead-Hold 2A BDC (MOA) reticle, designed for holdover and windage guidance with an illuminated center dot.

Hvað er í kassanum

Upon unboxing your Vortex Crossfire HD 1-4x24 Riflescope, you should find the following items:

• Vortex Crossfire HD 1-4x24 Riflescope
• Flip Caps (for lens protection)
• 2" Sunshade
• Linsudúk
• Turret Tool
• CR2032 Battery (for reticle illumination)
• Vöruhandbók
• Reticle Manual

Figure 4: All items included in the Vortex Crossfire HD riflescope packaging.

Uppsetning

1. Uppsetning riffilsjónaukans

Proper mounting is crucial for optimal performance. Ensure the riflescope is securely mounted to your rifle using appropriate 30mm rings and bases. Consult a qualified gunsmith if you are unsure about the mounting process.

2. Installing the CR2032 Battery

For models with an illuminated reticle, install the included CR2032 battery into the illumination control knob located on the side of the riflescope. Rotate the cap counter-clockwise to open the battery compartment, insert the battery with the positive (+) side facing outwards, and then replace the cap by rotating clockwise until snug.

3. Focusing the Reticle (Fast Focus Eyepiece)

To ensure a sharp reticle image, adjust the fast focus eyepiece. Hold the riflescope up to a plain, light-colored wall or the sky. Look through the eyepiece and quickly rotate the eyepiece focus ring (located at the rear of the scope) until the reticle appears sharp and clear. Avoid staring at the reticle for too long, as your eye may compensate for any blurriness.

Figure 5: Rotate the fast focus eyepiece to achieve a sharp reticle image.

4. Núllstilling riffilsjónaukans

Zeroing involves adjusting the elevation and windage turrets to align the point of impact with your point of aim at a specific distance. The Crossfire HD 1-4x24 features capped elevation and windage turrets with 1/4 MOA clicks. Use the turret tool to make precise adjustments. Turn the elevation turret (top) for vertical adjustments and the windage turret (side) for horizontal adjustments. Follow standard zeroing procedures at your desired range.

Figure 6: Elevation and Windage Turrets for zeroing adjustments.

Notkun riffilsjónaukans

1. Stækkunarstilling

The magnification adjustment ring is located in front of the eyepiece. Rotate this ring to change the magnification from 1x to 4x. The 1-4x24 model is ideal for close to mid-range engagements, offering a wide field of view at lower magnifications and increased detail at higher settings.

2. Illuminated Reticle Control

The illumination control knob is located on the left side of the riflescope. Rotate this knob to turn the reticle illumination on or off and to adjust its brightness. Multiple intensity settings allow for optimal visibility in various lighting conditions, from bright daylight to low light.

Figure 7: The illumination control knob adjusts the brightness of the reticle.

3. Using the Dead-Hold 2A BDC (MOA) Reticle

The Dead-Hold 2A BDC reticle provides hash marks for bullet drop compensation (BDC) and windage corrections. Refer to the included Reticle Manual for specific holdover points and windage values for your chosen ammunition. The illuminated center dot aids in rapid target acquisition, especially in challenging light.

Viðhald

1. Linsuhreinsun

Use the provided lens cloth or a soft, lint-free cloth to gently wipe away dust and loose debris from the lenses. For stubborn smudges or fingerprints, use a lens cleaning solution specifically designed for optics. Apply a small amount of solution to the cloth, not directly to the lens, and gently wipe in a circular motion. Avoid excessive rubbing.

2. Almenn umönnun

Store the riflescope in a dry, cool place away from direct sunlight. Use the flip caps to protect the lenses when not in use. Regularly check all mounting screws to ensure they are secure. The riflescope is waterproof and fogproof, but prolonged exposure to extreme conditions should be avoided when possible.

Úrræðaleit

If you encounter any issues with your Vortex Crossfire HD riflescope, please refer to the following general troubleshooting tips:

• Óskýrt krossmark: Re-adjust the fast focus eyepiece as described in the Setup section.
• Engin lýsing á krossi: Athugaðu hvort CR2032 rafhlaðan sé rétt sett í og ​​nægilega hleðst. Skiptu um rafhlöðu ef þörf krefur.
• Ónákvæmur árekstrarpunktur: Ensure the riflescope is securely mounted and properly zeroed. Verify that the turrets are not accidentally bumped or moved.
• Þoka: While the scope is fogproof, extreme temperature changes can sometimes cause external condensation. Allow the scope to acclimate to the ambient temperature.

For persistent issues or complex problems, please contact Vortex Optics customer support.

Tæknilýsing

Detailed specifications for the Vortex Crossfire HD 1-4x24 Riflescope (Model: CFR-1401i):

Figure 8: Visual representation of key specifications for the Crossfire HD 1-4x24 Riflescope.

Opinberu vörumyndbandi lokiðview

Ábyrgð og stuðningur

Ábyrgð á Vortex VIP

Your Vortex Crossfire HD riflescope is covered by the Vortex VIP (Very Important Promise) Warranty. This is an unlimited, unconditional, lifetime warranty. Vortex will repair or replace your product in the event it becomes damaged or defective. This warranty is fully transferable and does not cover loss, theft, deliberate damage, or cosmetic damage that does not hinder the product's performance.

Þjónustudeild

For warranty service, technical assistance, or any questions regarding your riflescope, please visit the official Vortex Optics website or contact their customer service department directly. Contact information can typically be found on the Vortex websíðuna eða í vöruumbúðunum.
