1. Inngangur
This manual provides instructions for the safe and efficient use of your INIU 45W 20000mAh Power Bank with built-in USB-C cable and the included 240W USB-C fast charging cables. Please read this manual thoroughly before using the product and retain it for future reference.
2. Innihald pakka
Gakktu úr skugga um að allir hlutir séu til staðar í pakkanum þínum:
- INIU 45W 20000mAh Power Bank with Built-in USB-C Cable (x1)
- 240W Fast Charging USB-C to USB-C Cable (x2)
- Notendahandbók (þetta skjal)

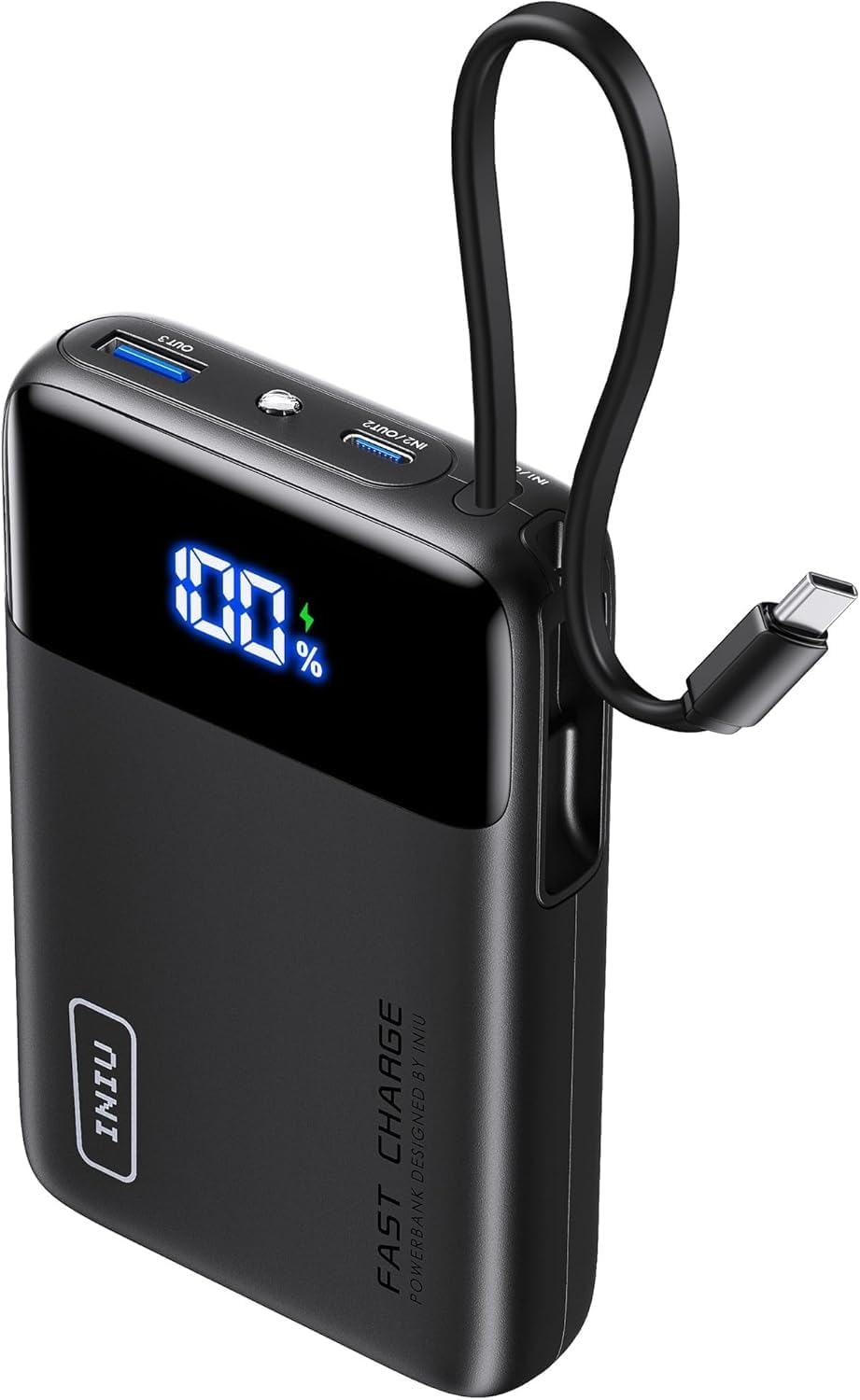

Image: The INIU 45W 20000mAh Power Bank, showing its compact design and integrated USB-C cable. The digital display shows "100%".
Image: Two INIU 240W USB-C to USB-C fast charging cables, coiled, highlighting their robust design and "FAST CHARGE 240W" branding.
3. Vöru lokiðview
The INIU 45W 20000mAh Power Bank is a portable charging solution designed for various USB-C compatible devices. It features a built-in USB-C cable for convenience and a digital display for battery percentage. The included 240W USB-C cables support ultra-fast charging for compatible devices.
3.1 Power Bank Features
- Stærð: 20000mAh
- Úttaksstyrkur: Allt að 45W
- Innbyggður kapall: Integrated USB-C cable for direct device charging.
- Stafrænn skjár: Sýnir prósentu eftirstandandi rafhlöðutage.
- Inntaks-/úttaksport: Additional USB-C and USB-A ports for versatile charging.
3.2 240W USB-C Cable Features
- Kraftafhending: Supports up to 240W fast charging.
- Ending: Constructed with a durable nylon braided exterior.
- Lengd: 6.6ft (2 meters) for extended reach.
4. Uppsetning
4.1 Hleðsla rafmagnsbankans
Before initial use, fully charge the power bank. Use a compatible USB-C wall charger (not included) and one of the provided 240W USB-C cables or the built-in USB-C cable to connect the power bank's input port to a power source.
- Connect one end of a USB-C cable to the power bank's input port (or use the built-in cable).
- Connect the other end of the USB-C cable to a USB-C wall charger.
- Stingdu hleðslutækinu í samband við rafmagnsinnstungu.
- The digital display on the power bank will show the charging progress. It is fully charged when the display shows "100%".
Note: For optimal charging speed of the power bank, use a fast charging wall adapter.
5. Notkunarleiðbeiningar
5.1 Charging Devices with the Power Bank
The power bank can charge various devices using its built-in USB-C cable or its additional USB-C and USB-A output ports.
- Með því að nota innbyggða USB-C snúruna:
- Pull out the built-in USB-C cable from its storage slot.
- Connect the USB-C end directly to your compatible device's charging port.
- Rafhlaðan mun sjálfkrafa byrja að hlaða tækið þitt.
- Using External USB-C or USB-A Cables:
- Connect one end of a charging cable (e.g., one of the provided 240W USB-C cables) to an output port on the power bank (USB-C or USB-A).
- Tengdu hinn endann á snúrunni við hleðslutengi tækisins.
- Rafhlaðan mun sjálfkrafa byrja að hlaða tækið þitt.
Stafræni skjárinn mun sýna hlutfall rafhlöðunnar sem eftir ertage of the power bank during device charging.
Image: Illustration showing an iPhone 15 charging to 71% and a Samsung S24 Ultra charging to 84% in 30 minutes using the 240W USB-C cable.
Image: A MacBook Pro 16" (2022) charging to 88% in 30 minutes using the INIU 240W cable, compared to 49% with a 100W cable.
5.2 Using the 240W USB-C Cables
The included 240W USB-C to USB-C cables are designed for high-speed charging of compatible devices. They can be used with the power bank or with a separate USB-C wall charger.
- Connect one end of the 240W USB-C cable to a compatible power source (e.g., a 240W wall adapter, or the power bank's USB-C output port).
- Tengdu hinn endann á snúrunni við USB-C hleðslutengi tækisins.
- Ensure both the power source and the device support the desired charging wattage fyrir bestu frammistöðu.
Image: Diagram illustrating the compatibility of the 240W USB-C cable with various devices and their respective power requirements, including VR headsets (240W), MacBook Pro (140W/100W), and smartphones (60W).
Note: These cables are USB 2.0 USB-C to USB-C charging cables and do not support Thunderbolt or video/media output.
6. Viðhald
6.1 Þrif
- Gakktu úr skugga um að rafmagnsbankinn sé aftengdur öllum aflgjöfum og tækjum áður en hann er þrifinn.
- Wipe the surface of the power bank and cables with a soft, dry, lint-free cloth.
- Notið ekki slípiefni, leysiefni eða efnafræðileg efni.
6.2 Geymsla
- Store the power bank and cables in a cool, dry place, away from direct sunlight and extreme temperatures.
- Forðist að geyma í umhverfi með mikilli raka.
- If storing for an extended period, charge the power bank to approximately 50-75% every 3 months to maintain battery health.
Image: Depiction of the "FLYWEAVE Nylon Cable" highlighting its pet-proof design and "Multiple Protections" to prevent damage and ensure longevity.
Image: A hand connecting the INIU 240W USB-C cable to a smartphone, with text indicating the cable has passed over 45,000 bend tests, contrasting with a damaged "Other" cable.
7. Bilanagreining
| Vandamál | Möguleg orsök | Lausn |
|---|---|---|
| Rafmagnsbanki hleðst ekki | Low battery; faulty cable; incompatible charger; loose connection. | Ensure the power bank has sufficient charge. Try a different USB-C cable. Use a compatible USB-C wall charger. Check all connections. |
| Tæki hleðst ekki frá rafmagnsbanka | Power bank low on charge; faulty cable; device incompatibility; loose connection. | Recharge the power bank. Try a different charging cable. Ensure your device is compatible with USB-C or USB-A charging. Check all connections. |
| Hægur hleðsluhraði | Cable not supporting high wattage; charger not supporting high wattage; device limitation. | Ensure you are using the provided 240W USB-C cables and a compatible fast charging wall adapter. Verify your device supports fast charging. |
| Stafrænn skjár virkar ekki | Rafbankinn er slökktur; innri bilun. | Press the power button (if available) to activate the display. If the issue persists, contact customer support. |
8. Tæknilýsing
| Eiginleiki | Smáatriði |
|---|---|
| Power Bank getu | 20000mAh |
| Power Bank Output (Max) | 45W |
| Innbyggður snúra | USB-C |
| Kaplar fylgja með | 2x USB-C to USB-C (240W, 6.6ft/2m) |
| Cable Data Transfer | USB 2.0 (Charging only, no video output) |
| ASIN | B0FPLM1QMC |
| Dagsetning fyrst í boði | 13. ágúst 2024 |
9. Ábyrgð og stuðningur
INIU býður upp á leiðandi þjónustu í greininni 3-year iNiu Care for this product. This warranty covers manufacturing defects and quality issues. For any quality issues, INIU will send a new replacement.
For support, please contact INIU customer service through their official website or the platform where you purchased the product. Please have your purchase details and product model number ready.
Image: A graphic indicating "3 YEAR PRODUCT CARE" with the INIU logo, emphasizing the extended warranty.
10. Mikilvægar öryggisupplýsingar
- Ekki láta rafmagnsbankann verða fyrir miklum hita (yfir 60°C/140°F eða undir 0°C/32°F), beinu sólarljósi eða eldi.
- Ekki láta rafmagnsbankann verða fyrir vatni eða öðrum vökva.
- Do not disassemble, modify, or attempt to repair the power bank or cables.
- Geymið þar sem börn ná ekki til.
- Avoid dropping or subjecting the power bank to heavy impacts.
- Notið aðeins vottaðar og samhæfar hleðslusnúrur og millistykki.
- If the power bank swells, emits an odor, or becomes excessively hot, discontinue use immediately and contact customer support.
- Fargið rafhlöðunni samkvæmt gildandi reglum um rafeindaúrgang.
