Inngangur
Þakka þér fyrir kaupinasing the FREQUENT BUBBLES Rechargeable Bubble Machine Model 8820. This manual provides essential information for the safe and efficient operation of your device. Please read it thoroughly before use and retain it for future reference.
Öryggisupplýsingar
- VIÐVÖRUN: Hentar ekki börnum yngri en 3 ára vegna smáhluta.
- This product has been CPSC CE tested for safety.
- Use only the recommended bubble solution or a 1:4 concentrate to water mixture.
- Do not submerge the machine in water.
- Geymið fjarri opnum eldi eða hitagjöfum.
- Ensure the USB-C charging port is dry before charging.
Hvað er í kassanum
Staðfestið að allir hlutir séu til staðar:
- 1 x kúlavél
- 1 x fjarstýring
- 2 x AA rafhlöður (fyrir fjarstýringu)
- 2 x Bubble Solution Concentrates (4.4oz each)
- 1 x USB-C hleðslusnúra
Uppsetning
- Charge the Bubble Machine: Connect the provided USB-C cable to the machine and a suitable USB power adapter (not included). The red indicator light will be ON during charging and will turn OFF when fully charged (approximately 1 hour).
Image: The bubble machine connected to a USB-C charger, with a red light indicating it is charging.
- Settu rafhlöður fyrir fjarstýringu: Open the battery compartment on the back of the remote control and insert 2 AA batteries, ensuring correct polarity.

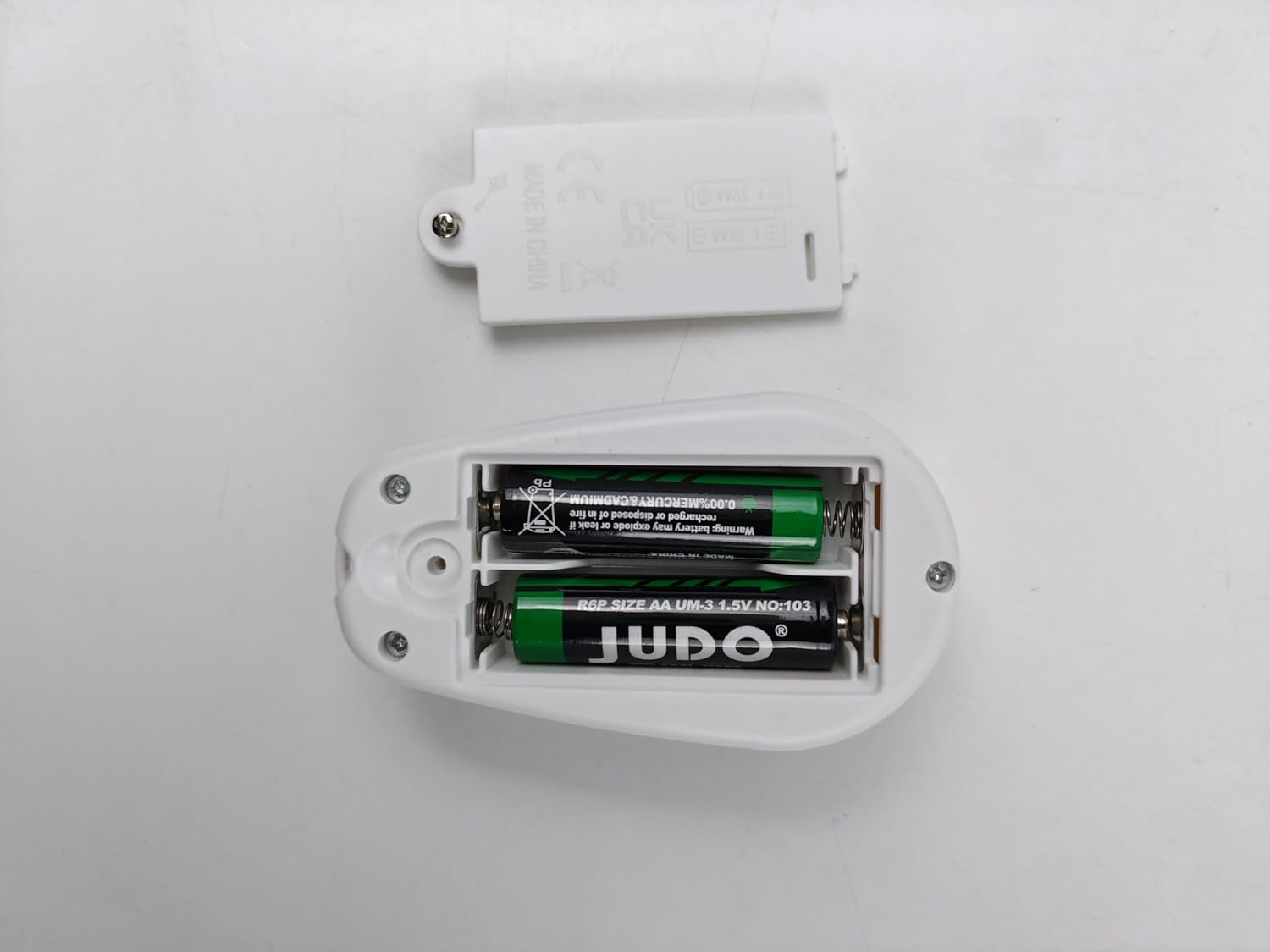

Image: The remote control with its battery cover removed, showing two AA batteries correctly installed.
- Undirbúið loftbólulausn: Mix one 4.4oz bubble concentrate bottle with 4 parts water (1:4 ratio) in a separate container. Pour the mixed solution into the bubble machine's 420ml tank using the funnel.
Image: A visual guide demonstrating how to mix the bubble concentrate with water at a 1:4 ratio and then pour it into the bubble machine's reservoir.
Notkunarleiðbeiningar
Aðgerð með einum hnappi
The bubble machine features a single power button for basic functions:
- 1. þrýstingur: Activates LED light mode only.
- 2. Pressa: Activates LED light and bubble blowing mode.
- Þriðja pressa: Activates rotation mode (with LED and bubbles).
- 4. Pressa: Powers off the machine.
Image: Diagram illustrating the four modes accessible via successive presses of the main power button.
Rekstur fjarstýringar
The remote control offers more precise command over the bubble machine's features:
- Bubble hnappur: Toggles bubble production on or off.
- Aflhnappur: Instantly turns off all functions and enters standby mode. The machine can be restarted within 10 minutes.
- Snúningshnappur:
- Press once for 90-degree rotation.
- Press twice for 360-degree continuous rotation.
- Press three times to turn off rotation.
- Ljóshnappur: Cycles through LED light effects: Rainbow (all colors blending) → Seven-color flash → Single color selection (7 individual colors).

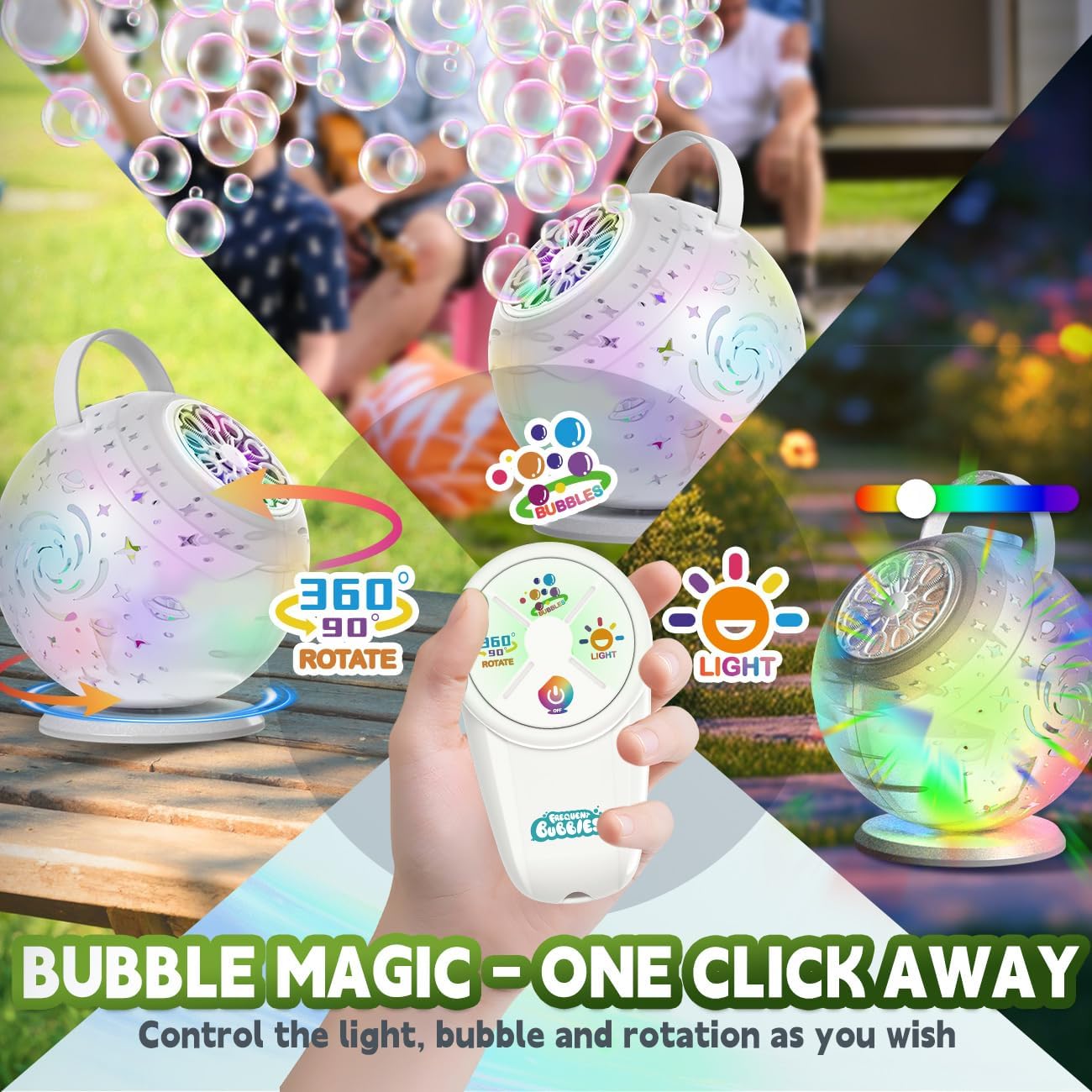

Image: The remote control displaying its buttons for controlling light, bubble, and rotation functions.
Lögun yfirview
- Massive Bubble Output: The 10-hole design generates a continuous stream of large bubbles.
- Dazzling LED Lights: Choose from 3 light modes: cycling through 7 colors, blending all 7 colors, or selecting a single color.
- Sjálfvirkur snúningur: The machine can rotate 90° or 360° to spread bubbles widely.
Viðhald
- After each use, unplug the machine and empty any remaining bubble solution from the tank.
- Wipe the exterior of the machine with a dry cloth.
- To prevent clogging, it is recommended to rinse the bubble wands and solution reservoir with clean water after extended use. Allow to air dry completely before storage.
- Store the bubble machine in a cool, dry place away from direct sunlight.
Úrræðaleit
| Vandamál | Möguleg orsök | Lausn |
|---|---|---|
| No bubbles are produced. |
|
|
| Vélin kviknar ekki. |
|
|
| Fjarstýring virkar ekki. |
|
|
Tæknilýsing
- Gerðarnúmer: 8820
- Vörumál: 5 x 4 x 7 tommur
- Þyngd hlutar: 1.9 pund
- Aflgjafi: Endurhlaðanleg litíum-jón rafhlaða (innifalin)
- Hleðsluport: USB-C
- Hleðslutími: Um það bil 1 klst
- Rekstrartími: Up to 45-60 minutes (depending on mode)
- Bubble Solution Tank Capacity: 420ml
- Rafhlöður í fjarstýringu: 2 x AA (innifalið)
- Ráðlagður aldur: 36 mánuðir - 15 ár
Ábyrgð og stuðningur
Specific warranty information is not provided in the product details. For any support inquiries or issues not covered in this manual, please refer to your purchase documentation or contact the retailer where the product was purchased.
