GardenJoy 21V Cordless Electric Snow Shovel SS1 User Manual

1. Inngangur

This manual provides essential instructions for the safe and effective operation, assembly, and maintenance of your GardenJoy 21V Cordless Electric Snow Shovel. Please read this manual thoroughly before using the product and retain it for future reference.

Almennar öryggisupplýsingar

• Always wear appropriate personal protective equipment, including eye protection and sturdy footwear, when operating the snow shovel.
• Haltu höndum, fótum og fötum frá hreyfanlegum hlutum.
• Ensure the work area is clear of debris, rocks, or other objects that could be thrown by the snow shovel.
• Do not operate the snow shovel in areas where children or pets are present.
• Never leave the snow shovel unattended while it is running.
• Aftengdu rafhlöðuna áður en viðhald eða þrif eru framkvæmd.

2. Innihald pakka

Verify that all items are present in the package before assembly. If any parts are missing or damaged, contact customer support.

• Cordless Electric Snow Shovel Unit
• 21V 4.0Ah Li-ion Battery (quantity may vary, typically one or two)
• Rafhlaða hleðslutæki
• Stillanlegt hjálparhandfang
• Leiðbeiningarhandbók

Figure 2.1: Included components of the snow shovel. This image displays the main snow shovel unit, the handle assembly, a battery, and a charger, along with the instruction manual.

3. Samsetningarleiðbeiningar

The GardenJoy Cordless Electric Snow Shovel is designed for quick and intuitive assembly. Follow these steps to prepare your unit for use.

3.1 Attaching the Handle Assembly

1. Align the lower shaft of the handle assembly with the connection point on the main snow shovel unit.
2. Push the shaft firmly into the unit until it clicks into place, ensuring a secure connection.
3. Tighten any locking mechanisms on the shaft to prevent rotation or detachment during use.

3.2 Uppsetning hjálparhandfangsins

1. Slide the auxiliary handle onto the upper shaft of the main handle assembly.
2. Position the auxiliary handle to a comfortable operating height.
3. Secure the auxiliary handle by tightening the provided knob or fastener.

3.3 Rafhlaðan sett í

1. Ensure the snow shovel is turned off and the safety switch is disengaged.
2. Align the battery with the battery compartment on the main handle.
3. Renndu rafhlöðunni inn í hólfið þar til hún smellpassar.

Figure 3.3: The battery slides into the handle for power. This image shows the battery compartment and the dual safety switch mechanism.

4. Rafhlaða hleðsla

Before first use, fully charge the battery. Always use the provided charger for optimal performance and safety.

1. Connect the charger to a standard electrical outlet. The indicator light on the charger will illuminate.
2. Plug the charger's output connector into the charging port on the battery.
3. Allow the battery to charge until the charger's indicator light signals a full charge (e.g., changes from red to green).
4. Þegar hleðslutækið er fullhlaðið skaltu aftengja það frá rafhlöðunni og síðan frá rafmagnsinnstungunni.

Rafhlöðueiginleikar

• The 21V 4.0Ah Li-ion battery provides approximately 15-25 minutes of runtime per charge.
• Features multi-protection against overcurrent, over-discharge, and overcharge.
• Designed to operate effectively in temperatures ranging from -15°C to 10°C.

Figure 4.2: The 21V 4.0Ah Li-ion battery is equipped with multiple protection features to ensure safe and reliable operation.

5. Notkunarleiðbeiningar

Fylgdu þessum skrefum til að fjarlægja snjó á öruggan og árangursríkan hátt.

5.1 Að ræsa snjóskófluna

1. Gakktu úr skugga um að rafhlaðan sé fullhlaðin og örugglega sett í.
2. Ýttu á og haltu inni öryggishnappinum sem staðsettur er á handfanginu.
3. While holding the safety button, squeeze the trigger switch to start the motor. Release the trigger to stop the motor.

Figure 5.1: The safety button must be pressed before engaging the trigger to start the snow shovel, preventing accidental operation.

5.2 Snow Clearing Techniques

• Push the snow shovel forward at a steady pace, allowing the auger to clear the snow.
• The shovel can clear snow up to 6.3 inches deep and 12.5 inches wide in a single pass.
• Snow can be thrown up to 27 feet away.
• The discharge chute angle can be adjusted ±45° left/right for precise snow placement.
• This snow shovel is suitable for clearing driveways, sidewalks, steps, patios, and other small to medium-sized areas. It performs well on wet, heavy, dry, and slushy snow.

Figure 5.2: The rotating plate allows for effortless adjustment of the snow throwing angle.

Figure 5.3: The snow shovel clears a path 12.5 inches wide and up to 6.3 inches deep, with a capacity of 375 lbs per minute.

6. Viðhald

Reglulegt viðhald tryggir langlífi og bestu mögulegu afköst snjóskóflunnar.

• Þrif: After each use, disconnect the battery and clean any snow, ice, or debris from the auger housing and discharge chute. Use a damp klút til að þurrka af ytra byrðina. Notið ekki sterk efni.
• Geymsla: Store the snow shovel in a dry, protected area away from direct sunlight and extreme temperatures. Ensure the battery is removed and stored separately in a cool, dry place.
• Umhirða rafhlöðu: For long-term storage, charge the battery to approximately 50% capacity. Recharge every 3-6 months to maintain battery health.

7. Bilanagreining

Vísað er til þessa kafla varðandi algeng vandamál og lausnir á þeim.

8. Tæknilýsing

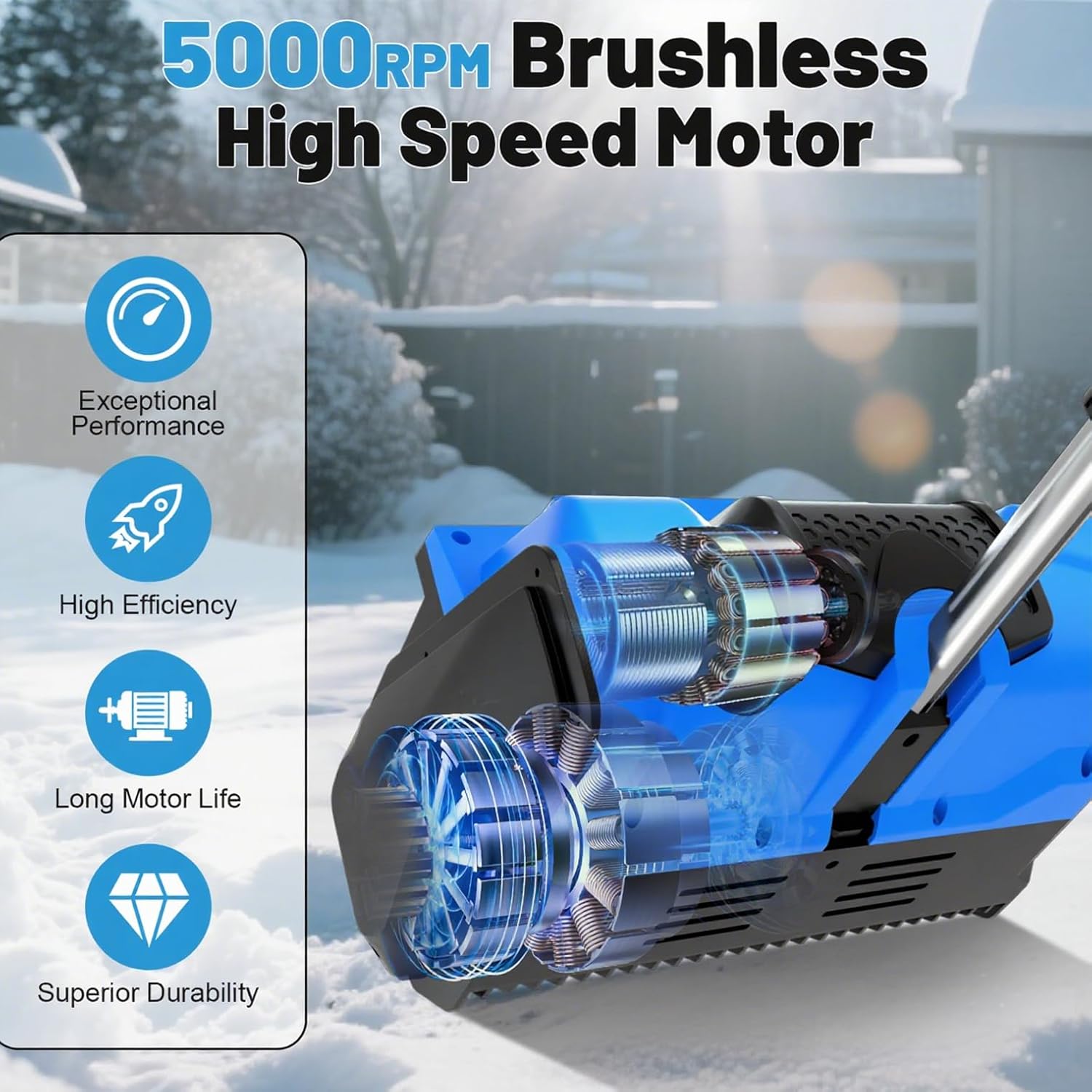

Figure 8.1: The snow shovel is equipped with a 5000RPM brushless motor, offering exceptional performance, high efficiency, long motor life, and superior durability.

9. Ábyrgð og stuðningur

For warranty information, technical support, or to order replacement parts, please refer to the contact information provided with your product packaging or visit the official GardenJoy webvefsíða. Geymið kaupkvittunina sem sönnun fyrir kaupunum.
