MiLESEEY XTAPE1 stafrænt málband með leysigeisla, leiðbeiningarhandbók

Inngangur

The MiLESEEY XTAPE1 is an advanced measuring tool combining a digital tape measure with a laser distance meter. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your device.

Image: The MiLESEEY XTAPE1 device, showcasing its digital display, laser emitters, and tape measure blade.

Helstu eiginleikar:

• Dual Measurement Modes: Combines a 12ft digital tape measure and a 330ft laser distance meter.
• Modular hönnun: Allows for quick replacement of the tape measure module.
• Mikil nákvæmni: Achieves up to ±1/32" accuracy with Super OptiTracking technology.
• Green Aligning Laser: Provides exceptional brightness and extended range for precise alignment.
• Ítarlegar aðgerðir: Includes calculations for distance, area, volume, P2P measurements, incremental measurements, and 1/N line split.
• Samstilling forrita: Connects to a dedicated app for data transmission and annotation.
• Varanlegur smíði: IP54 rated for dust and splash resistance, with a 1,500mAh rechargeable lithium battery.
• Live Angle Display: Measures included angles using the green aligning laser.

Innihald pakka

Gakktu úr skugga um að allir hlutir séu til staðar í pakkanum:

• 1 x XTAPE1 Digital Tape Measure
• 1 x Notendahandbók
• 1 x ól
• 1 x geymslupoki
• 1 x USB C snúru

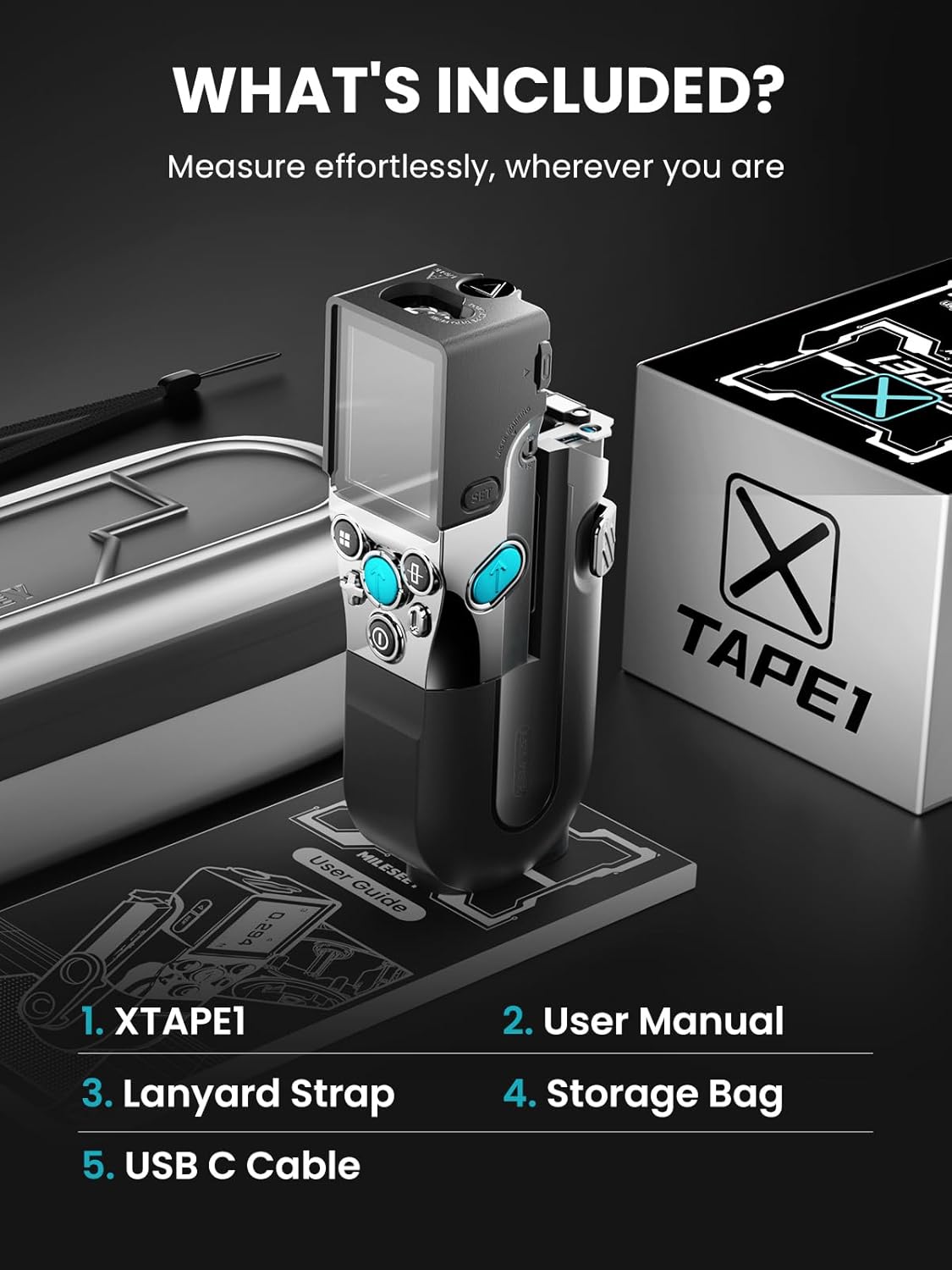

Image: Illustration of the XTAPE1 device, user manual, lanyard strap, storage bag, and USB-C cable included in the product package.

Uppsetning

1. Hleður tækið

The XTAPE1 is equipped with a 1,500mAh rechargeable lithium battery. Before first use, fully charge the device using the provided USB-C cable and a compatible power adapter (not included).

• Connect the USB-C cable to the charging port on the device.
• Tengdu hinn enda snúrunnar við USB aflgjafa.
• Rafhlöðuvísirinn á skjánum mun sýna hleðslustöðu.

2. Kveikt/slökkt

• Til að kveikja á, ýttu á og haltu rofanum inni þar til skjárinn kviknar.
• Til að slökkva á, ýttu á og haltu rofanum inni þar til skjárinn slekkur á sér.

3. Einingaval

The device supports various measurement units (Imperial, Metric). Refer to the on-screen menu to select your preferred unit (feet, inches, meters, millimeters, centimeters).

Image: The XTAPE1 display showing various distance unit options for selection, including feet, meters, and inches.

4. Samstilling forrita

The XTAPE1 can connect to a dedicated mobile application for enhanced functionality, including data transmission and annotation.

• Download the MiLESEEY app from your device's app store.
• Virkja Bluetooth í snjallsímanum eða spjaldtölvunni.
• Follow the in-app instructions to pair your XTAPE1 device.

Notkunarleiðbeiningar

1. Digital Tape Measure Function

Extend the tape measure blade to take measurements. The digital display will show the measurement in real-time. The tape features a strong magnetic, four-side movable hook and double-sided markings for versatility.

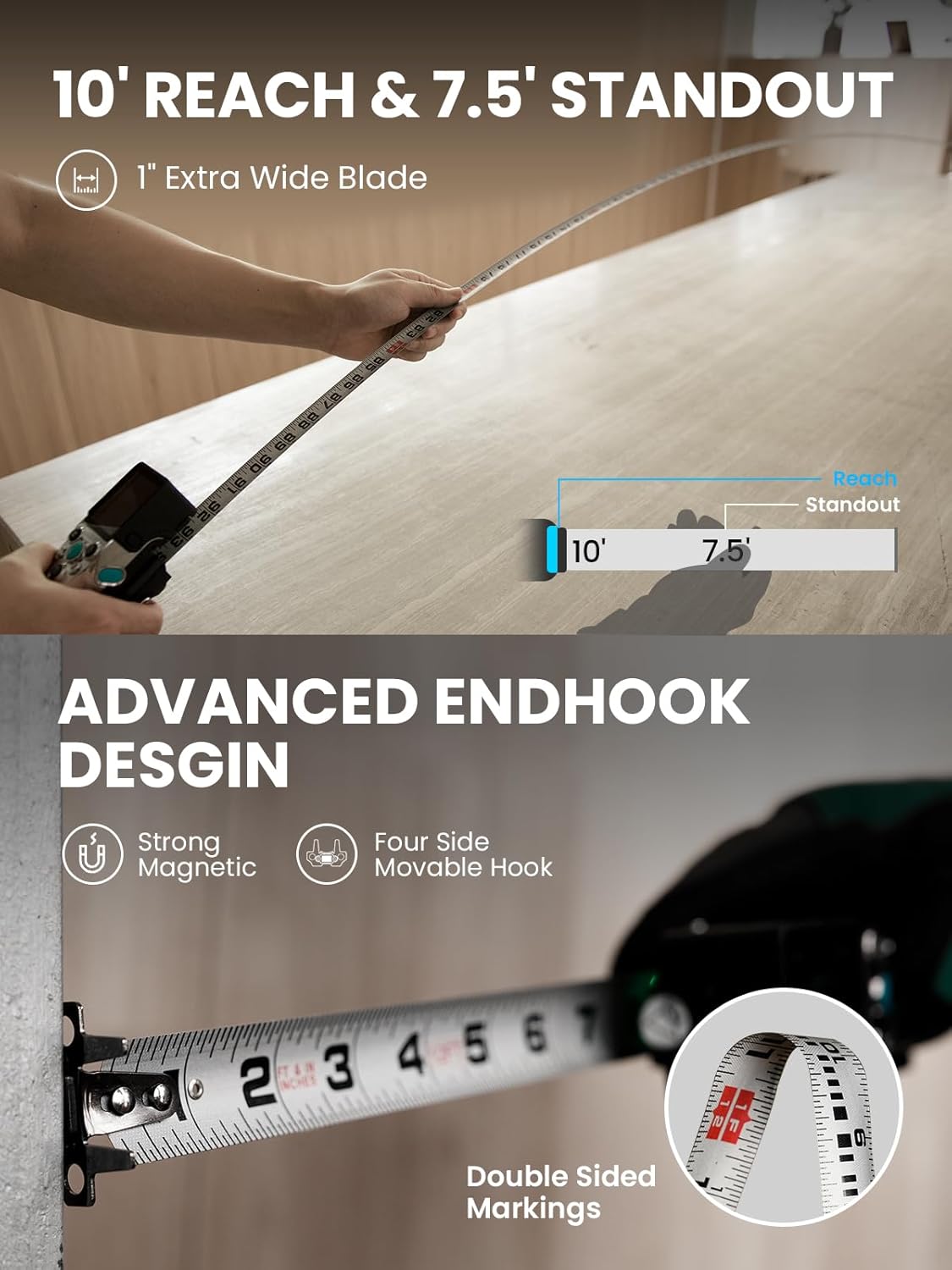

Image: A user extending the 12ft tape measure blade of the XTAPE1, with the digital display showing the measurement. The image also highlights the 10-foot reach and 7.5-foot standout of the tape, along with its advanced endhook design featuring strong magnets and a four-side movable hook.

2. Laser Distance Meter Function

For longer distances, use the integrated laser distance meter. The laser can measure up to 330ft with an accuracy of ±1/16".

• Point the laser emitter towards the target surface.
• Press the measurement button to activate the laser and obtain a reading.
• The device allows selection of reference points (front, back, or from the tape line) for laser measurements.

Mynd: Tveir fyrrverandiamples of the XTAPE1 in use. The top shows the digital tape measure providing a reading with ±1/32" accuracy. The bottom shows the laser measure function projecting a red laser line onto a wall, displaying a measurement with ±1/16" accuracy.

3. Green Aligning Laser

The XTAPE1 features a bright green laser for alignment tasks, ideal for cross-surface alignment and precise marking.

• Activate the green laser through the device's menu.
• Use the laser line as a visual guide for leveling or aligning objects.
• The green laser also enables the Live Angle Display feature for measuring angles.

Image: The XTAPE1 mounted on a tripod, projecting a bright green laser line for alignment. The image highlights the laser's 1/16 inch accuracy at 16 feet and its 270-degree extended range.

4. Advanced Measuring Functions

• Incremental Measuring: Start measurements from "0" at any position on the tape. This allows for easy calculation-free measurements of successive segments.


Image: A demonstration of the XTAPE1's incremental measuring feature, showing how the device can be reset to "0" at any point along the tape to measure subsequent segments without manual calculation.

• 1/N Line Split: Automatically divides a line into N equal segments, useful for evenly spacing objects or finding the center of a line.


Image: The XTAPE1 demonstrating the 1/N line split function, showing how it can divide a measured length into equal segments, useful for precise layout tasks.

• Quick Distance Estimation (P2P): Measure distances between any two points from a single location using P2P technology.

Image: A user operating the XTAPE1 to perform a P2P (Point-to-Point) measurement, estimating the distance between two points on a ceiling from a single standing position.
• Innri mælingar: Acquire inside lengths with rear reference, offering fast and accurate internal measurements.


Image: The XTAPE1 being used to take an internal measurement, with the device's rear serving as the reference point for accurate readings within a confined space.

5. Skjárstillingar

The XTAPE1 offers various display options for improved readability and user preference.

• Ambidextrous Reading / Screen Rotation: The display can rotate automatically or manually to accommodate left-handed or right-handed use.


Image: The XTAPE1 display demonstrating its screen rotation feature, allowing for ambidextrous reading by adjusting the orientation of the measurement readout.

• Large Font Mode: Activate large font mode for easier viewing of measurements.


Image: A close-up of the XTAPE1 display showing the large font mode, which enhances readability of measurement values.

• Multi-Color Tape Display: Customize the visual representation of the tape on the digital screen.

Image: The XTAPE1 display showing various options for customizing the visual appearance of the digital tape, including different color schemes and text styles.

Viðhald

Proper maintenance ensures the longevity and accuracy of your MiLESEEY XTAPE1.

• Þrif: Wipe the device with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure the laser apertures and display remain clean for optimal performance.
• Umhirða rafhlöðu: Recharge the lithium battery regularly, even if the device is not in frequent use, to maintain battery health. Avoid fully discharging the battery for extended periods.
• Geymsla: Store the device in the provided storage bag in a cool, dry place, away from direct sunlight and extreme temperatures.
• Tape Blade Replacement: The modular design allows for replacement of the tape blade if it becomes damaged or worn. Refer to the specific instructions provided with replacement blades for proper installation.
• Umhverfisvernd: The XTAPE1 has an IP54 rating, providing protection against dust ingress and splashing water. While durable, avoid submerging the device in water or exposing it to heavy rain.

Image: A close-up of the XTAPE1's tape blade and housing, emphasizing its durable construction with AISI 1060 Carbon Steel Blade, Magnesium-Aluminum Frame, and DuraShield Hardshell, designed to withstand harsh conditions.

Úrræðaleit

If you encounter issues with your XTAPE1, refer to the following common problems and solutions:

Tæknilýsing

Ábyrgð og stuðningur

Upplýsingar um ábyrgð

MiLESEEY provides a 180-day no-hassle replacement policy for any quality problems. This ensures that your device is free from defects in materials and workmanship under normal use.

Þjónustudeild

For technical assistance, troubleshooting, or warranty claims, please contact MiLESEEY customer support. They offer professional technical support and solutions with a 7*24H online rapid response.

• Stuðningur á netinu: Refer to the official MiLESEEY webvefsíða fyrir stuðningsúrræði og upplýsingar um tengiliði.
• Stuðningur við tölvupóst: Contact support via email for detailed inquiries.
• Símastuðningur: Available during business hours for immediate assistance.

Please have your model number (XTAPE1) and purchase information ready when contacting support.
