Leiðbeiningarhandbók fyrir þráðlausa ryksugu Soniclean STV-3

Inngangur

This manual provides essential information for the safe and efficient operation and maintenance of your Soniclean STV-3 Cordless Vacuum Cleaner with Auto-Empty Base Station. The STV-3 is a 3rd generation cordless stick vacuum designed for versatile cleaning with advanced dust collection and H13 HEPA filtration.

Öryggisupplýsingar

Vinsamlegast lesið allar öryggisviðvaranir og leiðbeiningar áður en þetta tæki er notað. Ef ekki er farið eftir viðvörunum og leiðbeiningunum getur það valdið raflosti, eldsvoða og/eða alvarlegum meiðslum.

Almennar öryggisráðstafanir:

• Ekki nota utandyra eða á blautu yfirborði.
• Ekki leyfa að nota sem leikfang. Nauðsynlegt er að fylgjast vel með þegar börn eru notuð eða nálægt þeim.
• Notið aðeins eins og lýst er í þessari handbók. Notið aðeins fylgihluti sem framleiðandi mælir með.
• Ekki nota með skemmda snúru eða kló. Ef tækið virkar ekki sem skyldi, hefur dottið, skemmst, skilið eftir utandyra eða dottið í vatn skal skila því til þjónustumiðstöðvar.
• Ekki toga eða bera í snúru, nota snúruna sem handfang, loka hurð á snúru eða draga snúruna um skarpar brúnir eða horn. Ekki keyra tækið yfir snúruna. Geymið snúruna frá heitum flötum.
• Ekki taka úr sambandi með því að toga í snúruna. Til að taka úr sambandi skaltu grípa í klóna, ekki snúruna.
• Ekki meðhöndla kló eða tæki með blautum höndum.
• Ekki setja neinn hlut inn í op. Ekki nota með stíflað opi; Haltu lausu við ryk, ló, hár og allt sem getur dregið úr loftflæði.
• Haltu hári, lausum fötum, fingrum og öllum líkamshlutum fjarri opum og hreyfanlegum hlutum.
• Ekki taka upp neitt sem brennur eða reykir, svo sem sígarettur, eldspýtur eða heita ösku.
• Ekki nota til að taka upp eldfiman eða eldfiman vökva, eins og bensín, eða nota á svæðum þar sem þeir geta verið til staðar.
• Ekki skal taka upp eitrað efni (t.d. klórbleikiefni, ammóníakhreinsiefni, niðurfallshreinsiefni).
• Ekki nota í lokuðu rými þar sem gufa er frá olíumálningu, málningarþynni, sumum mölvarnarefnum, eldfimu ryki eða öðrum sprengifimum eða eitruðum gufum.
• Ekki nota til að taka upp harða eða hvassa hluti eins og gler, nagla, skrúfur, peninga o.s.frv.
• Ekki nota án þess að rykpoki og/eða síur séu á sínum stað.
• Komið í veg fyrir óviljandi gangsetningu. Gakktu úr skugga um að rofinn sé í off-stöðu áður en hann er tengdur við rafhlöðupakka, tekur upp eða ber heimilistækið.
• Taktu rafhlöðupakkann úr tækinu áður en þú gerir breytingar, breytir fylgihlutum eða geymir tæki.

Öryggiseiginleikar:

• The STV-3 can sense if the airflow resistance is too high, indicating a full dust bin or a clog.
• The powerhead features a sensor that detects if an object is caught in the brush roll. These features reduce the chance of damage to the vacuum and maintain optimal performance.

Hvað er í kassanum

Your Soniclean STV-3 package includes the following components:

• Soniclean STV-3 Cordless Vacuum Unit
• Auto-Empty Base Station
• Telescopic Anodized Wand
• 10” Powerhead with Headlight (with a hybrid brush roll for floors + carpets)
• Mini Motorized Powerhead
• 2-í-1 rykbursti
• Sprunguverkfæri
• Rafhlaða (litíum-jón)
• (2) H10 HEPA Filter Bags (for Base Station)
• (1) H13 HEPA Filter (for Vacuum)
• (1) H13 HEPA Filter (for Base Station)

Image: All included components of the Soniclean STV-3 Cordless Vacuum Cleaner and Auto-Empty Base Station.

Uppsetning

Samsetning:

1. Connect the telescopic anodized wand to the main vacuum unit.
2. Attach the desired powerhead (e.g., 10” Powerhead) to the end of the telescopic wand.
3. Ensure the battery is securely inserted into the main vacuum unit.

Base Station Setup and Charging:

The auto-empty base station serves as both a charging dock and an automatic dust disposal unit.

1. Place the base station on a flat, stable surface near a power outlet.
2. Stingdu grunnstöðinni í rafmagnsinnstungu.
3. Dock the assembled STV-3 vacuum cleaner onto the base station. The vacuum will automatically begin charging.
4. The base station will also automatically extract dust from the vacuum's primary dust bin into a disposable H10 HEPA filter bag.

Mynd: Nærmynd view of the auto-empty base station, showing the vacuum unit docked for charging and automatic dust disposal.

Image: The Soniclean STV-3 Cordless Vacuum Cleaner standing upright in its auto-empty base station, ready for storage and charging.

Notkunarleiðbeiningar

Power On/Off and Suction Settings:

The STV-3 features a powerful high-speed BLDC 500W motor with three suction power settings.

1. To power on the vacuum, press the ergonomic button on the display screen.
2. Toggle through low, medium, and high power levels easily using your thumb on the display screen.
3. Select low for light cleaning of floors, upholstery, and delicate surfaces.
4. Select medium or high for deep cleaning of area rugs and heavily soiled areas.

Dust Detection Feature:

The STV-3 includes an optical dust sensor to detect debris.

• When the vacuum is actively picking up debris, the screen will display “Dust Detected”.
• If “Dust Detected” appears, you may need to pass the vacuum over the surface again.
• When the screen illuminates in green, dust is no longer detected, indicating the surface is clean.

Notkun viðhengja:

The STV-3 can be easily converted into a handheld vacuum for versatile cleaning with various attachments.

• 10” Powerhead with Headlight: Ideal for all floor types, including hard floors and carpets, with integrated headlights to illuminate dust.
• Mini Motorized Powerhead: Excellent for cleaning pet hair and debris from upholstery and stairs.
• 2-í-1 rykbursti: Use for delicate surfaces, shelves, and intricate areas.
• Sprunguverkfæri: Tilvalið til að ná í þröng rými, horn og brúnir.

Image: The Soniclean STV-3 Cordless Vacuum Cleaner being used on a carpeted floor, demonstrating its maneuverability.

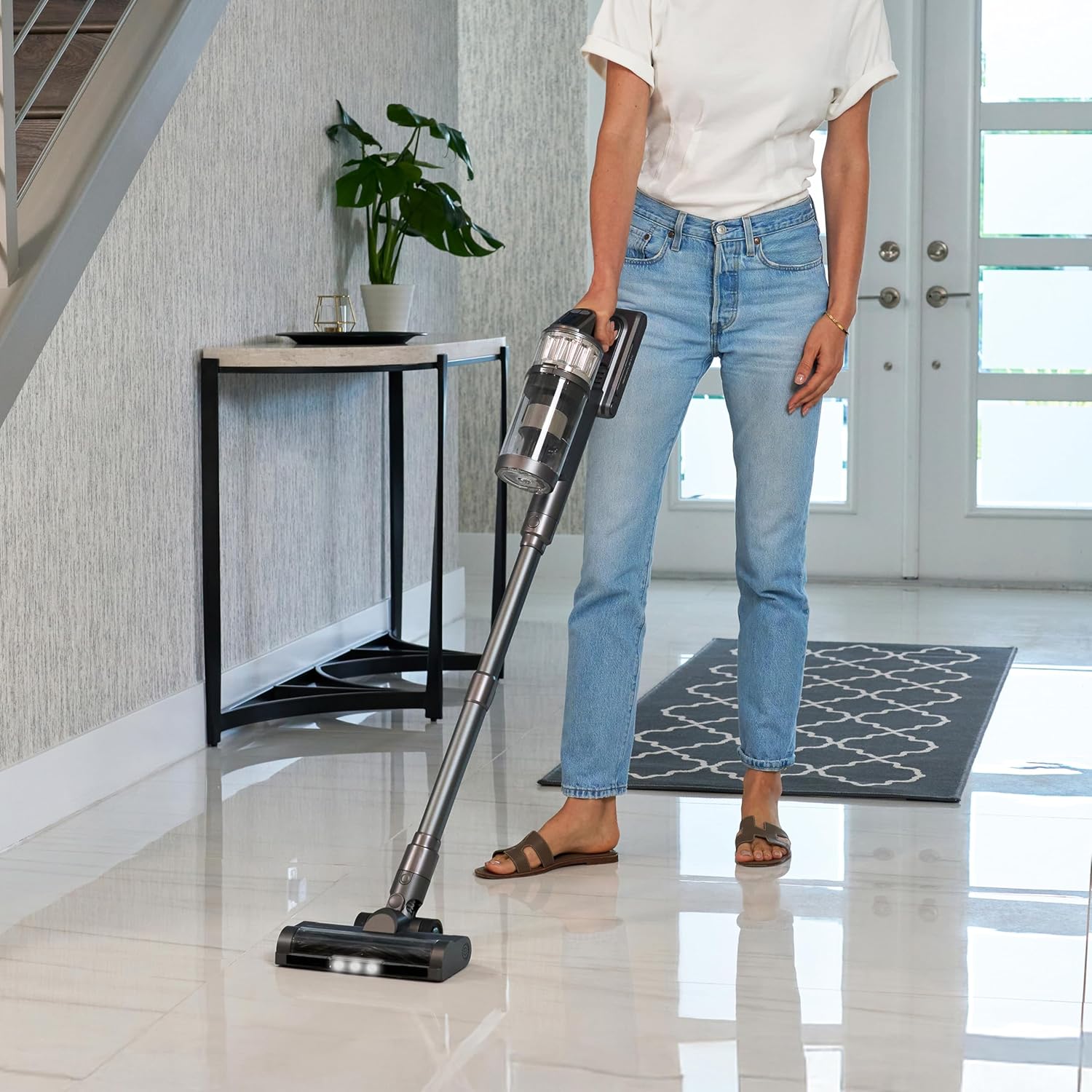

Image: The Soniclean STV-3 Cordless Vacuum Cleaner being used on a hard floor, highlighting its effectiveness on smooth surfaces.

Image: The vacuum in handheld mode, utilizing the crevice tool to clean between sofa cushions.

Image: The vacuum in handheld mode, using the dusting brush attachment to clean a shelf.

Image: The vacuum in handheld mode, demonstrating the mini motorized powerhead for effective cleaning of upholstery.

Viðhald

Hreinlætisleg förgun ryks:

The base station provides a hygienic and mess-free way to dispose of collected dust.

• When the vacuum is docked, the base station automatically extracts dirt from the vacuum's primary dust bin into a disposable H10 HEPA filter bag.
• The base station also cleans the filter screen, cyclones, and the H13 primary filter in the vacuum.
• The base station itself has an H13 HEPA exhaust filter.
• Replace the H10 HEPA filter bag in the base station as needed, or when the indicator light signals it is full.

Síuviðhald:

Regular cleaning and replacement of filters are crucial for maintaining optimal performance and air quality.

• Vacuum H13 HEPA Filter: Periodically remove and clean the H13 HEPA filter from the vacuum unit. Refer to the visual indicators or manufacturer guidelines for cleaning frequency.
• Base Station H13 HEPA Filter: Check and replace the H13 HEPA filter in the base station according to usage and manufacturer recommendations.
• Þrif á burstumúllum: Regularly inspect the powerhead brush rolls for tangled hair or debris. Remove and clean as necessary to prevent reduced performance.

Úrræðaleit

If you encounter any issues with your Soniclean STV-3, please refer to the following common troubleshooting tips:

• Enginn kraftur: Ensure the battery is fully charged and correctly inserted. Check if the base station is properly plugged into a working power outlet.
• Minnkað sog: Check the dust bin for fullness and empty if necessary. Inspect all filters (H13 HEPA in vacuum, H10 HEPA bag in base station) for clogs or excessive dirt and clean/replace them. Check the telescopic wand and powerhead for any blockages.
• Burstarúllan snýst ekki: Check the powerhead for any obstructions or tangled hair around the brush roll. The safety feature may have activated to prevent damage.
• Auto-Empty Function Not Working: Ensure the vacuum is correctly docked on the base station. Check if the H10 HEPA filter bag in the base station is full and needs replacement.

For persistent issues, please contact Soniclean customer support.

Tæknilýsing

Ábyrgð og stuðningur

For warranty information or technical support, please refer to the documentation included with your product or visit the official Soniclean websíða. Geymdu kaupkvittun þína fyrir ábyrgðarkröfur.
