1. Inngangur
This manual provides essential information for setting up, operating, and maintaining your NiPoGi P2-3300U Mini PC. Please read it thoroughly before using the device to ensure optimal performance and longevity.
Yfirview myndbandssýningasing the compact design, AMD Ryzen 3300U processor, memory and storage expansion, multiple display output, various ports, efficient cooling, and diverse usage scenarios of the NiPoGi P2-3300U Mini PC.
Helstu eiginleikar:
- Örgjörvi: AMD Ryzen 3 3300U (up to 3.5GHz, 4 Cores/4 Threads)
- Stýrikerfi: Windows 11 Pro
- Minni: 16GB DDR4 (stækkanlegt upp í 32GB)
- Geymsla: 512GB M.2 2280 SSD (expandable up to 4TB)
- Grafík: Integrated Graphics with 4K@60Hz support
- Skjár úttak: Supports up to 3 screens simultaneously (HDMI 2.0, DisplayPort 1.4, USB 3.2 Gen1 Type-C)
- Tengingar: USB 3.2 x6, USB 3.2 Gen1 Type-C x1, 1000Mbps Wired LAN, Wi-Fi 5GHz, Bluetooth 4.2
- Kæling: Efficient and silent cooling fan system
- Öryggi: TPM 2.0 chip for enhanced data protection
- Hönnun: Ultra-compact and lightweight (approx. 128.2×128.2×44mm), VESA mount compatible
Diagram showing the compact size and key features like 4K output, Windows 11 Pro, 512GB SSD, 16GB DDR4, LAN, Bluetooth 4.2, and WiFi 5.
2. Innihald pakka
Áður en þú heldur áfram með uppsetninguna skaltu ganga úr skugga um að allir hlutir sem taldir eru upp hér að neðan séu innifaldir í pakkanum þínum:
- NiPoGi P2-3300U Mini PC
- Rafmagns millistykki
- HDMI snúru
- VESA Mount
- Screws for VESA Mount
- Notendahandbók
Image showing the package contents, including the mini PC, power adapter, HDMI cable, VESA mount, and user manual.
3. Uppsetningarleiðbeiningar
3.1 Tengja jaðartæki
Identify the various ports on your Mini PC to connect your display, keyboard, mouse, and other devices.
Ítarlegt view of the mini PC's ports, including USB, HDMI, DP, LAN, and Type-C.
- Kraftur: Connect the power adapter to the DC port on the Mini PC and then to a power outlet.
- Skjár: Connect your monitor(s) using the HDMI 2.0, DisplayPort 1.4, or USB 3.2 Gen1 Type-C ports. The Mini PC supports up to three displays simultaneously.
- Lyklaborð og mús: Connect your USB keyboard and mouse to any of the available USB 3.2 ports.
- Net: For a wired connection, connect an Ethernet cable to the RJ45 LAN port. For wireless, the device supports Wi-Fi 5GHz.
- Hljóð: Tengdu heyrnartól eða hátalara við 3.5 mm hljóðtengið.
3.2 Uppsetning VESA-festingar
The Mini PC can be mounted on the back of a VESA-compatible monitor to save desk space.
- Attach the VESA mount bracket to the back of your monitor using the provided screws.
- Slide the Mini PC onto the mounted bracket until it clicks securely into place.
Mini PC mounted on the back of a monitor using a VESA mount.
3.3 Upphafleg ræsing og uppsetning Windows 11 Pro
After connecting all necessary peripherals and power, press the power button to turn on the Mini PC. Follow the on-screen instructions to complete the initial setup of Windows 11 Pro.
4. Notkunarleiðbeiningar
4.1 Grunnaðgerð
The NiPoGi P2-3300U Mini PC is designed for smooth performance across various daily tasks:
- Web Vafra: Enjoy fast and stable internet access with Wi-Fi 5GHz or wired LAN.
- Document Creation: Efficiently work on office applications for documents, spreadsheets, and presentations.
- Netfundir: Participate in video conferences with reliable connectivity.
- Spilun myndbands: Stream 4K content smoothly.
Various usage scenarios: video conferencing, light gaming, data analysis, and movie watching.
4.2 Multitasking and Multi-Display
The AMD Ryzen 3 3300U processor ensures efficient multitasking, allowing you to run multiple applications simultaneously without significant slowdowns.
Multiple application windows open on a screen, illustrating the mini PC's multitasking capabilities.
With support for up to three 4K@60Hz displays, you can expand your workspace for enhanced productivity.

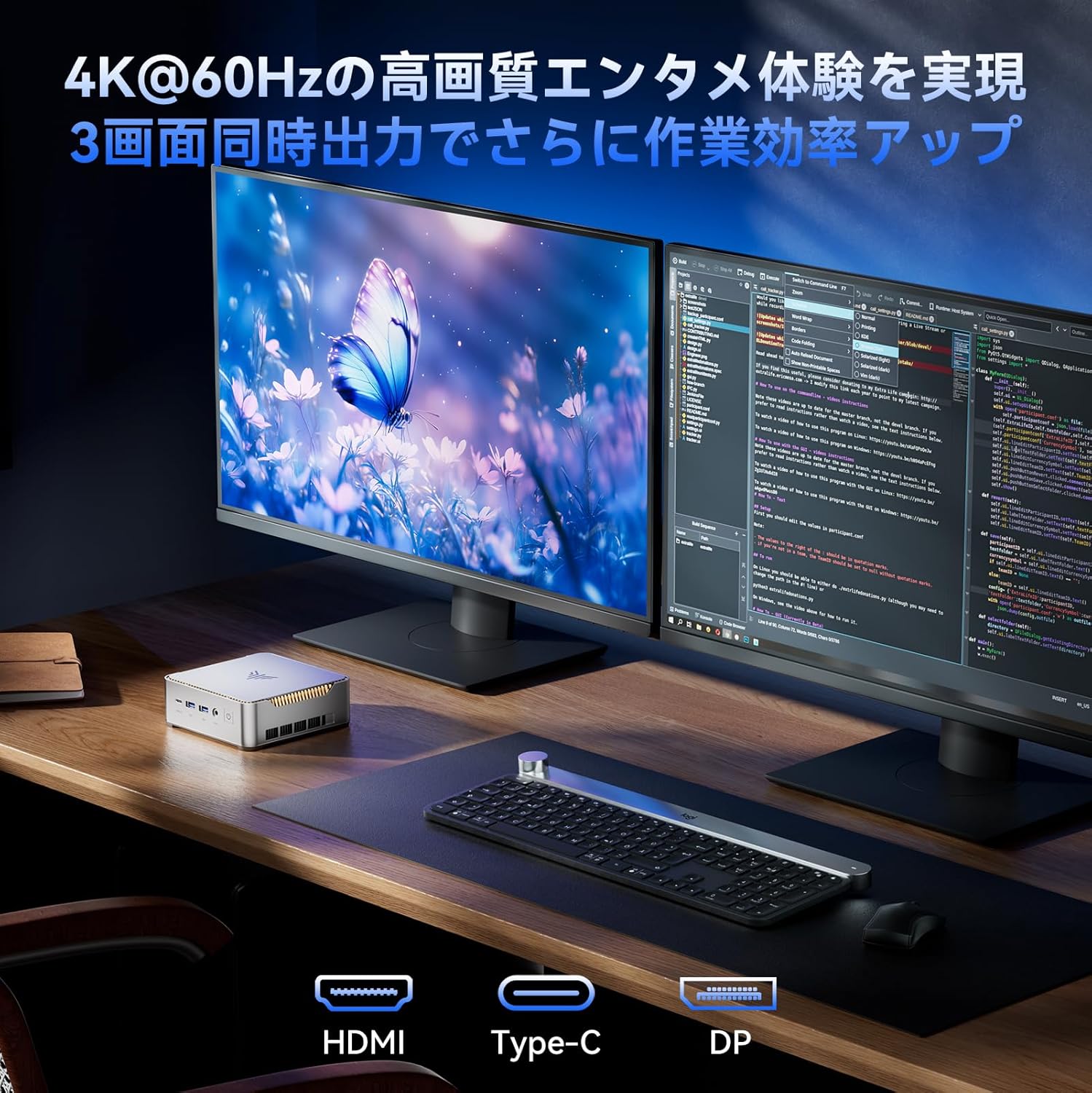

Mini PC connected to multiple monitors, demonstrating multi-display capability.
4.3 Ítarlegar BIOS stillingar
The unlocked BIOS provides access to advanced settings, including:
- Auto-boot: Configure the system to automatically power on when connected to power.
- RTC Wake: Schedule the PC to wake up at a specific time.
- Vakna á staðarneti: Power on the PC remotely over a network connection.
5. Viðhald og uppfærslur
5.1 Skilvirkt kælikerfi
The Mini PC features an efficient and silent cooling fan system to prevent overheating and maintain stable performance even during extended use. The design ensures heat is effectively dissipated from the interior.
Innri view of the mini PC highlighting the cooling fan and heat dissipation system.
Image depicting a user working on the mini PC at night while a child sleeps, emphasizing silent operation.
5.2 Geymsla og minnisútvíkkun
The Mini PC comes with 16GB DDR4 RAM and a 512GB M.2 2280 SSD. Both can be upgraded:
- Minni: Expandable up to 32GB DDR4 SO-DIMM.
- Geymsla: The M.2 2280 SSD can be replaced with a larger capacity drive, up to 4TB.
For detailed instructions on how to access and upgrade these components, please refer to the technical support section or contact customer service.
Diagram illustrating the internal memory (DDR4) and storage (M.2 2280 SSD) expansion capabilities.
6. Bilanagreining
If you encounter any issues with your NiPoGi P2-3300U Mini PC, please try the following general troubleshooting steps:
- Enginn kraftur: Gakktu úr skugga um að rafmagnstengið sé vel tengt bæði við Mini-tölvuna og virka innstungu. Prófaðu aðra innstungu ef þörf krefur.
- Enginn skjár: Verify that the monitor is powered on and the display cable (HDMI, DP, or Type-C) is firmly connected to both the Mini PC and the monitor. Try a different cable or port.
- Jaðartæki ekki greint: Ensure USB devices are properly plugged into the correct ports. Try connecting them to different USB ports.
- Hægur árangur: Close unnecessary applications. Check for available Windows updates. Ensure the cooling vents are not obstructed.
- Netvandamál: For wired connections, check the Ethernet cable and router. For Wi-Fi, ensure you are connected to the correct network and the signal is strong.
Ef vandamálið heldur áfram, vinsamlegast skoðið kaflann um ábyrgð og stuðning til að fá frekari aðstoð.
7. Tæknilýsing
| Eiginleiki | Smáatriði |
|---|---|
| Vörumerki | NiPoGi |
| Gerðarnúmer | P2-3300U-16+512-NEW |
| Vörumál | 128.2 x 128.2 x 44 mm |
| Þyngd hlutar | 1.11 kíló |
| Örgjörvamerki | AMD |
| Tegund CPU | Ryzen 3 3300U |
| CPU hraði | 2.1 GHz (up to 3.5 GHz Max Turbo) |
| Fjöldi örgjörva | 4 |
| RAM Memory Type | DDR4 SDRAM |
| Stærð uppsetts vinnsluminni | 16 GB |
| Hámarks minnisstuðningur | 32 GB |
| Stærð harða disksins | 512 GB |
| Harður diskur Tegund | SSD (M.2 2280) |
| Harða diskviðmót | eSATA (Note: M.2 is NVMe/SATA, eSATA is an external interface, likely a translation error in source data) |
| Grafík hröðun | Samþætt grafík |
| Lýsing á skjákorti | Innbyggt |
| VRAM Type | DDR4 SDRAM |
| Viðmót skjákorta | Innbyggt |
| Upplausn | 3840 x 2160 (4K) |
| USB 3.0 tengi | 6 |
| HDMI tengi | 1 |
| Gerð optísks drifs | Engin |
| Stýrikerfi | Windows 11 Pro |
| Tengingar | Wi-Fi 5, Bluetooth 4.2, 1000Mbps LAN |
| Sérstakir eiginleikar | VESA Support, TPM 2.0 |
8. Ábyrgð og stuðningur
Your NiPoGi P2-3300U Mini PC comes with an 18 mánaða ábyrgð from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. In the event of a defect or malfunction, NiPoGi offers free replacement or return services.
For technical support, warranty claims, or any questions regarding your product, please contact NiPoGi customer service through the official channels provided at the time of purchase or on the NiPoGi websíða. Vinsamlegast hafið vörutegundina og kaupupplýsingar tilbúnar þegar þið hafið samband við þjónustuver.
